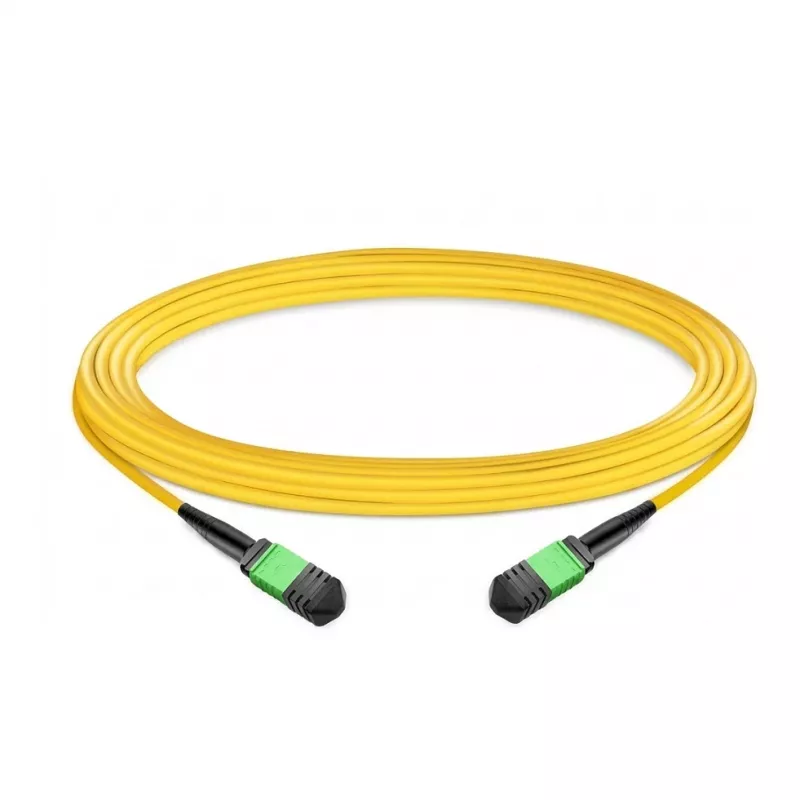

EFB-ELEKTRONIK MTP/APC Female to MTP/APC Female OS2 Single-mode Patch Cable, 12 Fibers, Type B, LSZH, Yellow, 30m

The EFB-ELEKTRONIK MTPF12MTPFOS2-30 is a high-performance fiber optic patch cable designed for demanding data center, SAN, LAN, and telecommunications applications. Featuring MTP/APC female connectors on both ends, this cable supports 12 fibers in a single compact interface, enabling high-density connectivity and efficient cable management. The OS2 single-mode fiber ensures excellent signal integrity over long distances, while the Type B polarity configuration is ideal for parallel optics systems. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, and the yellow color allows for easy identification.

Advantages

This patch cable offers superior insertion loss (≤0.35 dB) and return loss (≥60 dB), ensuring reliable data transmission. The APC (Angled Physical Contact) ferrule design minimizes back reflection, making it suitable for high-speed networks. The 30-meter length provides flexibility in routing between racks and equipment. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, complying with safety regulations.

Suitable for

• Data center interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure
• High-density fiber optic patching

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: OS2 Single-mode
• Fiber Count: 12 Fibers
• Connector A: MTP/APC Female
• Connector B: MTP/APC Female
• Polarity: Type B
• Cable Length: 30 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Connector Ferrule Type: APC
• Insertion Loss (Max): ≤0.35 dB
• Return Loss (Min): ≥60 dB
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Diameter: Approx. 3.0 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, IEC 61754-7, TIA/EIA-604-5
• Minimum Bend Radius: 10 mm

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is ideal for 40G/100G/400G parallel optics applications using MTP interfaces.
