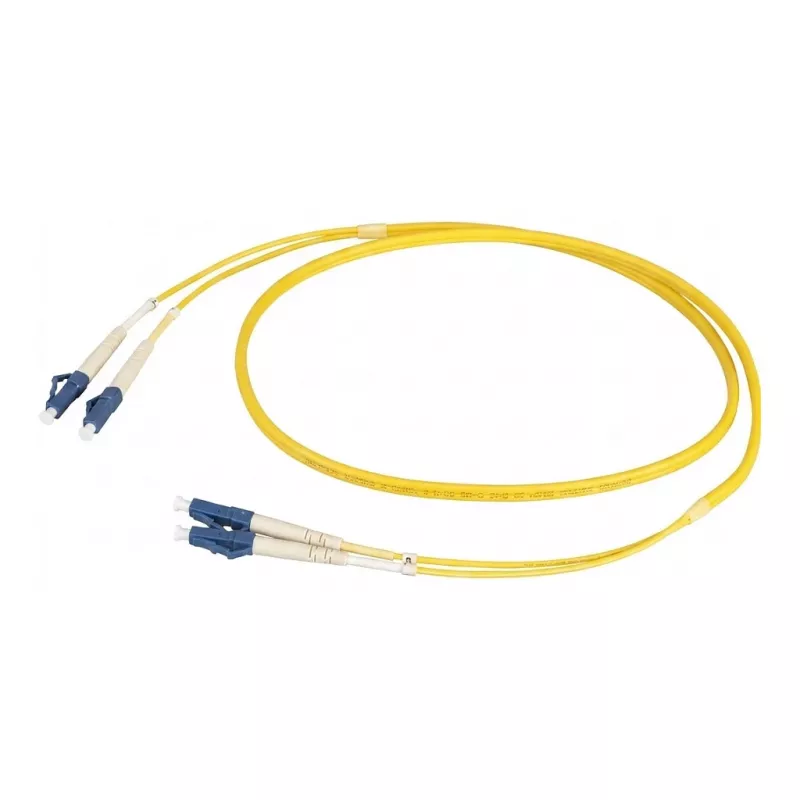

EFB-Elektronik Duplex Jumper LC-LC 9/125µm OS2 LSZH Yellow 1.5m Fiber Optic Patch Cable

The EFB-Elektronik Duplex Jumper LC-LC is a high-quality fiber optic patch cable designed for single-mode applications. With a 9/125µm core/cladding and OS2 classification, it ensures reliable performance in data centers, LAN, and telecommunication networks. The cable features a yellow LSZH (Low Smoke Zero Halogen) jacket, 2.0mm diameter, and duplex LC connectors on both ends, providing a robust and safe connection.

Advantages

This patch cable offers low insertion loss (≤0.25 dB) and high return loss (≥50 dB), ensuring minimal signal degradation. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for indoor installations. Its 1.5m length provides flexibility in rack and cabinet setups.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Telecommunication networks
• Fiber-to-the-desk applications

Key specifications

• Fiber mode: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connectors: LC Duplex to LC Duplex
• Cable length: 1.5 m
• Cable diameter: 2.0 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable color: Yellow
• Number of fibers: 2 (Duplex)
• Insertion loss (max.): ≤ 0.25 dB
• Return loss (min.): ≥ 50 dB
• Standard compliance: ISO/IEC 11801
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Minimum bend radius (static): 10 mm
• Polarity: A-B (Crossed)
• Ferrule material: Zirconia Ceramic

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC duplex ports and is suitable for high-speed data transmission up to 10 Gbps and beyond.
