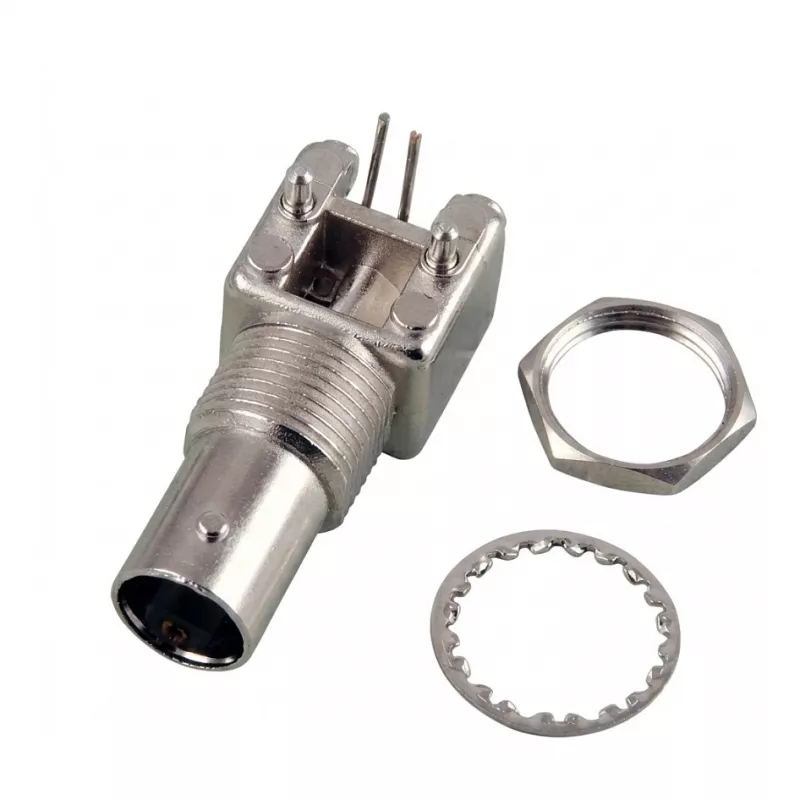

EFB-Elektronik BNC Female Jack PCB Mount 50 Ohm Full Metal Right-Angle Coaxial Connector (52594.1)

The EFB-Elektronik BNC Female Jack PCB Mount 50 Ohm Full Metal Right-Angle Coaxial Connector (model 52594.1) is a high-quality coaxial connector designed for reliable signal transmission in RF applications. Manufactured by EFB-Elektronik, this connector features a robust full metal body with nickel plating and gold-plated contacts for excellent conductivity and corrosion resistance. The right-angle design allows for space-saving PCB mounting, making it ideal for compact electronic assemblies.

Advantages

This BNC connector offers superior durability and consistent 50 Ohm impedance, ensuring minimal signal loss. The full metal construction provides excellent shielding against electromagnetic interference. Gold-plated contacts guarantee reliable connections over many mating cycles. The right-angle orientation simplifies PCB layout and reduces stress on the solder joints.

Suitable for

• RF and telecommunications equipment
• Test and measurement devices
• Broadcast and video systems
• Networking and data communication hardware
• Industrial and medical electronics requiring reliable coaxial connections

Key specifications

• Connector Type: BNC Female Jack
• Impedance: 50 Ohm
• Mounting Type: PCB Mount (Printmontage)
• Mounting Angle: Right-Angle (90°)
• Body Material: Full Metal (Nickel Plated)
• Contact Plating: Gold
• Dielectric Material: PTFE
• Termination Style: Solder
• Number of Ports: 1
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with 50 Ohm BNC cables and ensure proper soldering technique. This connector is suitable for applications up to several GHz. Always verify compatibility with your PCB footprint before installation.
