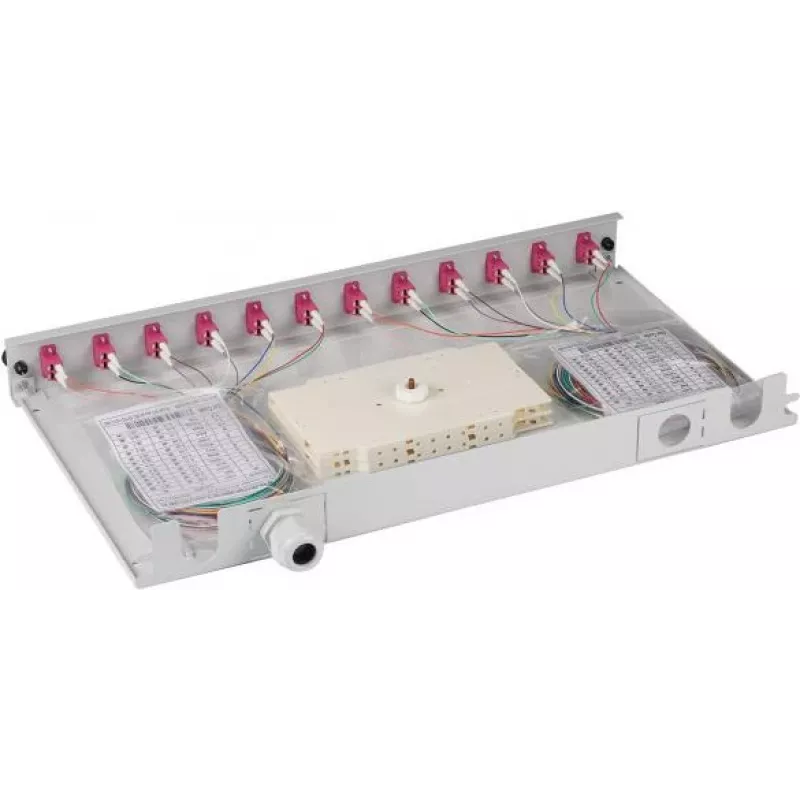

EFB-Elektronik B71901L12OM4 LC Splice Box OM4 Multimode 12 Pigtails 6 Adapters Sliding 19 inch Rack Mount Grey Violet

The EFB-Elektronik B71901L12OM4 is a high-quality fiber optic splice box designed for professional network installations. Pre-assembled with 12 LC pigtails and 6 duplex LC adapters, this OM4 multimode splice box offers a 50/125 µm core/cladding diameter and supports up to 12 fibers. Its sliding/extractable design allows easy access for splicing and maintenance, making it ideal for data centers, LAN, SAN, and FTTx applications. The robust metal housing in grey and violet ensures durability and reliable performance in 19-inch rack environments.

Advantages

Pre-assembled with pigtails and adapters saves installation time. Sliding tray provides convenient access for splicing and future changes. OM4 multimode fiber supports high-bandwidth applications up to 100 Gbps. Compact 1U design fits standard 19-inch racks. Durable metal construction ensures long-term reliability.

Suitable for

• Data center fiber distribution
• Local area network (LAN) backbone
• Storage area network (SAN) connectivity
• FTTx network termination points
• Telecommunications and enterprise cabling

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Optic Type: Multimode
• Fiber Class: OM4
• Fiber Core/Cladding Diameter: 50/125 µm
• Connector Type (Pigtails): LC
• Connector Type (Adapters): LC
• Adapter Configuration: Duplex
• Number of Pigtails: 12
• Number of Adapters: 6
• Total Fiber Capacity: 12 Fibers
• Design Feature: Sliding / Extractable
• Mounting Type: 19-inch Rack Mount
• Pre-assembled: Yes
• Housing Material: Metal
• Colour: Grey, Violet
• Dimensions: 483 mm width

Recommendations

For optimal performance, use with OM4 patch cables and LC connectors. Ensure proper fiber management and splicing techniques. Compatible with standard 19-inch racks.
