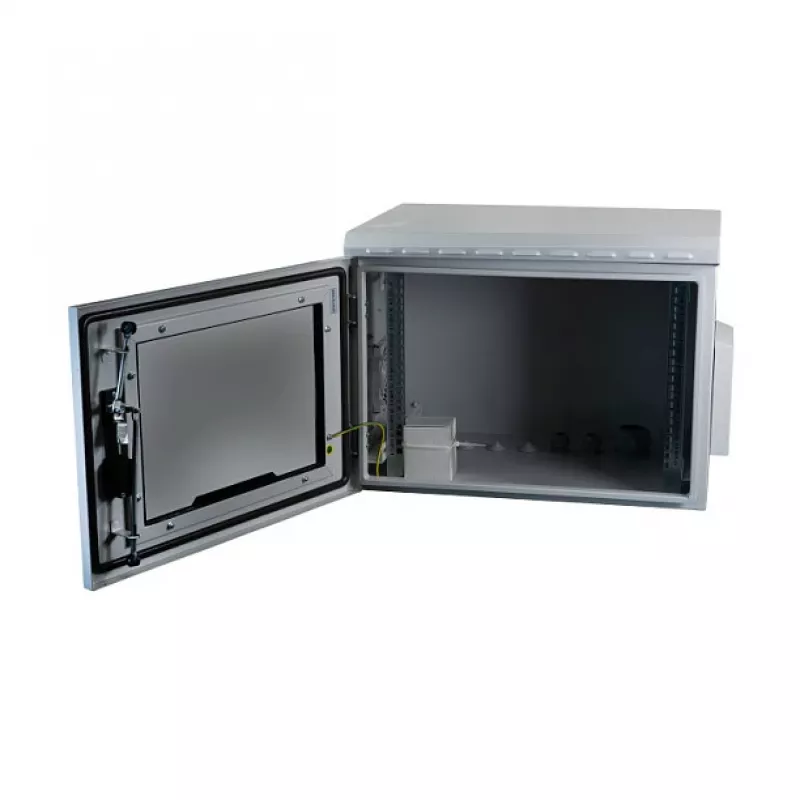

EFB-Elektronik 19 inch Wall-Mount Cabinet IP55, 20U, Glass Door, 600 mm Depth, RAL 7035 (691720IP55.2G)

The EFB-Elektronik 691720IP55.2G is a robust 19-inch wall-mount cabinet engineered for demanding industrial and network environments. Unlike standard indoor enclosures, this model carries an IP55 rating, meaning it offers reliable protection against dust ingress and low-pressure water jets. Its welded steel frame and light grey RAL 7035 finish make it a practical choice for workshops, production halls, and sheltered outdoor areas where equipment needs dependable housing.

Highlights

• 20U rack capacity for standard 19" server and network gear
• IP55 protection against dust and water jets
• Single-section safety glass door with lock (profile half cylinder, 2 keys included)
• Removable and lockable side panels for easy access
• Load capacity of 100 kg, suitable for heavy equipment
• Depth-adjustable mounting rails for flexible installation
• Cable entry top and bottom with integrated brush strips

In daily use

Mounting this cabinet is straightforward thanks to its wall-mountable design and pre-drilled back panel. The front and rear 19" rails can be adjusted in depth to fit devices of varying lengths, and the usable depth of approximately 550 mm accommodates most switches, patch panels, and small servers. The glass door provides a clear view of installed components while keeping them secure, and the lockable side panels allow quick access for maintenance without opening the main door. Cable management is simplified by the brush strips at the top and bottom, which keep cabling tidy while maintaining the IP55 seal.

Full specifications

• Rack standard: 19 inch
• Rack units: 20U
• Mounting type: Wall mount
• Ingress protection: IP55
• External dimensions (W x H x D): 600 x 1000 x 600 mm
• Usable depth: approx. 550 mm
• Material: Steel sheet
• Colour: Light grey (RAL 7035)
• Front door: Single-section safety glass, lockable
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan unit installation
• Mounting rails: 19" front and rear, depth-adjustable
• Construction: Welded frame
• Grounding: Grounding kit included
• Compliance: CE, RoHS

Final note

This wall-mount cabinet is a solid investment for anyone needing secure, protected housing for network or industrial electronics. Its IP55 rating and robust steel build set it apart from typical indoor-only racks, making it a versatile solution for harsh conditions.
