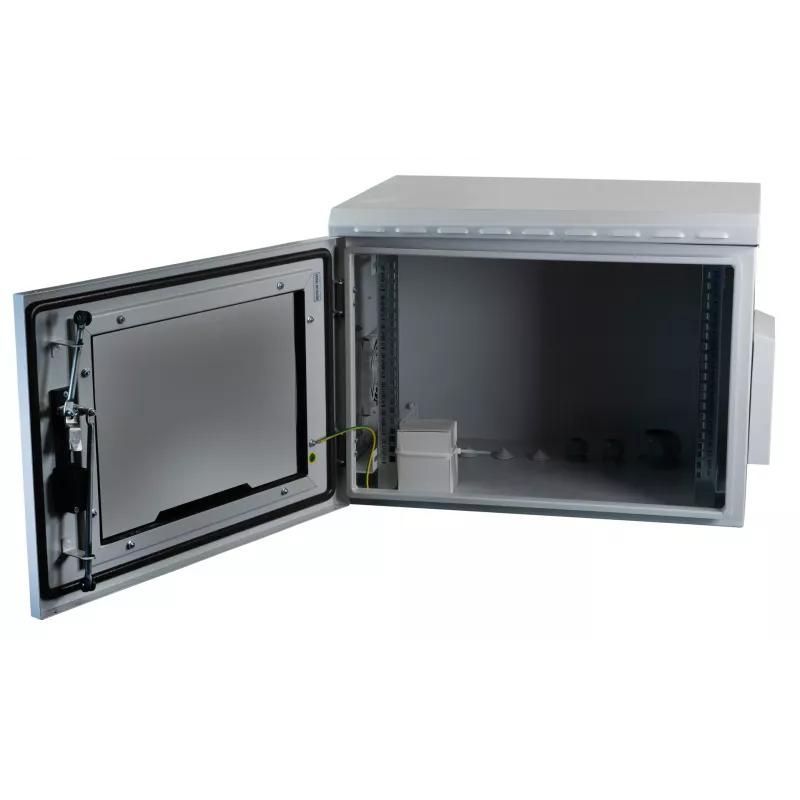

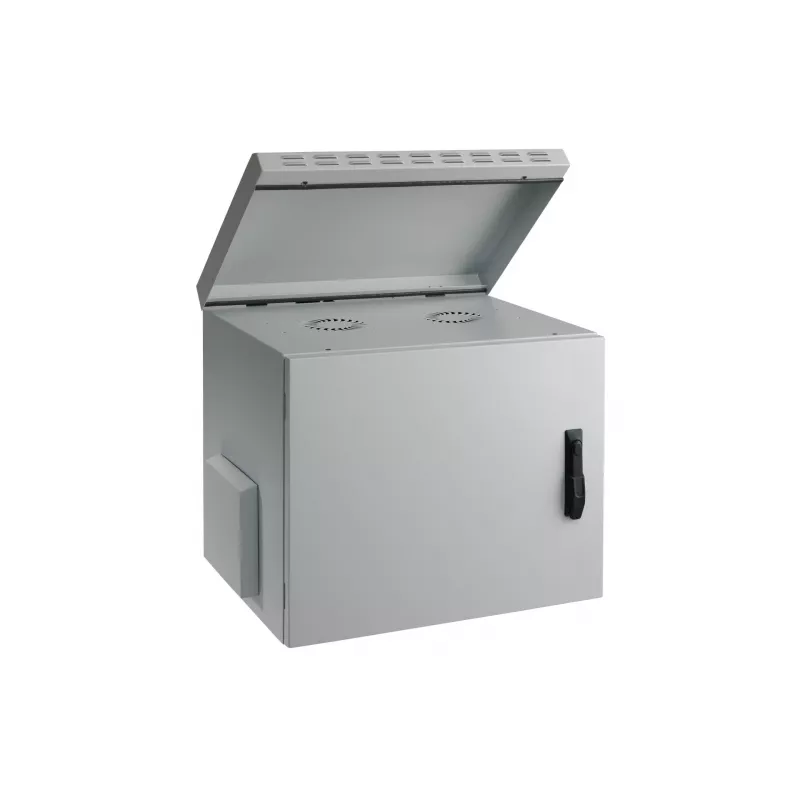

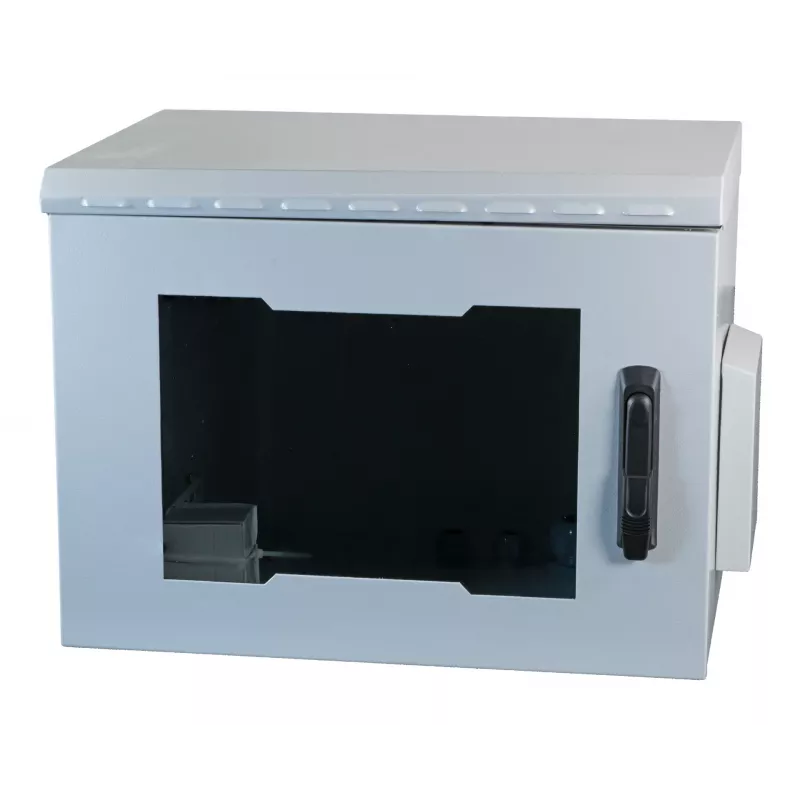

EFB Elektronik 19 inch Wall-Mounted Enclosure IP55 9U Glass Door Depth 600 mm RAL7035

The EFB Elektronik 19 inch wall-mounted enclosure IP55 offers robust protection for your IT and network equipment. With 9U of rack space, a safety glass door, and a depth of 600 mm, this enclosure is ideal for secure and organized installation in industrial or commercial environments. The light grey (RAL 7035) finish ensures a professional appearance.

Advantages

IP55 protection rating safeguards against dust and water jets. The tempered safety glass door provides visibility while maintaining security. The swivel lever handle with profile half cylinder lock ensures controlled access. Depth-adjustable 19 inch profiles allow flexible equipment mounting.

Suitable for

• IT and network equipment installation in protected environments
• Telecommunications and server hardware
• Industrial automation and control systems

Key specifications

• Rack standard: 19 inch
• Rack units: 9U
• Protection rating: IP55
• Mounting type: Wall-mount
• External dimensions (HxWxD): 490 x 600 x 600 mm
• Door type: Single front door, safety glass
• Door opening angle: 180°
• Locking system: Swivel lever handle with profile half cylinder
• Material: Sheet steel
• Colour: Light Grey (RAL 7035)
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan unit
• Side panels: Fixed
• Internal rack profiles: 2x 19 inch, depth-adjustable
• Construction: Welded frame
• Compliance: RoHS, CE

Recommendations

This enclosure is perfect for securing network switches, patch panels, and other 19 inch equipment in areas requiring dust and water protection. Pair with appropriate cable management accessories for optimal organization.
