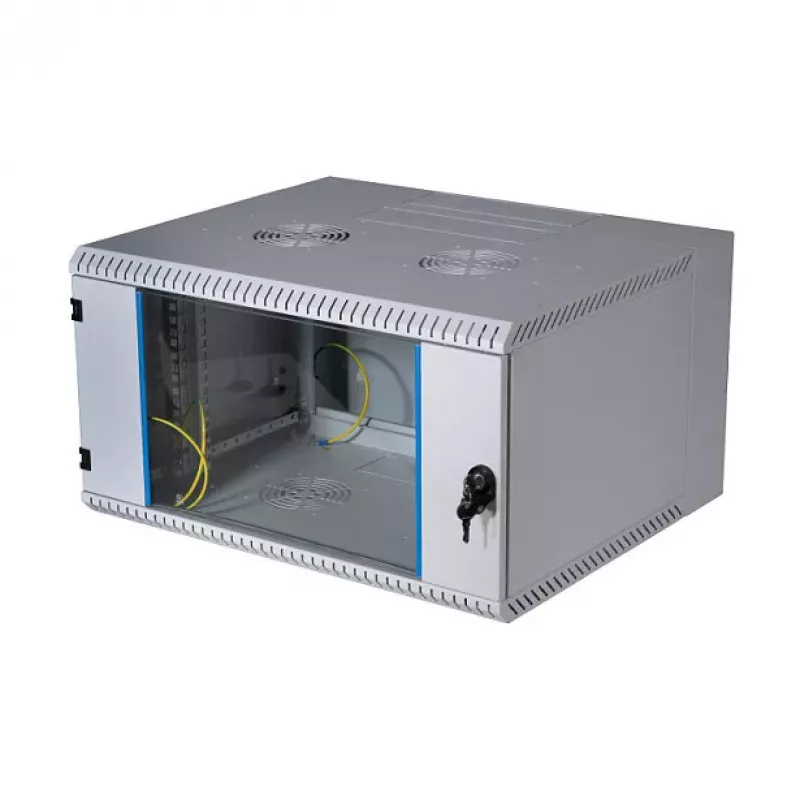

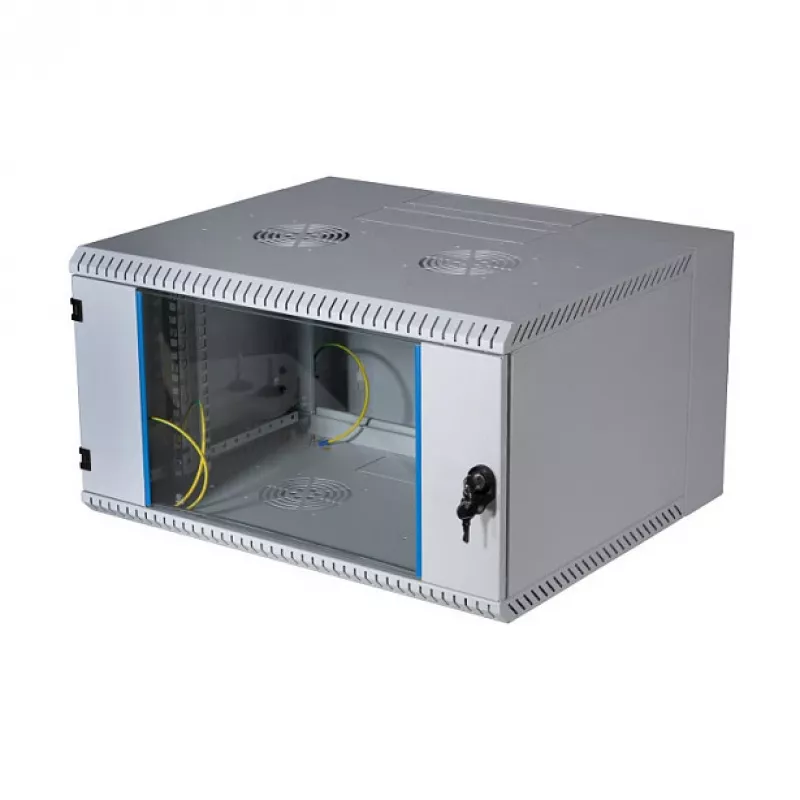

EFB 19 inch Wall-Mount Cabinet 12U, Swiveling, 2-Part, RAL 7035, Depth 500 mm

The EFB 19" Wall-Mount Cabinet 12U is a robust and versatile enclosure designed for secure and organized installation of 19-inch network and IT equipment. With a 12U height, swiveling 2-part design, and a depth of 500 mm, this cabinet offers excellent accessibility and cable management. Finished in light grey (RAL 7035), it blends seamlessly into professional environments.

Advantages

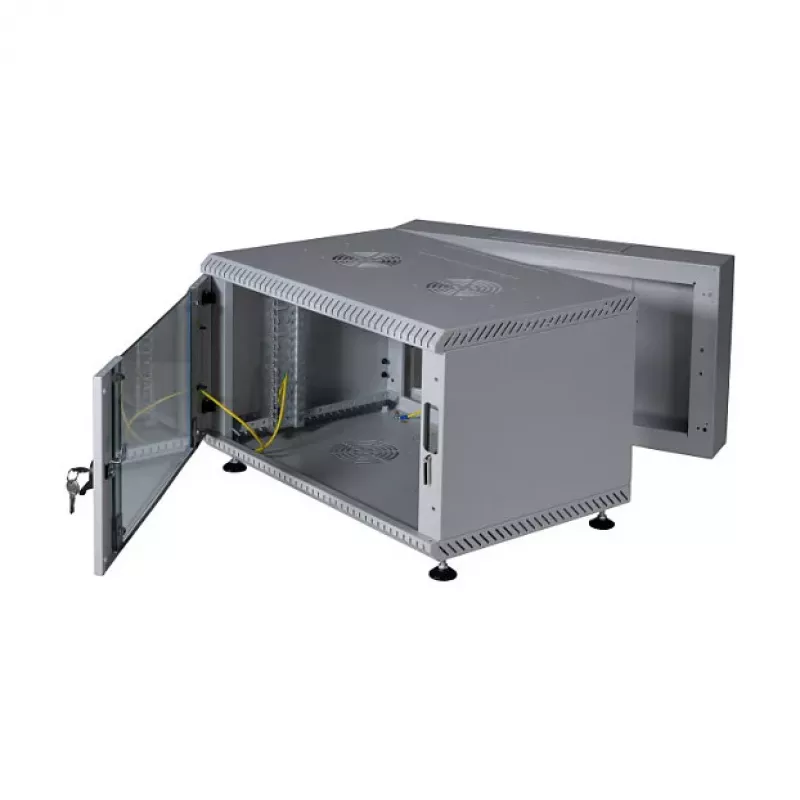

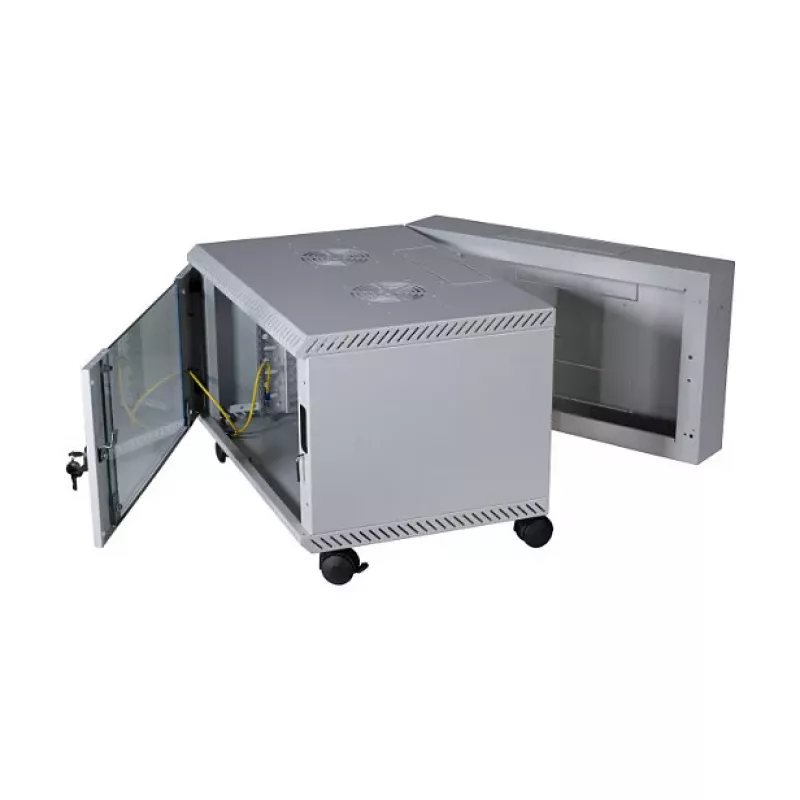

Space-saving wall-mount design with a swiveling frame allows easy access to rear connections. The 2-part construction simplifies installation and maintenance. Pre-assembled for quick deployment, saving time and effort.

Suitable for

• Network switches, patch panels, and servers in small to medium IT rooms
• Office environments requiring a tidy and secure equipment housing
• Retail, education, and healthcare facilities needing reliable wall-mounted enclosures

Key specifications

• Rack Units: 12U
• Mounting Standard: 19-inch
• Enclosure Type: Wall-mount cabinet, swiveling, 2-part
• External Dimensions (HxWxD): 635 x 600 x 500 mm
• Material: Steel sheet
• Colour: Light Grey (RAL 7035)
• Protection Class: IP20
• Front Door: Glass door with steel frame, lockable
• Load Capacity: 60 kg
• Usable Depth: Approx. 450 mm
• Assembly State: Pre-assembled

Recommendations

For optimal cable management, pair with EFB brush strips and cable ties. Ensure wall mounting surface can support the cabinet's weight when fully loaded.
