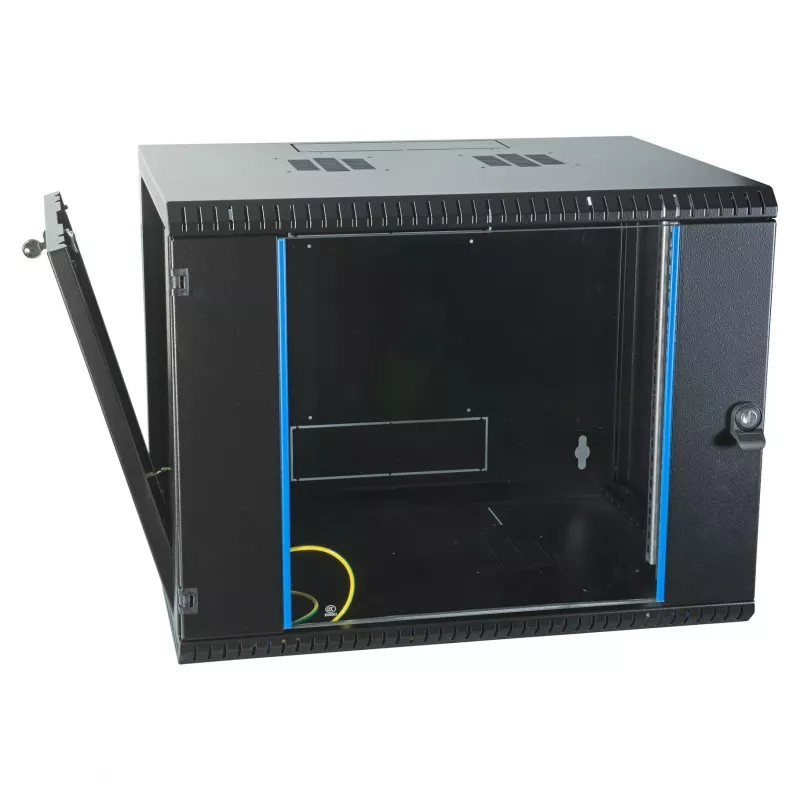

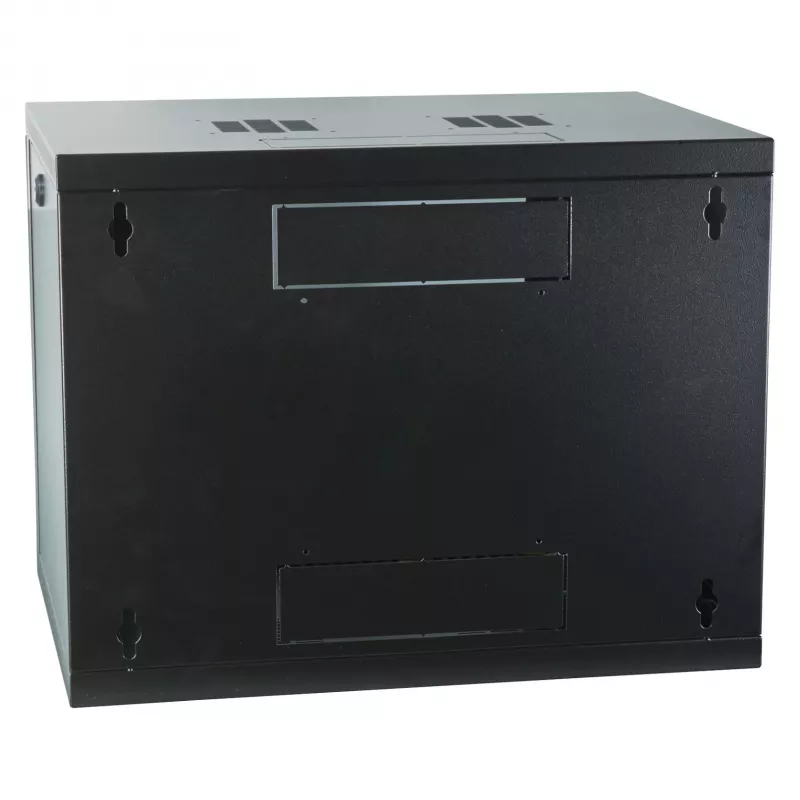

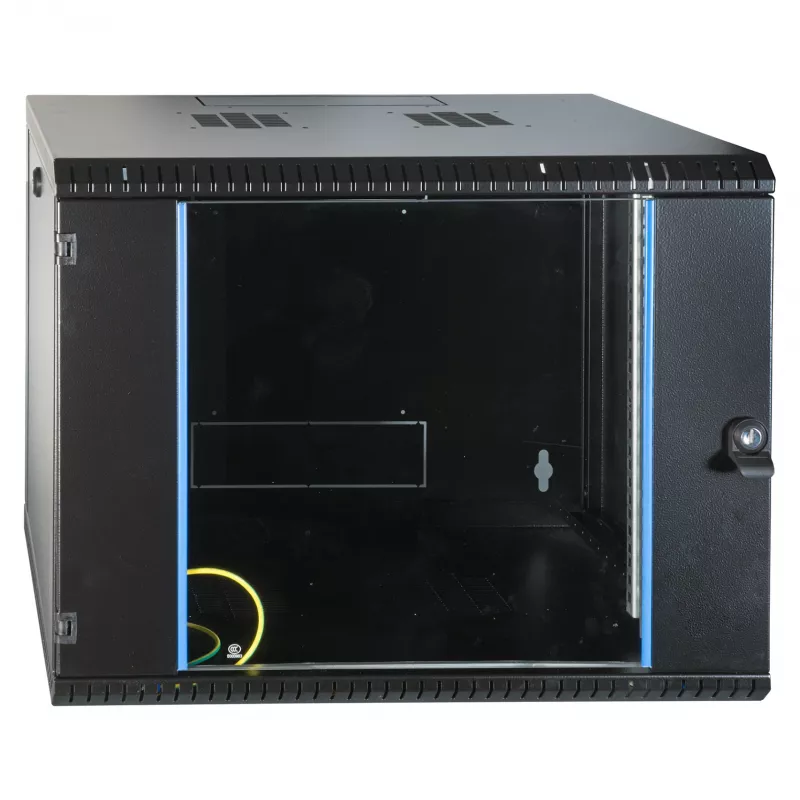

EFB 19 inch Wall Mount Enclosure 9U, Fixed, Single Section, RAL 9005, Depth 600 mm

The EFB 19" Wall Mount Enclosure 9U offers a robust and secure housing solution for your 19-inch rack equipment. Designed for fixed, single-section wall mounting, this enclosure provides reliable protection and organization for network, audio, or industrial components. With a depth of 600 mm, it accommodates a variety of devices while maintaining a compact footprint.

Advantages

This enclosure features a lockable, reversible safety glass front door for easy access and enhanced security. The pre-assembled construction saves installation time, and the powder-coated finish ensures durability. Passive ventilation openings maintain optimal airflow without active cooling.

Suitable for

• Network switches, patch panels, and servers
• Audio/video equipment in commercial or industrial settings
• IT infrastructure requiring secure wall-mounted storage

Key specifications

• Rack Units: 9U
• Rack Standard: 19 inch
• Mounting Type: Wall Mount
• Construction: Single Section, Fixed
• External Dimensions: 600 x 600 x 490 mm (WxDxH)
• Colour: Jet Black (RAL 9005)
• Material: Sheet Steel, Powder-coated
• Front Door: Safety Glass, Lockable, Reversible
• Side Panels: Fixed
• Cable Entry: Top and Bottom (Pre-punched)
• Ventilation: Passive Openings
• Load Capacity: 60 kg
• Protection Class: IP20
• Mounting Rails: 2x 19" Profile Rails, Depth Adjustable
• Assembly State: Pre-assembled

Recommendations

Ideal for securing and organizing 19-inch equipment in space-constrained environments. The depth-adjustable rails offer flexibility for various device depths.
