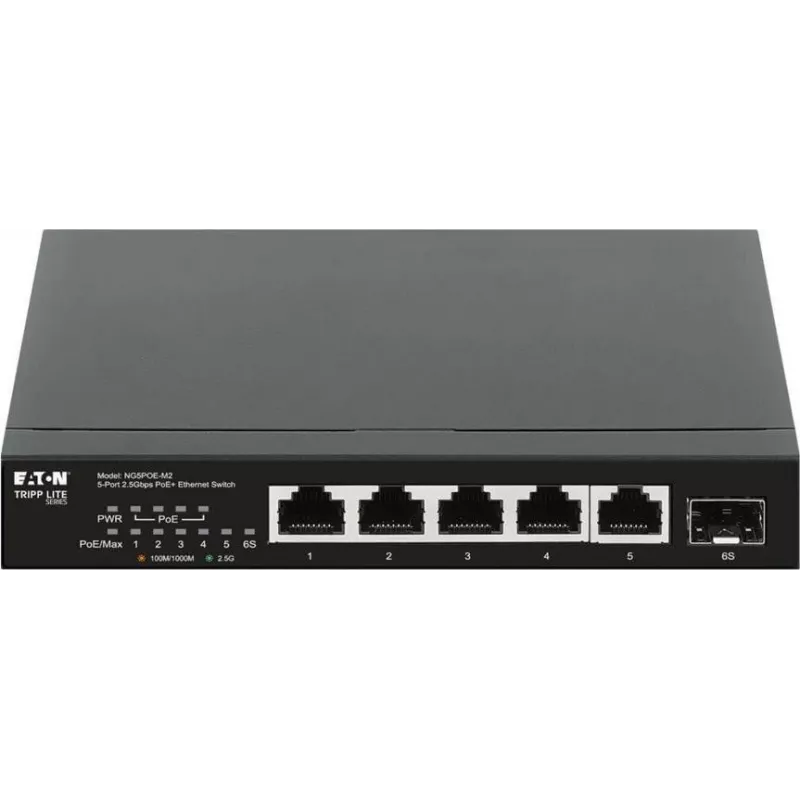

Eaton Tripp Lite Series Desktop Gigabit Ethernet Unmanaged Switch PoE+ Pass-Through 5-Port 2.5 Gbps 70W Metal

The Eaton Tripp Lite Series NG5POE-M2 is a high-performance 5-port unmanaged Gigabit Ethernet switch designed for desktop or wall-mount deployment. With 2.5 Gbps ports and PoE+ pass-through capability, it delivers fast, reliable connectivity and power to devices such as IP cameras, wireless access points, and VoIP phones. The metal enclosure ensures durability, while the fanless design guarantees silent operation, making it ideal for noise-sensitive environments.

Advantages

This switch offers a total PoE power budget of 70W, with up to 30W per port, enabling flexible power distribution. The 2.5 Gbps speed provides a significant upgrade over standard Gigabit Ethernet, enhancing network performance for bandwidth-intensive applications. Its plug-and-play unmanaged design requires no configuration, simplifying installation. The compact metal housing and wall-mountable form factor save space, and the fanless operation ensures zero noise.

Suitable for

• Small offices and home offices needing high-speed wired connections
• Deploying PoE+ devices like IP cameras, access points, and VoIP phones
• Network expansion in retail, education, and hospitality environments
• Applications requiring silent operation (e.g., libraries, clinics)

Key specifications

• 5 x 10/100/1000/2.5G RJ45 ports with PoE+ (IEEE 802.3at)
• Switching capacity: 25 Gbps
• Forwarding rate: 18.6 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 12 KB
• Enclosure: Metal, desktop/wall-mountable
• Fanless design for silent operation
• External AC adapter (100-240V AC)
• Operating temperature: 0°C to 40°C

Recommendations

For optimal performance, use Cat6a or higher cabling to fully utilize 2.5 Gbps speeds. This switch is an excellent choice for upgrading existing networks without replacing all endpoints, as it auto-negotiates with 1 Gbps and 100 Mbps devices.
