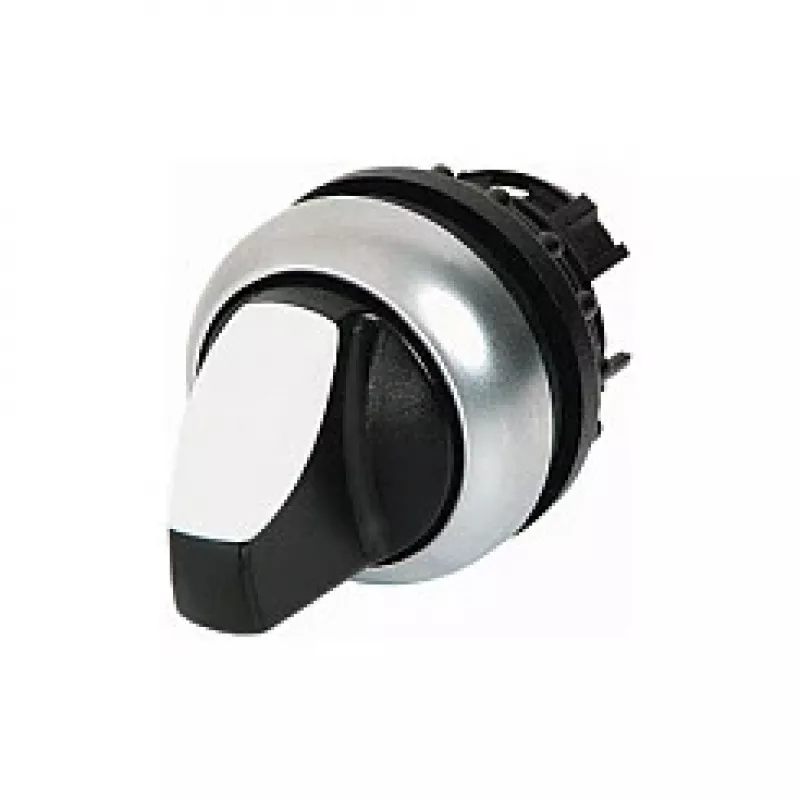

Eaton M22-WRK Selector Switch Actuator, 3-Position, Maintained, Black, Titanium Bezel, IP69K

Selector switch actuator for demanding industrial control, engineered for reliable maintained 3-position switching with IP69K front protection against high-pressure washdowns. The black lever and titanium bezel deliver a robust, modern appearance while ensuring over 1 million mechanical operations.

Advantages

This actuator offers exceptional longevity with more than 1,000,000 mechanical operations, reducing maintenance and downtime. Its modular design allows quick assembly with Eaton M22 contact blocks, simplifying installation and inventory. High protection ratings (IP66, IP67, IP69K) and a wide temperature range (-25°C to +70°C) make it suitable for harsh conditions.

Suitable for

• Industrial control panels and machinery
• Food and beverage processing equipment requiring washdown resistance
• Outdoor installations exposed to dust and water
• Applications needing a reliable maintained selector switch

Key specifications

• Product type: Selector switch actuator
• Number of positions: 3
• Operation mode: Maintained (latching)
• Actuator colour: Black
• Bezel colour: Titanium
• Mounting hole diameter: 22.5 mm
• Front protection: IP66, IP67, IP69K
• NEMA rating: 4X, 13
• Series: Eaton M22
• Connection type: Modular (requires M22 contact blocks)
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical durability: > 1,000,000 operations
• Switching angle: 2 x 45°
• Approvals: CE, UL, CSA, CCC, EAC, KEMA
• RoHS compliant: Yes

Recommendations

For reliable control in demanding environments, pair this actuator with Eaton M22 contact blocks and LED elements to create a complete, sealed control station. Ideal for washdown areas in food processing, outdoor machinery, and any application where durability and protection are critical.
