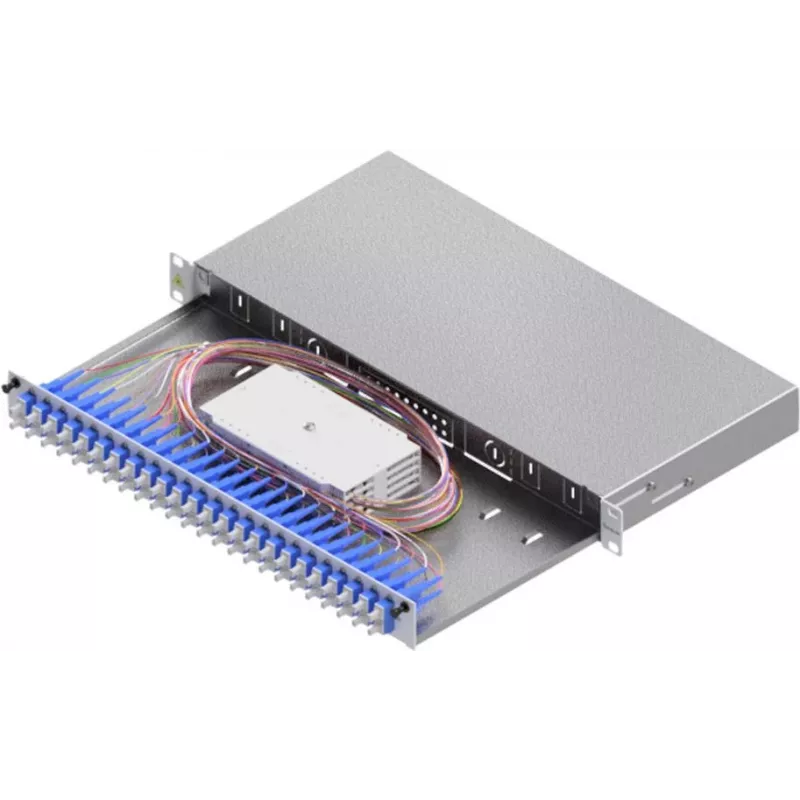

EASYLAN LSB1C225 Fiber Optic Splice Housing Basic 1U 24x SC-Duplex OS2 Slide-out

The EASYLAN LSB1C225 is a high-quality fiber optic splice housing designed for professional network distribution, splicing, and patching. This 1U 19-inch rack-mount unit features a slide-out drawer for easy access and is pre-equipped with 24 SC-Duplex adapters, supporting up to 48 fibers (OS2 singlemode). The housing is made of powder-coated sheet steel in light grey (RAL 7035) and includes two splice trays for 24 fibers each, integrated cable strain relief, and rear cable entry. Ideal for data centers, telecom rooms, and enterprise networks.

Advantages

Space-saving 1U design maximizes rack utilization. Slide-out drawer simplifies installation and maintenance. Robust steel construction ensures durability. Pre-assembled with SC-Duplex couplings reduces installation time. Integrated cable management keeps fibers organized.

Suitable for

• Fiber optic network distribution and patching
• Splicing and termination in 19-inch racks
• Data centers and telecom rooms
• Enterprise and carrier networks

Key specifications

• Product Type: Fiber Optic Splice Housing / Patch Panel
• Form Factor: 19-inch Rack Mount, 1U
• Fiber Optic Type: Singlemode OS2
• Connector Type: SC-Duplex
• Number of Adapters: 24
• Max Fiber Capacity: 48 fibers
• Design: Slide-out Drawer
• Housing Material: Sheet Steel, Powder-coated
• Colour: Light Grey (RAL 7035)
• Included Splice Trays: 2 (24 fibers each)
• Cable Entry: Rear
• Cable Management: Integrated Strain Relief

Recommendations

For optimal performance, use with OS2 singlemode patch cables and appropriate splice protectors. Ensure proper cable routing to maintain bend radius.
