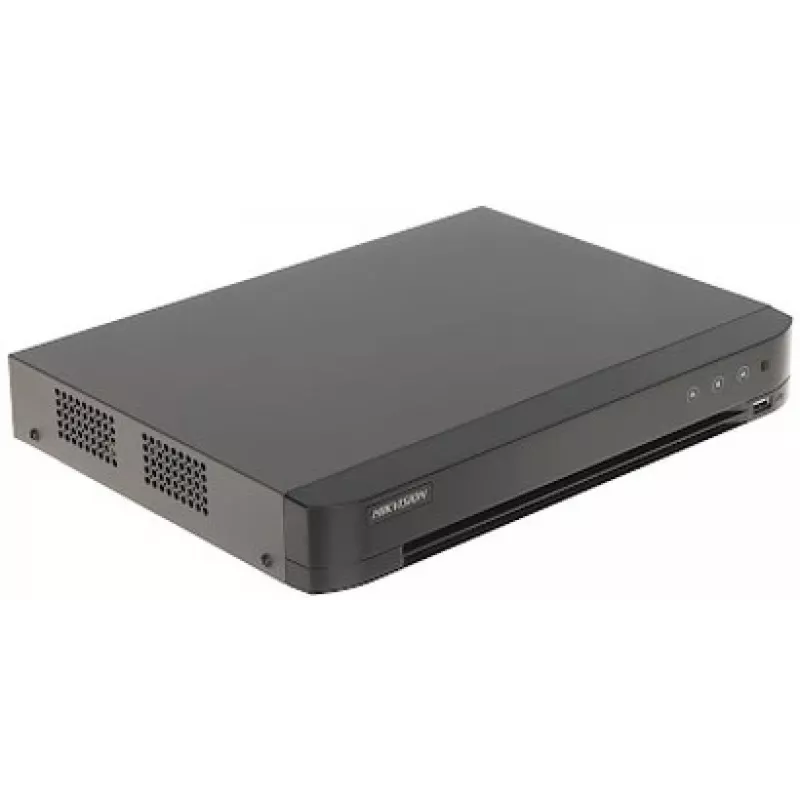

DVR Hikvision iDS-7204HUHI-M1/XT 4-channel 5MP recorder

The Hikvision iDS-7204HUHI-M1/XT 4-channel 5MP recorder is a compact DVR designed for local video surveillance and reliable storage of analog and HD camera feeds. It supports up to four camera channels with a maximum resolution of 5MP per channel and is compatible with common Hikvision transport formats. The device offers simultaneous monitoring and recording, configurable recording schedules, and basic playback functions suitable for small commercial premises and residential installations.

Advantages

The recorder supports high-resolution 5MP input on each channel while remaining physically compact and suitable for limited-space installations. It integrates multi-channel recording, live monitoring, and playback in a single unit, reducing the need for additional equipment. Onboard management features allow for configurable recording modes and straightforward storage control. Compatibility with standard Hikvision analog and HD camera formats simplifies system setup and expansion.

Suitable for

• Small retail stores and boutiques
• Small offices and reception areas
• Residential properties and apartment entrances
• Parking areas and garage monitoring

Key specifications

• Channels: 4 simultaneous video inputs
• Maximum input resolution: up to 5 megapixels per channel
• Supported camera types: analog and HD camera signals compatible with Hikvision formats
• Recording modes: continuous, scheduled, and motion-triggered recording
• Local storage: internal HDD bay(s) for video archive (HDD sold separately; capacity depends on model and user choice)
• Network: basic network connectivity for remote viewing and management
• Playback: multi-channel playback and basic search functions

How to use

Install compatible analog or HD cameras and connect them to the recorder’s input ports. Configure the recorder through its local interface or network management tools to set resolution, frame rate, and recording schedules for each channel. Insert an appropriate-capacity hard drive into the internal bay and initialize it for recording. Use the live view for real-time monitoring and the playback interface to review archived footage. For remote access, connect the recorder to your local network and configure user accounts and network settings as required.

Recommendations

For reliable long-term operation, choose an industrial-grade surveillance HDD with sufficient capacity and configure regular overwrite policies. Place the recorder in a ventilated, dust-free location and ensure stable network connectivity if remote monitoring is required. Periodically test camera connections and recording schedules to confirm correct operation.
