Drill Einhell TP-CD 18/60 Li-i BL

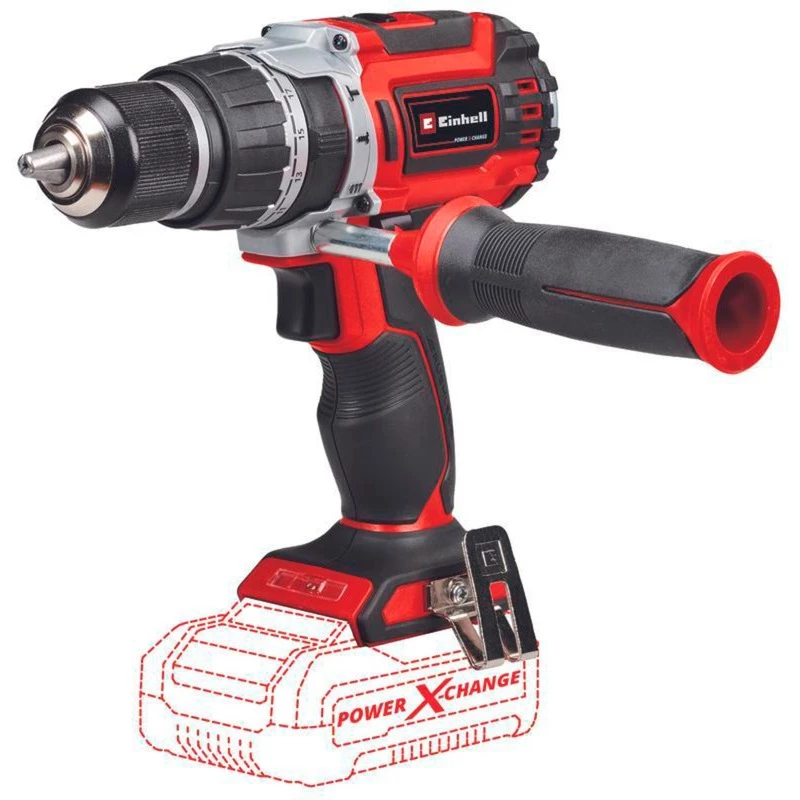

The Einhell TP-CD 18/60 Li-i BL is a cordless pistol-grip impact drill powered by an 18 V lithium-ion battery and the Einhell PurePOWER brushless motor. The brushless motor delivers higher performance, longer running time and reduced maintenance compared with conventional carbon-brush motors; after online registration the motor is covered by a 10-year service promise. As a member of the Power X-Change family, the drill is compatible with all batteries from that system. The tool combines impact drilling and screwdriving functions, a robust metal gearbox and a quick-release 13 mm metal keyless chuck for fast bit changes. It weighs approximately 1.37 kg and includes an integrated LED light and an auxiliary handle for better control during demanding work. Batteries and chargers are not included and are sold separately.

Advantages

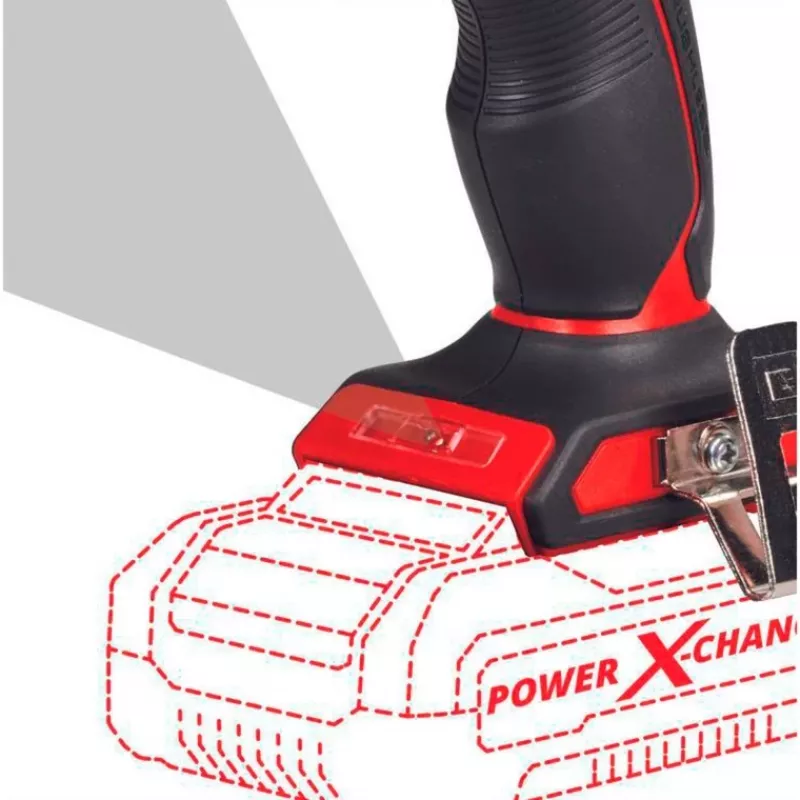

The brushless PurePOWER motor provides increased power output, longer runtime and maintenance-free operation. Two-speed gearing and electronic speed control allow adaptation to different materials and tasks, while 23 selectable torque levels and a maximum torque of 60 Nm ensure precise screwdriving. The solid metal gearbox and durable metal chuck improve longevity. An auxiliary handle and Softgrip surfaces reduce operator fatigue, and the built-in LED illuminates dark or confined work areas.

Suitable for

• Drilling in wood, metal and plastic
• Impact drilling in masonry, brick and concrete up to appropriate bit sizes
• Screwdriving tasks with adjustable torque up to 60 Nm
• General DIY and professional trade jobs requiring a compact, cordless impact drill

Key specifications

• Model: Einhell TP-CD 18/60 Li-i BL (MPN 4514205, EAN 4006825659092)
• Power source: 18 V Lithium-Ion (Power X-Change, battery sold separately)
• Motor: PurePOWER brushless motor (10-year service promise after registration)
• Max. idle speed: up to 32,000 RPM (second gear)
• Impacts: up to 8,000/min (first gear) and 32,000/min (second gear)

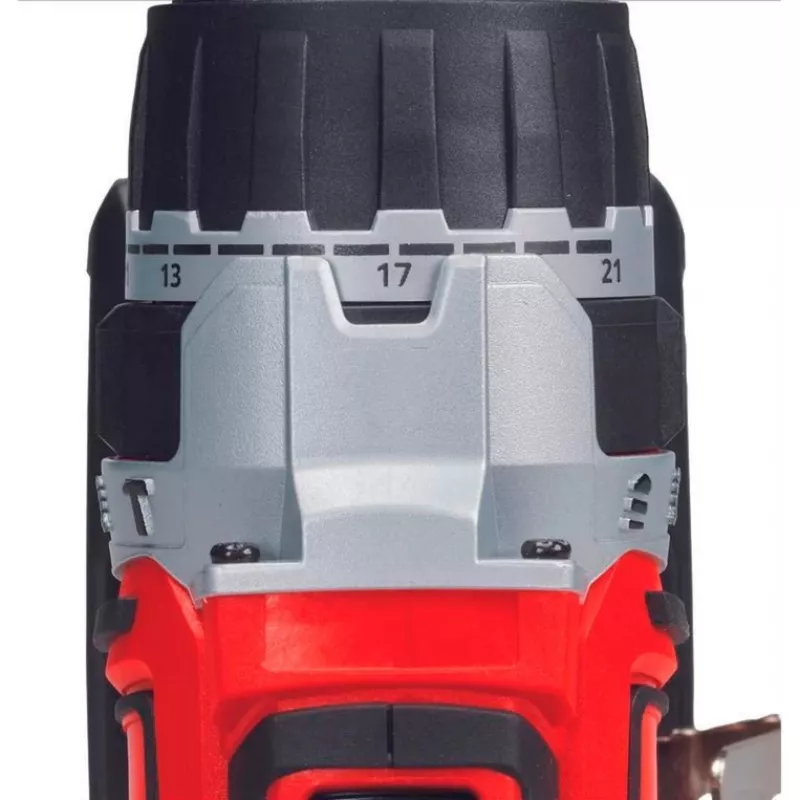

• Max. torque: 60 Nm with 23 torque settings

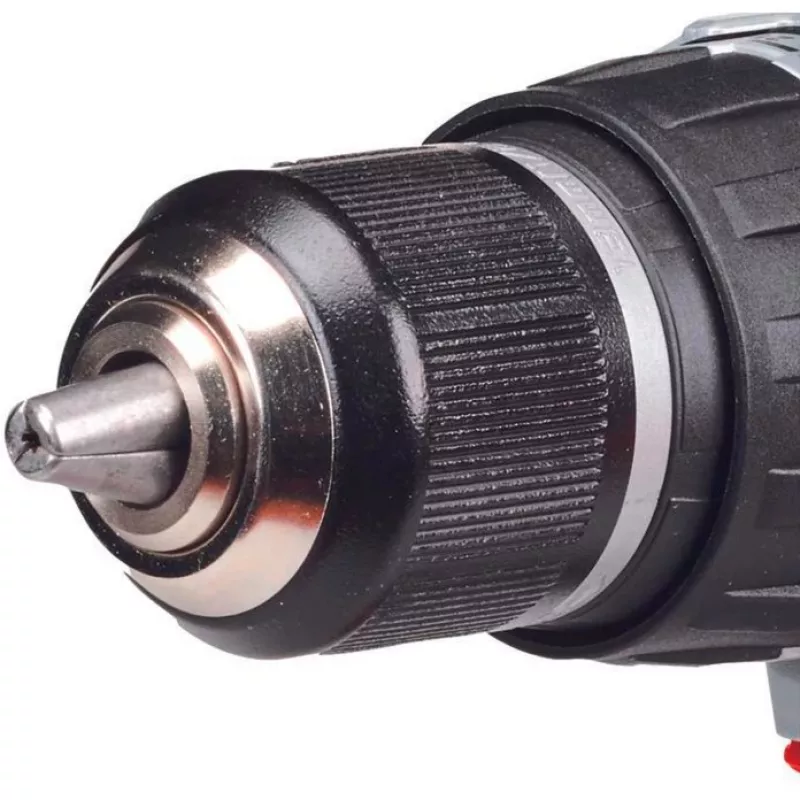

• Chuck: 13 mm quick-release metal keyless chuck
• Gears: 2-speed gearbox
• Weight: approx. 1.37 kg
• Color: Red / Black

How to use

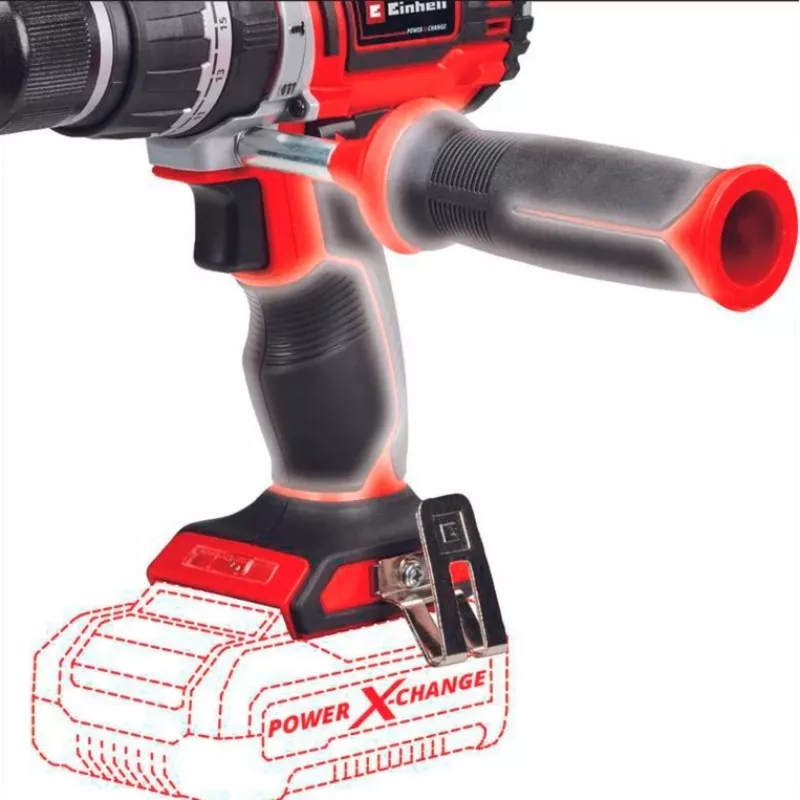

Fit a charged Power X-Change battery into the drill until it locks. Select the appropriate drill bit or screwdriver and insert it into the 13 mm keyless metal chuck, using the Quick Stop feature to change bits quickly. Choose the required gear (low for high torque, high for faster drilling) and set the torque level as needed. For impact drilling enable the percussion function. Hold the drill with both hands using the auxiliary handle for added stability when impact drilling hard materials. Use the integrated LED to illuminate the work area in dark or constrained spaces.

Recommendations

For best results, use appropriately rated Power X-Change batteries and a compatible charger. Match drill bit type and size to the material; use masonry bits for concrete or brick and high-speed steel or wood bits for metal and timber. When impact drilling in masonry, secure the workpiece and wear appropriate personal protective equipment (eye, ear and dust protection). Register the product online to activate the 10-year PurePOWER motor service promise.
