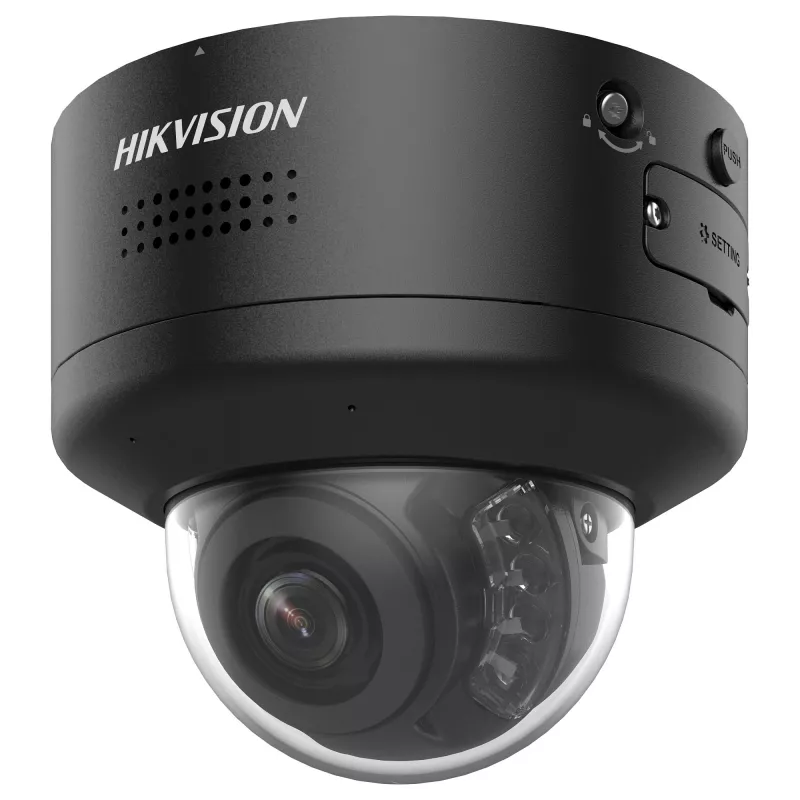

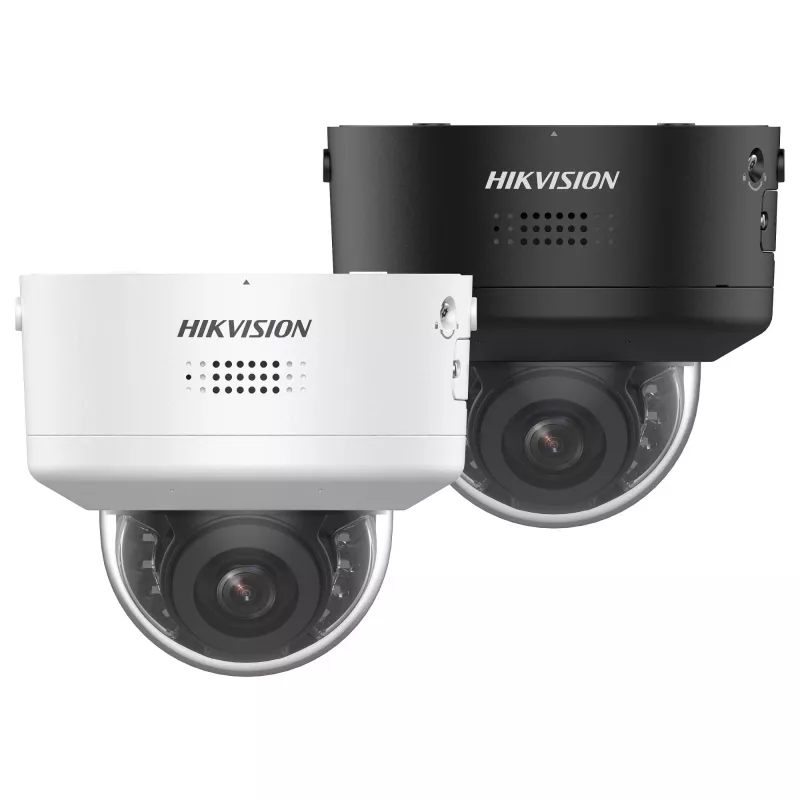

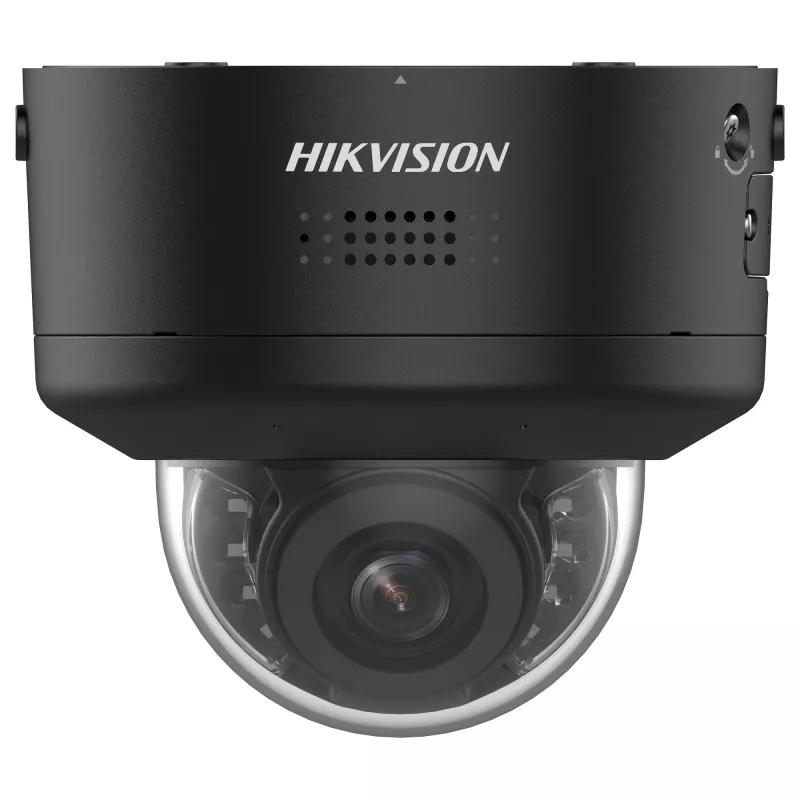

Dome IP security camera Hikvision DS-2CD2787G2H-LIPTRZS2U/SL — 8MP 3840×2160, 2.8–12 mm varifocal, PoE, indoor/outdoor, ceiling/wall mount

Hikvision DS-2CD2787G2H-LIPTRZS2U/SL is an 8MP dome IP security camera that delivers 3840×2160 resolution for detailed indoor and outdoor surveillance. The camera integrates a 1/1.8" CMOS sensor with a 2.8–12 mm motorized varifocal lens, offering a horizontal field of view from 112.3° to 41.2°. Designed for ceiling or wall mounting, the unit supports Power over Ethernet (PoE) and provides motorized pan, tilt, rotate and zoom functions to simplify installation and remote framing. Ruggedized to IP66 and IK10 ratings, the camera includes hybrid illumination (IR and white light), ColorVu for color imaging at low light, and Wide Dynamic Range (130 dB) for clear images in high-contrast scenes.

Advantages

The camera produces 8MP, 3840×2160 video for high-detail monitoring and supports 24/7 colorful imaging through ColorVu combined with IR, white light, and Smart Hybrid Light modes. Motorized PTRZ (pan/tilt/rotate/zoom) enables precise remote adjustment and a 350° rotation range for flexible coverage. Built-in deep-learning classification differentiates humans and vehicles to reduce false alarms, while dual-array microphone and two-way audio capabilities support clear audio communication. The SL variant adds an active strobe light and audio alarm for deterrence. Durable construction and IP66/IK10 protection make the device suitable for exposed installations.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Monitoring building entrances and lobbies
• Facility and warehouse interior and exterior coverage
• Parking lots and access lanes requiring long-range detection

Key specifications

• Image sensor: 1/1.8" CMOS, 8 MP (3840×2160)
• Lens: Motorized varifocal 2.8–12 mm
• Horizontal field of view: 112.3°–41.2°
• Optical functions: Motorized pan, tilt, rotate, zoom; 350° rotation
• Illumination: IR and white light with Smart Hybrid Light
• Low-light imaging: ColorVu technology for color at low light levels
• WDR: 130 dB wide dynamic range
• Analytics: Human and vehicle classification using deep learning
• Audio: Dual-array microphone and two-way audio support
• Network: Wired Ethernet with Power over Ethernet (PoE)
• Night vision range: up to 40 m with IR/white light
• Ingress and impact protection: IP66 and IK10
• Mounting: Ceiling or wall mount, dome form factor
• Color: Black
• Weight: approximately 820 g

How to use

Mount the dome camera on a ceiling or wall using compatible mounting hardware and ensure a stable PoE network connection for power and data. Use the motorized varifocal lens and PTRZ controls from the recorder or client software to set the desired framing and zoom levels. Configure illumination modes (IR, white light, Smart Hybrid Light) and ColorVu settings according to ambient lighting conditions. Enable human and vehicle classification in the analytics menu to tailor event detection and reduce false alarms. Connect audio and alarm interfaces if two-way communication or external alarm integration is required.

Recommendations

For optimal performance, install the camera at a height and angle that balance field of view and detection distance, considering the 2.8–12 mm lens range. Use PoE-enabled switches or injectors rated for the camera's power draw. Configure IR/white light modes and WDR based on site lighting: enable ColorVu for critical color identification in low light and activate strobe/alarm features on the SL model only where audible/visual deterrence is appropriate and compliant with local regulations.
