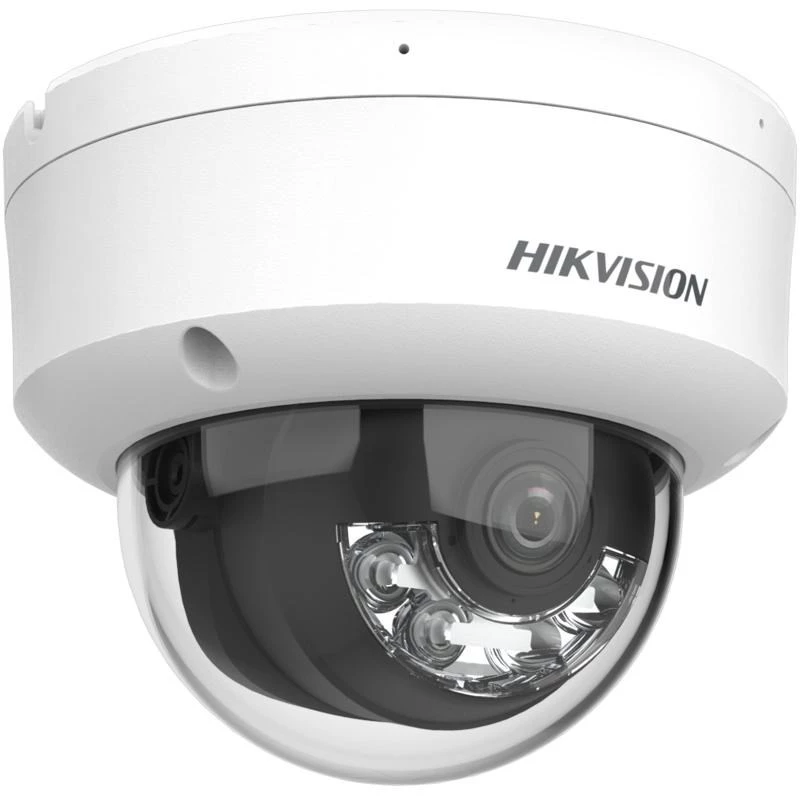

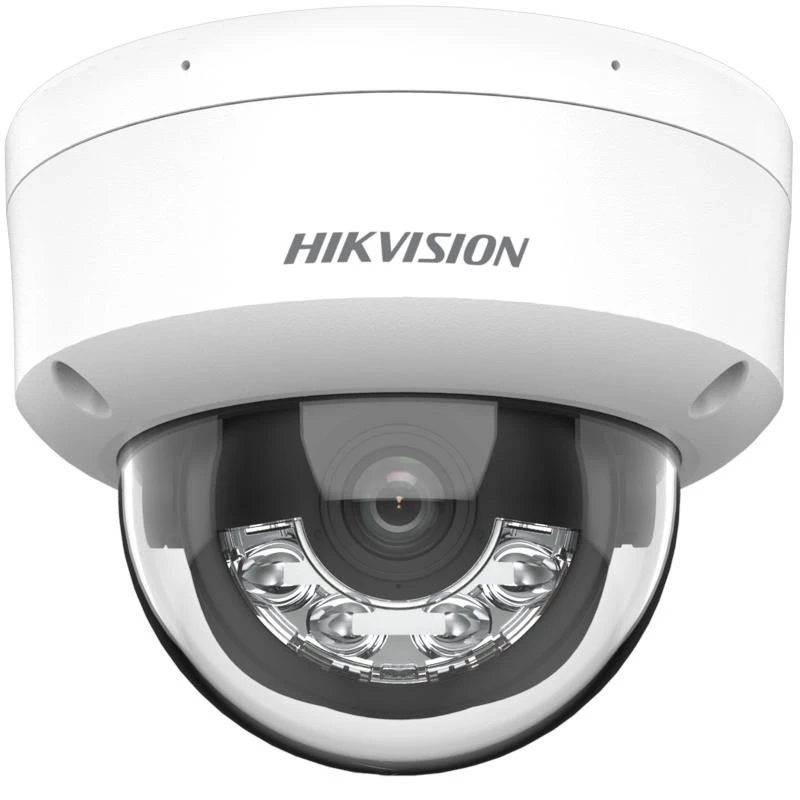

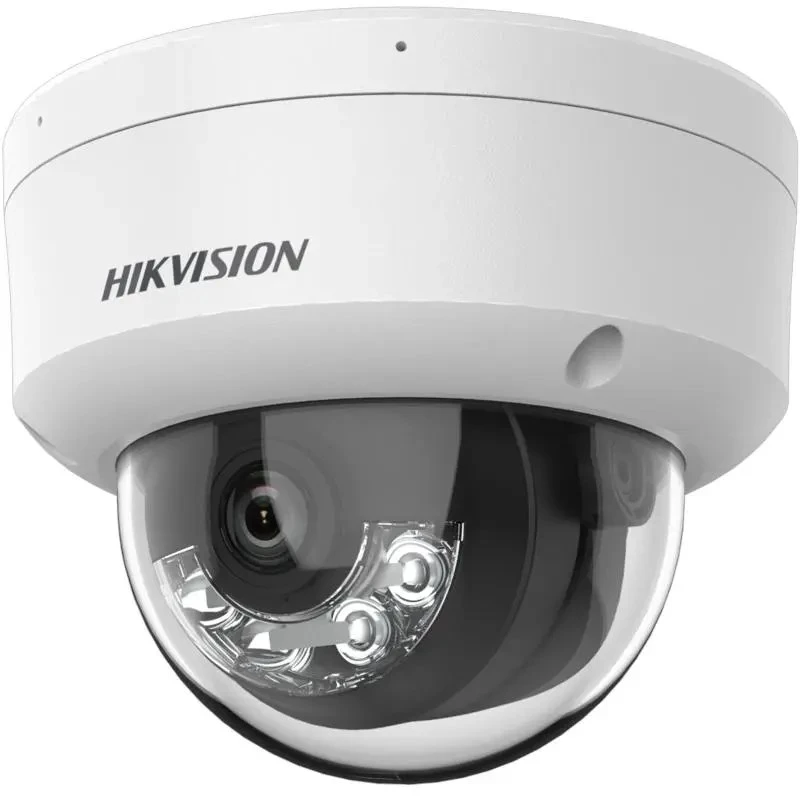

Dome IP security camera Hikvision DS-2CD1183G2-LIUF (2.8mm) — 8MP 3840×2160, ceiling mount, IP67, PoE

The Hikvision Value Series DS-2CD1183G2-LIUF(2.8MM)PL is a dome IP security camera designed for indoor and outdoor ceiling installation. Offering 8 MP (3840 x 2160) resolution and wired Ethernet connectivity, this white dome camera combines Hikvision ColorVu low-light imaging, Smart Hybrid Light and Motion Detection 2.0 to deliver clear daytime and enhanced low-light video while distinguishing people and vehicles from other motion.

Advantages

The camera provides high-quality 8 MP imaging with efficient H.265+ compression to reduce storage and bandwidth usage. On-board storage is supported via an SD card slot (up to 512 GB). Built-in microphone enables real-time audio monitoring. The device is weatherproof and vandal resistant (IP67, IK08), making it suitable for varied environments. Additional features include up to 30 m night vision (IR), a wide horizontal viewing angle (approximately 113°), and reliable wired network connectivity.

Suitable for

• Small and medium business indoor surveillance
• Outdoor perimeter monitoring under shelter or ceiling mounts
• Common areas such as lobbies, corridors and parking entrances
• Locations requiring people and vehicle detection alerts

Key specifications

• Model: Hikvision DS-2CD1183G2-LIUF(2.8MM)PL
• Type: Dome IP security camera, ceiling mount
• Resolution: 8 MP (3840 x 2160)
• Sensor: CMOS, 1/2.7" (25.4 / 2.7 mm)
• Lens horizontal FOV: ~113°, vertical FOV: ~62°
• Frame rate: 15 fps
• Night vision: IR up to 30 m
• Compression: H.265+
• Storage: Optional on-board SD card up to 512 GB
• Connectivity: Wired Ethernet LAN
• Durability: IP67 dust/water resistant, IK08 vandal resistant
• Color: White; Weight: 0.55 kg

How to use

Mount the dome camera on a suitable ceiling surface and connect it to power and the wired Ethernet network. Configure the camera using Hikvision-compatible software or a network video recorder (NVR), set resolution and compression settings (H.265+ recommended for storage efficiency), and enable Motion Detection 2.0 with human/vehicle filtering as required. If local recording is needed, insert an SD card (up to 512 GB) into the on-board slot and format it through the camera interface.

Recommendations

For reliable detection and image quality, position the camera to cover the primary area of interest with minimal obstructions, keep firmware up to date, and use a stable wired network connection. Enable Smart Hybrid Light and ColorVu settings for improved low-light performance and activate human/vehicle detection to reduce false alarms.
