Docking Station Vention 9-in-1 USB-C TGVHB — RJ-45, HDMI 4K@60Hz, USB 3.2 Gen1, SD/MicroSD, 1x USB-C

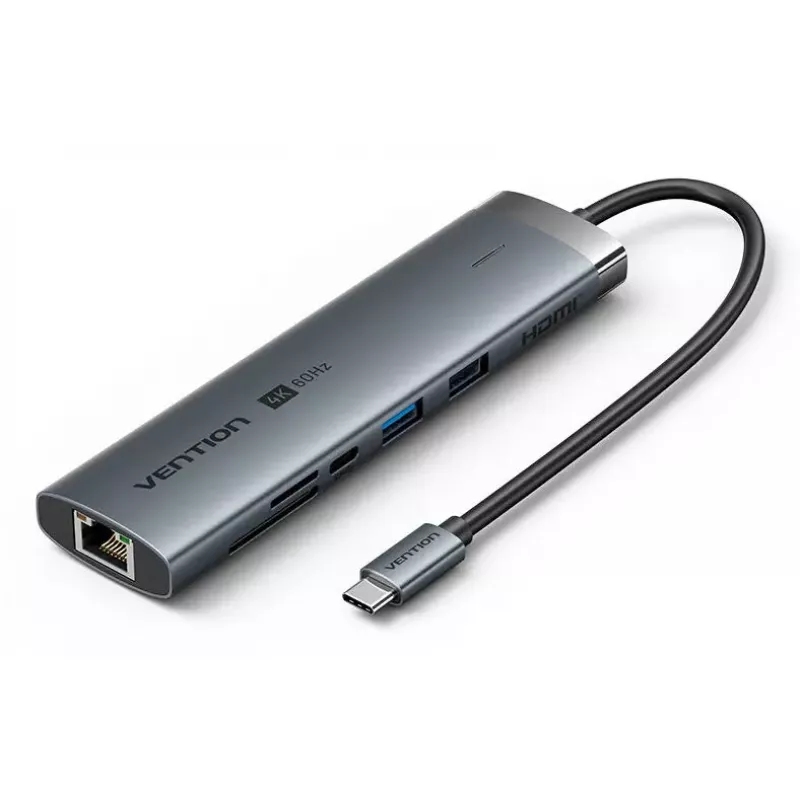

The Vention 9-in-1 USB-C Docking Station TGVHB expands a USB-C host into a compact hub that combines Gigabit Ethernet, a 4K@60Hz HDMI video output, multiple USB ports, an SD/MicroSD card reader and a 3.5 mm audio jack. Designed for laptops, tablets and mobile devices with a USB-C port, this docking station provides network connectivity, external display output and peripheral connections while drawing power from the host device or an external USB-C PD source.

Advantages

This docking station supports HDMI output up to 3840×2160 at 60 Hz and HDR-compatible video, enabling high-resolution external displays. The unit provides a Gigabit RJ-45 Ethernet port for stable wired network access and a USB 3.2 Gen1 Type-A port that allows data transfer rates up to 5 Gbit/s. Integrated SD and MicroSD card readers simplify media workflow without additional adapters. The compact grey housing is built from a combination of aluminium and ABS to balance heat dissipation and portability.

Suitable for

• Connecting a laptop or tablet to a 4K monitor or TV for presentations and extended desktop
• Providing wired Gigabit network access for reliable online work and large file transfers
• Transferring photos and videos from SD or MicroSD memory cards to a computer
• Connecting USB peripherals such as external drives, mice and keyboards

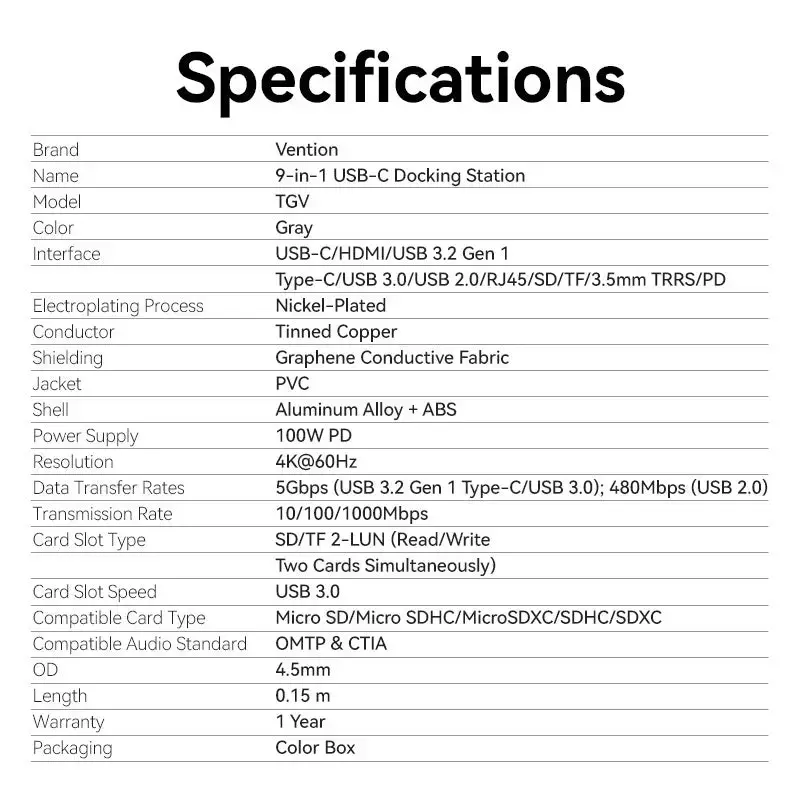

Key specifications

• Host interface: USB Type-C
• Video output: HDMI up to 3840×2160 @ 60 Hz, HDR supported
• Ethernet: Gigabit Ethernet (10/100/1000 Mbit/s) via RJ-45
• USB ports: USB 3.2 Gen1 (5 Gbit/s) Type-A x1, USB 2.0 x1, additional USB-C port
• Card readers: SD and MicroSD compatible (SDHC, SDXC, MicroSDHC, MicroSDXC)
• Audio: 3.5 mm audio jack
• Number of ports: 9
• Power delivery: supports USB Power Delivery passthrough (PD charging while in use)
• Construction: grey housing with aluminium and ABS components

How to use

Connect the docking station to a compatible device using the USB-C host cable. For display output, attach an HDMI cable from the dock to an external monitor or TV; the device will negotiate 4K@60Hz when supported by the host and display. Insert SD or MicroSD cards into the corresponding slots to access media files. Plug USB peripherals into the available Type-A or USB-C ports and connect an Ethernet cable to the RJ-45 port to enable wired networking. If higher charging current is required, connect a USB-C PD power adapter to the host or the dock according to the host device instructions.

Recommendations

Use a host device and display that both support USB-C alt mode and 4K@60Hz to achieve the maximum video resolution; use a USB-C PD adapter when sustained device charging is needed during heavy use. Avoid forcing cards into the reader slots and disconnect the dock from the host before transporting to prevent cable strain.
