Docking station Unitek D1078A — USB-C hub, 2x USB-C input, 1x USB-C output, 100 W PD, 4K support, 3480×2160 max, grey

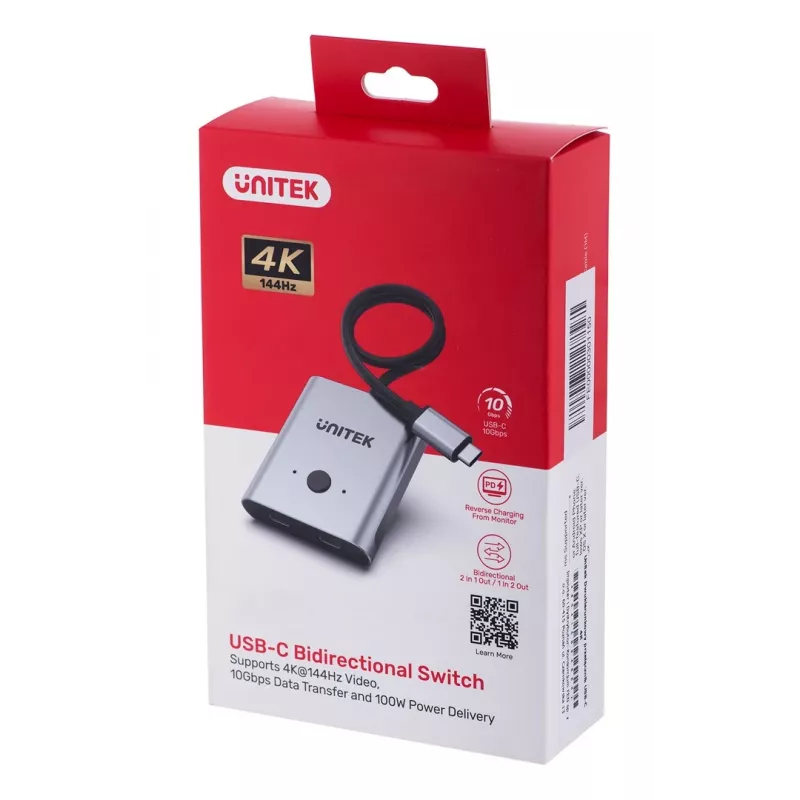

USB-C Bidirectional Switch provides two USB-C inputs to connect two source devices to a single USB-C display, and can also work in reverse as a splitter to route one source to two displays (note: not simultaneous operation). The device supports display output, data transfer and power delivery over USB-C.

Advantages

The switch supports USB-C 10 Gbps data transfer and UHD 4K display at up to 144 Hz. It allows reverse charging from a USB-C monitor and supports Power Delivery charging up to 100 W. Device selection is simplified with a one-key switch button for quick toggling between connected sources.

Key specifications

• Connector type: USB-C
• Modes: Bidirectional (2 inputs to 1 display or 1 input to 2 displays; not simultaneous)
• Display support: UHD 4K @ 144 Hz
• Data transfer: USB-C up to 10 Gbps
• Power Delivery: up to 100 W
• Reverse charging: supported (from USB-C monitor to device)
• Switch control: one-key physical button

How to use

Connect your display to the switch's USB-C display port and connect up to two source devices to the input USB-C ports. Use the one-key button to select the active source. For splitter use, connect one source to the input and two displays to the output ports as required, keeping in mind simultaneous output is not supported. Ensure connected monitor and devices support the required display and Power Delivery specifications for full functionality.
