Docking station RayNeo XRAC-ADA100FO USB‑C Power Delivery HDMI

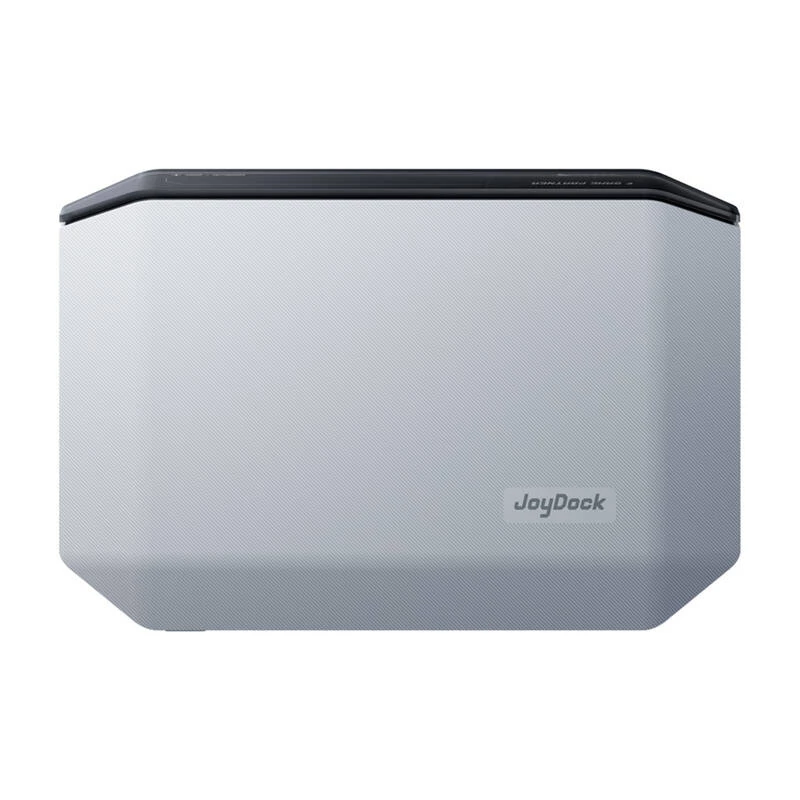

RayNeo Joydock is a compact docking station designed to expand connectivity for USB‑C devices and deliver a portable multimedia experience. It supports connection of devices such as Nintendo Switch, RayNeo Air 2 and DisplayPort‑enabled smartphones, and includes multiple USB‑C ports, HDMI output and a built‑in battery to enable gaming, media playback and charging on the go.

Advantages

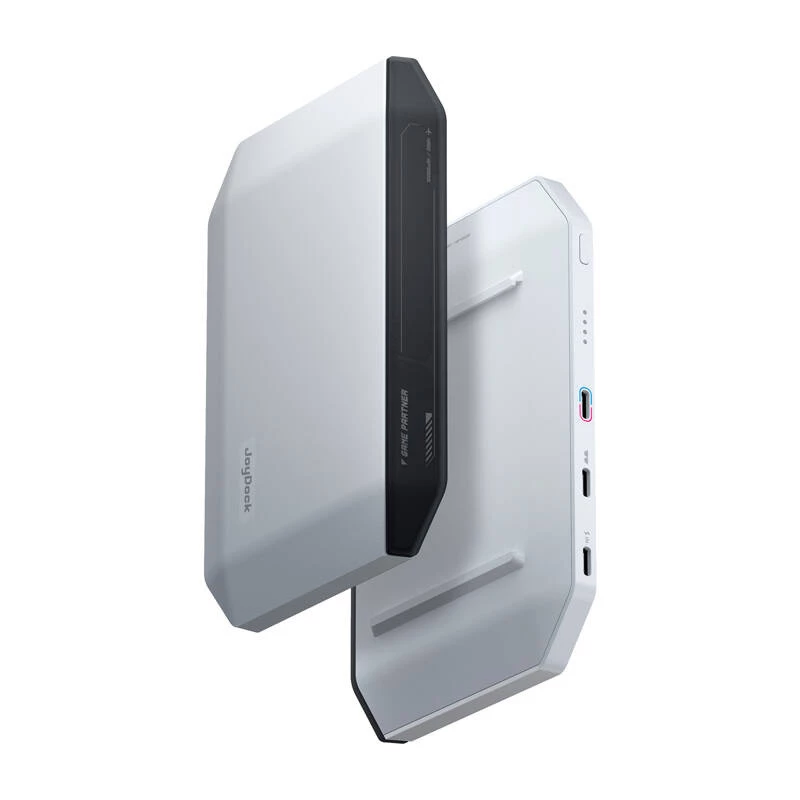

The docking station pairs a compact, travel‑friendly design with a built‑in 10,000 mAh battery and simultaneous charging capability. It provides three USB‑C ports with varied output profiles for device charging and power delivery, an HDMI output for external displays and a form factor that makes it easy to carry. Setup is straightforward: insert the device, secure the connection and start using the external display or charge other devices.

Suitable for

• Playing console games (Nintendo Switch) on an external display

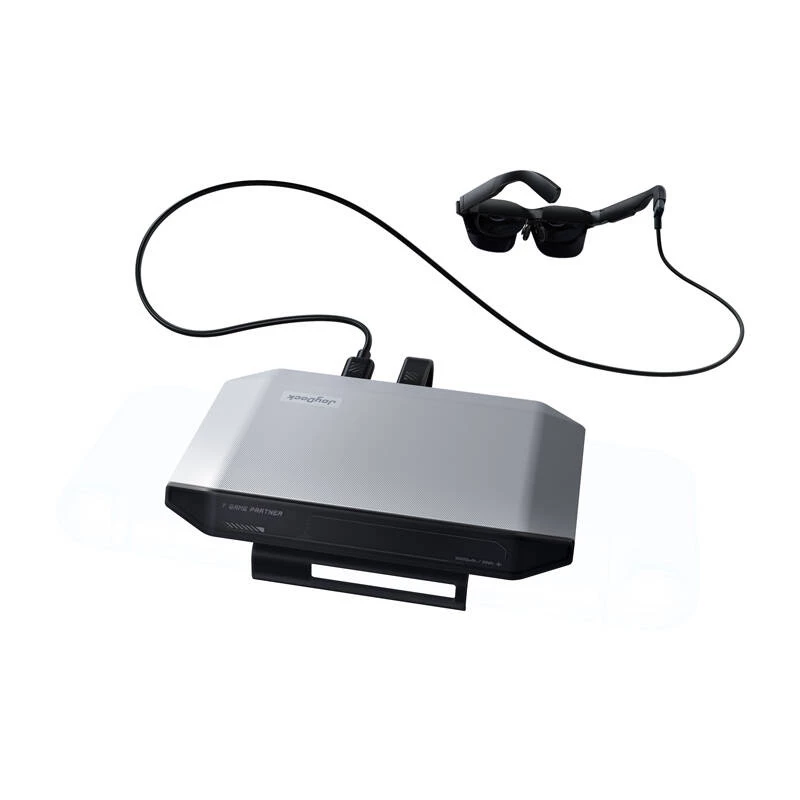

• Using RayNeo Air 2 or other compatible AR/VR accessories with a larger screen
• Connecting DisplayPort‑capable smartphones to HDMI displays
• Mobile work or entertainment where pass‑through charging and external display output are needed

Key specifications

• Dimensions: 150 × 102.6 × 16 mm
• Weight: 282 g
• Battery capacity: 10,000 mAh (2 × 5,000 mAh), rated energy 38 Wh
• USB‑C1 output: 5V/3A, 9V/1.67A, 12V/1.25A, 15V/1A, 20V/0.75A (15 W max)
• USB‑C2 output: 5V/2A (10 W max)
• USB‑C3 output: 5V/3A, 9V/2.22A, 12V/1.67A, 15V/1.33A, 20V/1A (20 W max)
• Combined USB‑C1 + USB‑C2 output: 25 W max

How to use

Place the RayNeo Joydock on a stable surface or fit it to the compatible device according to the device connector orientation. Connect the source device (for example Nintendo Switch, RayNeo Air 2 or a DisplayPort‑enabled smartphone) to the docking station, then connect an HDMI cable from the Joydock to an external display if required. Use the provided USB‑C ports to charge connected devices or provide pass‑through power. Follow on‑screen prompts on connected devices to select external display output when necessary.

Recommendations

For sustained high‑power use, connect the Joydock to an appropriate USB‑C power adapter. Avoid exposing the unit to extreme temperatures and store it partially charged if not used for long periods. Use compatible cables and ensure the connected device supports video output over USB‑C or DisplayPort for proper external display operation.
