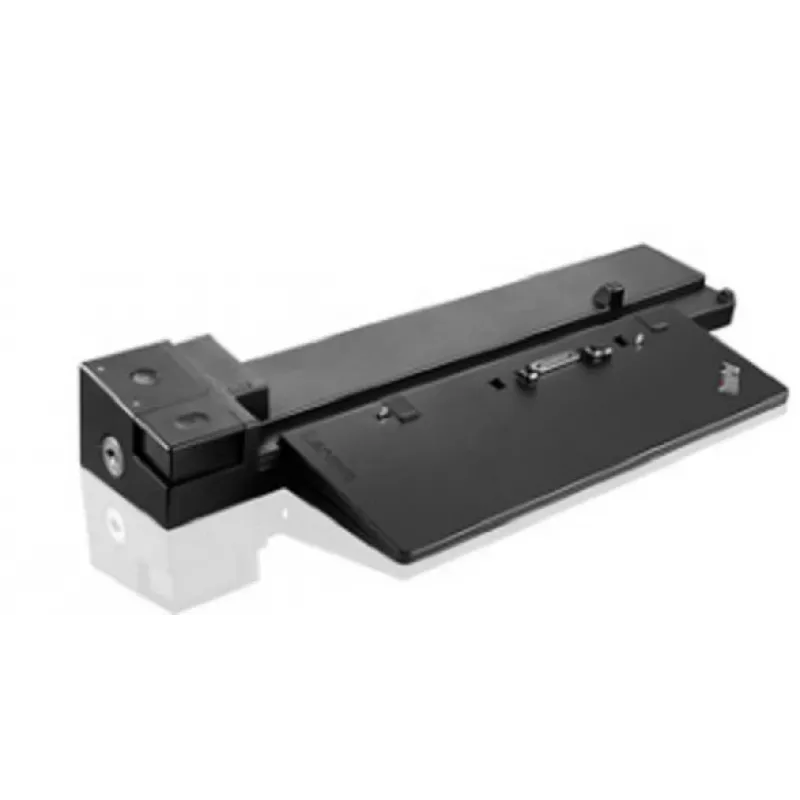

Docking Station Lenovo 40A50230UK Black Ethernet LAN 1000 Mbit/s

The completely redesigned and supercharged ThinkPad Workstation Dock with included ThinkPad 230W AC adapter enhances your work capability with multiple connectivity options. As the ultimate multi-port docking solution, the ThinkPad Workstation Dock includes a range of video outputs, including HDMI 1.4, and DP 1.2 to support multiple external monitors delivering outstanding driver free video quality.

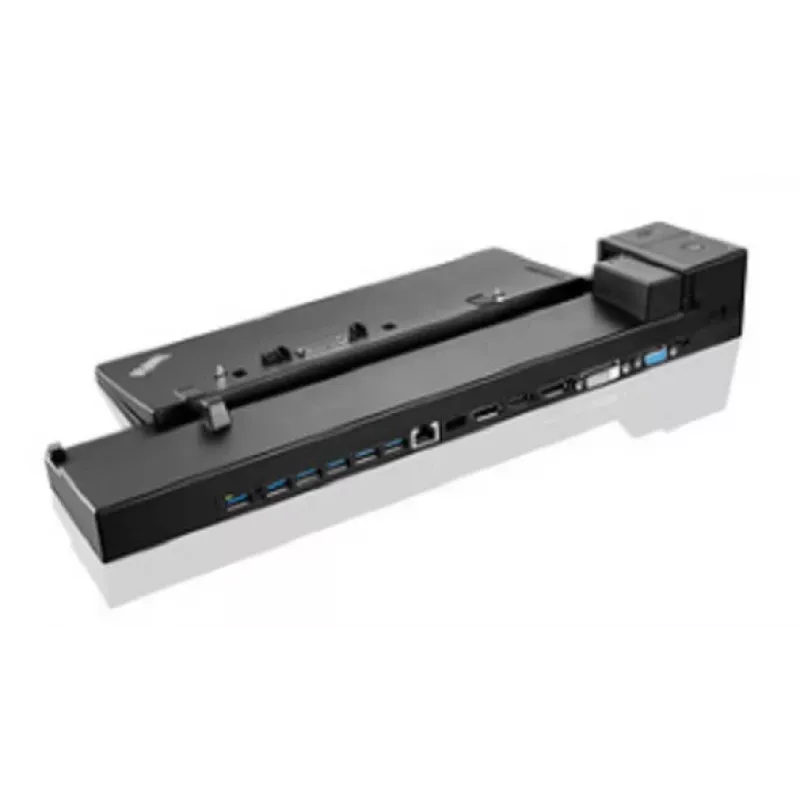

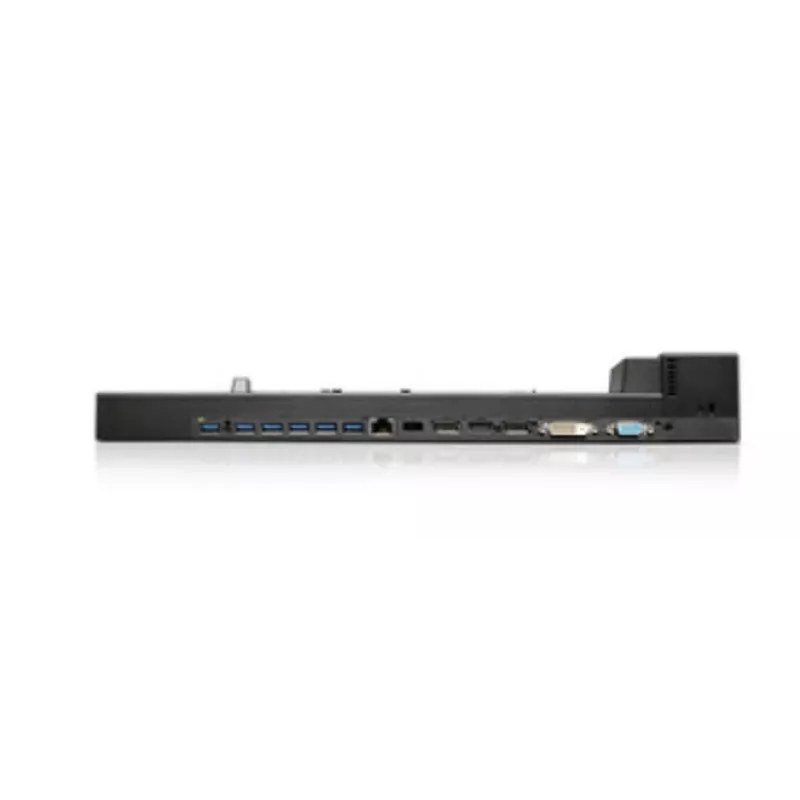

With an enlarged support base, the Workstation Dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230W AC adapter to power and charge your mobile workstation notebook.

Features and Benefits:

• 6 x USB 3.0, one supports always-on USB charging

• 10/1000 Gigabit Ethernet, supports enterprise manageability

• 2 x DisplayPort 1.2*

• 1 x DVI-D*

• 1 x HDMI 1.4*

• 1 x VGA*

• 1 x Stereo/Mic Combo Audio Port

• Driver-free, perfect video quality

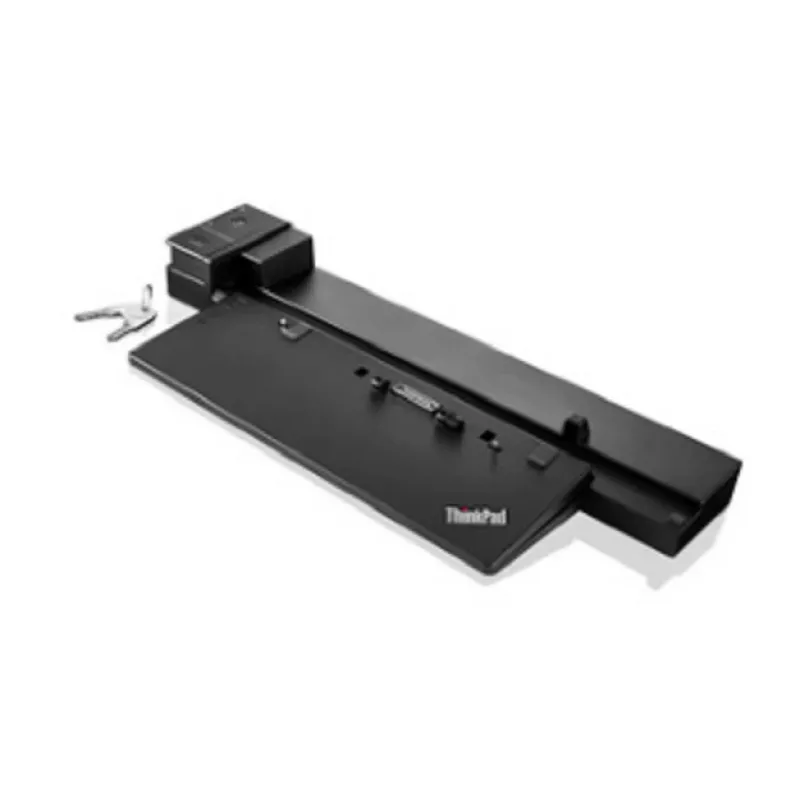

• Security Lock conveniently secures both your notebook and your dock to your desk with a single key

• Physical rear alignment for a perfect dock every time

• Smaller desktop footprint vs Series 3 docking stations

• Comes with ThinkPad AC adapter (230W)



Note:

*Workstation dock is capable of supporting up to 4k2k(3840x2160)@60Hz via either 1 of 2 DP ports, or supporting dual 4k2k@30Hz via 2 DP ports. The actual video output on the dock is based on system video performance, as the video signal is passing through from the system to the Workstation dock.
Some of the video ports have exclusive use and are also dependent on the docked ThinkPad configuration.

For detailed information, please visit Display and Video Output Configurations

How to use

Place the dock on a stable surface and align your compatible ThinkPad mobile workstation with the rear alignment guides, then connect the notebook to the dock until it seats securely. Attach the included 230W AC adapter to the dock and plug it into mains power to provide power and charging to the notebook. Connect displays to the available DisplayPort, HDMI, DVI-D or VGA ports and connect peripherals to the USB 3.0 ports. Use the Ethernet port for wired network access and the audio combo port for headsets or speakers.

Recommendations

Display configurations depend on the host system’s video capabilities. The dock can support up to 3840x2160@60Hz via a single DisplayPort 1.2, or dual 4K@30Hz using two DisplayPort ports. Some ports may be mutually exclusive depending on the docked ThinkPad model; verify your system’s display output configuration for optimal multi-monitor setups.
