Docking Station DeLOCK Dual USB Type-C with HDMI USB 3.2 SD PD 3.0

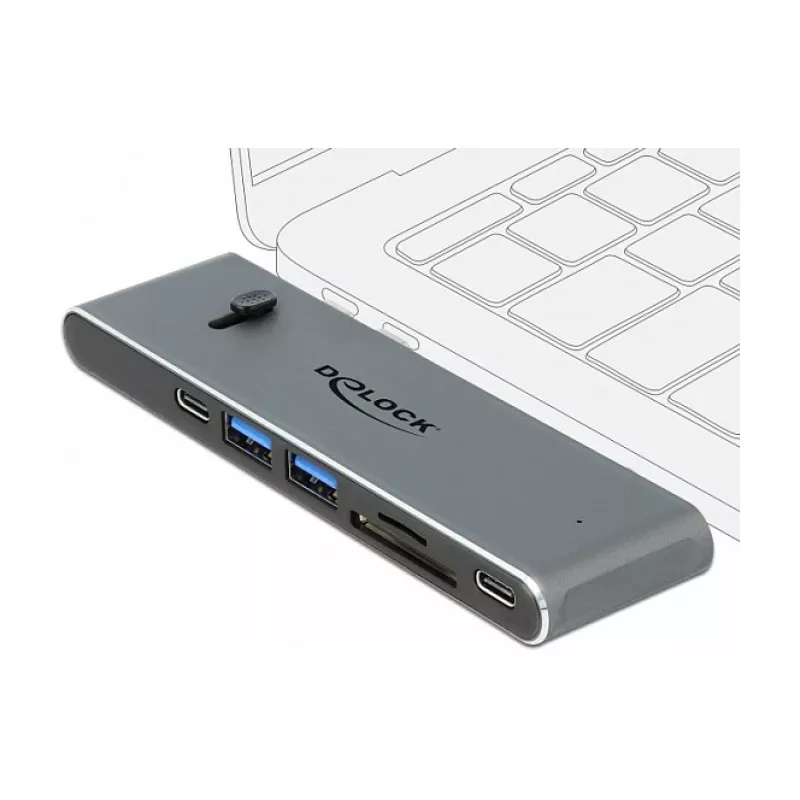

This Delock docking station connects to a MacBook with two adjacent Thunderbolt™ 3 ports (for example MacBook Pro) or to other devices by inserting one of the two USB‑C™ plugs into the housing. It provides an HDMI output supporting up to 4K at 30 Hz, one built‑in USB Type‑C™ port and two USB Type‑A (USB 3.2) ports for peripherals, and an integrated SD and Micro SD card reader. The compact, sturdy housing makes the docking station suitable for travel and everyday portable use.

Advantages

The dock supports USB Type‑C™ pass‑through: when extended between two adjacent USB‑C™ ports on a MacBook, the pass‑through USB‑C™ female port offers full USB‑C™ functionality — up to 10 Gbps data transfer, Power Delivery (PD 3.0) charging up to 100 W, and connection of an additional monitor up to 4K 60 Hz. With MST support it can drive two additional independent extended displays when used in the extended configuration. The device also functions without an external power supply and includes a built‑in SD and Micro SD card reader for mobile device expansion.

Suitable for

• MacBook models with two adjacent Thunderbolt™ 3 / USB‑C™ ports (docking in extended mode)
• Laptops, tablets or smartphones with a USB‑C™ port (using the insertable plug)
• Connecting an external monitor via HDMI (up to 4K 30 Hz) and additional monitor via pass‑through (up to 4K 60 Hz in extended configuration)
• Using USB peripherals via USB Type‑A and USB Type‑C ports
• Reading SD and Micro SD cards from cameras and mobile devices

Key specifications

• Brand: Delock
• Model / MPN: 87752
• EAN: 4043619877522
• HDMI outputs: 1 (up to 3840 x 2160 @ 30 Hz)
• USB Type‑C™ ports: built‑in + 2 insertable plugs (one pass‑through when extended)
• USB Type‑A ports: 2 × USB 3.2 Gen 2 (3.1 Gen 2)
• Card reader: SD and Micro SD slots
• Power Delivery: USB PD 3.0 up to 100 W
• Connectivity: wired
• Colour: Grey

How to use

For MacBook models with two adjacent Thunderbolt™ 3 ports, insert both USB‑C™ plugs into the laptop’s ports so the dock sits between them. In this extended configuration the pass‑through USB‑C™ female port becomes fully functional for data (up to 10 Gbps), charging (PD 3.0) and video output (additional monitor up to 4K 60 Hz) and two additional monitors can be used independently via MST. If you connect the docking station with only a single USB‑C™ port, the pass‑through female port is inactive; the HDMI port will still output up to 4K 30 Hz and the USB ports and card reader remain available. Connect the power adapter to the USB‑C™ PD port to charge a connected laptop or tablet up to 100 W, or use the dock without external power when charging is not required.

Recommendations

Use the extended (two‑plug) connection on compatible MacBook models to enable full pass‑through functionality and multi‑monitor setups; when only one USB‑C™ connection is available, expect the pass‑through port to be inactive and rely on the HDMI output (4K 30 Hz) for a single external display.
