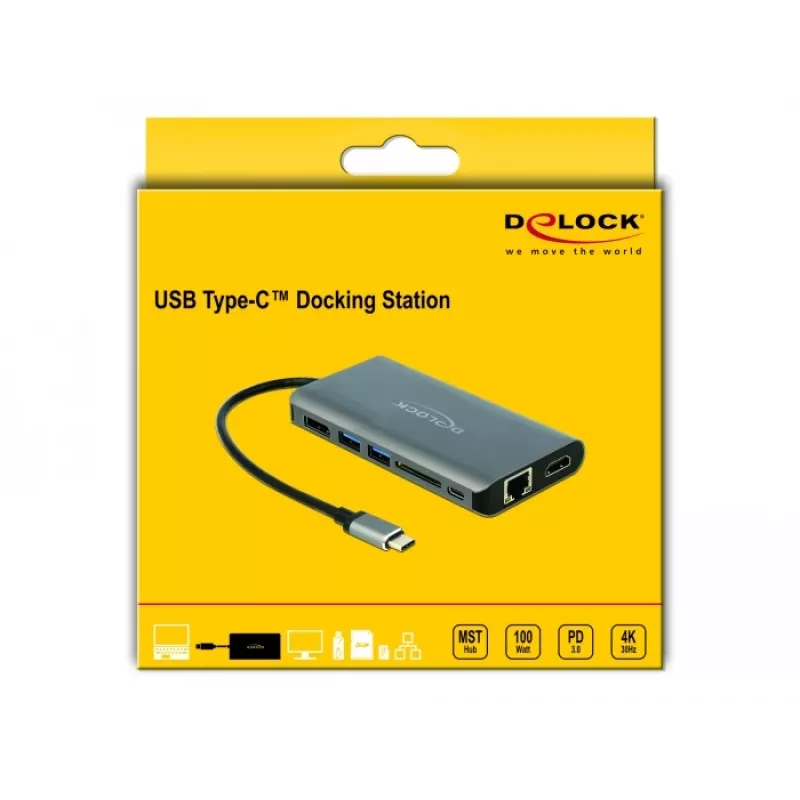

Docking Station DeLOCK 87683

This Delock docking station connects to a computer via USB-C™ with DisplayPort Alt Mode or Thunderbolt™ 3 and offers multiple interfaces for peripherals and displays. It features one DisplayPort and one HDMI output for operating two monitors simultaneously, three USB ports for accessories, a Gigabit Ethernet port and an SD card reader. The compact, robust housing makes it suitable for travel and mobile use.

Advantages

The docking station functions as an MST hub, enabling extended desktop configurations across connected DisplayPort screens. It supports USB Power Delivery (USB PD 3.0) up to 100 W to charge a connected laptop or tablet and to power downstream USB ports. It can also operate without an external power supply, offering flexible use on the go.

Key specifications

• Host interface: USB-C with DisplayPort Alt Mode or Thunderbolt 3
• Video outputs: 1× DisplayPort, 1× HDMI (simultaneous use)
• MST: supports extended desktop configuration; up to 1080p per monitor
• USB ports: 3× USB (type not specified in source)
• Network: Gigabit Ethernet
• Card reader: SD card reader
• Power delivery: USB PD 3.0 up to 100 W
• Design: compact, sturdy housing suitable for travel

How to use

Connect the docking station to a compatible computer USB‑C or Thunderbolt 3 port that supports DisplayPort Alt Mode. Attach monitors to the DisplayPort and HDMI outputs and connect peripherals to the USB ports. If required, connect the laptop power adapter to the docking station’s USB‑C PD port to supply up to 100 W for charging and to power the USB ports. The device can also function without an external power supply, though charging may not be available in that mode.

Recommendations

For dual-monitor extended desktop using MST, ensure the host port supports DisplayPort Alt Mode and that each monitor’s resolution does not exceed 1080p for full support. Use a compatible USB-C power adapter if laptop charging is needed while connected.
