DMX Splitter EUROLITE Split 6X 6-Channel 48.30cm 19 inch rackmount

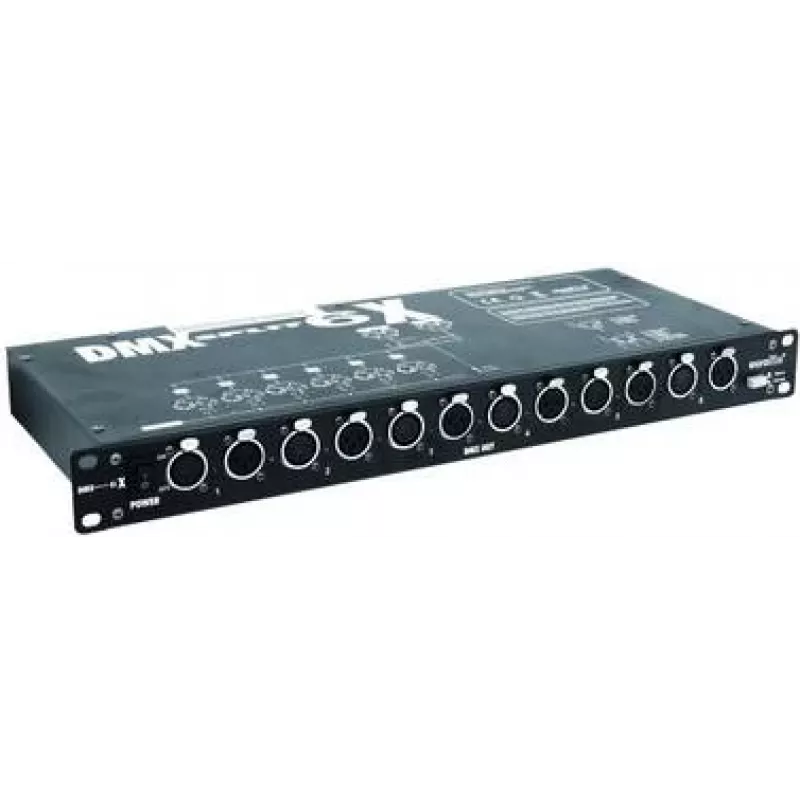

EUROLITE DMX Split 6X is a 6-channel DMX splitter designed for 19" rackmount installations with a width of 48.30 cm. It accepts a single DMX input and provides multiple galvanically isolated DMX outputs, maintaining signal integrity across long cable runs and preventing ground loops or interference between lighting devices. The unit is intended for professional environments where reliable distribution of DMX control data is required.

Advantages

The DMX Split 6X offers galvanic isolation on each output to protect the control source and connected fixtures against electrical interference and faults. Rackmount form factor and compact width allow installation in standard 19" racks while saving space. The device supports stable signal distribution to several lighting devices simultaneously, reducing the need for daisy-chaining and improving system reliability. Durable build and clear input/output labeling simplify setup and maintenance.

Suitable for

Key specifications

How to use

Mount the DMX Split 6X into a 19" equipment rack using the provided mounting points and fasteners. Connect the DMX controller output to the unit's DMX input using a suitable DMX cable, then run DMX cables from each isolated output to individual fixtures or to downstream splitters. Ensure proper termination on the last device in each output line when required. Power the unit according to the manufacturer’s instructions and verify signal continuity and addressing from the controller before a live event.

Recommendations

Place the splitter in a central rack location to minimize cable lengths, label input and output runs for easier troubleshooting, and avoid running DMX cables parallel to high-voltage power lines to reduce interference. Regularly inspect connectors and replace damaged cables to maintain reliable DMX communication.
