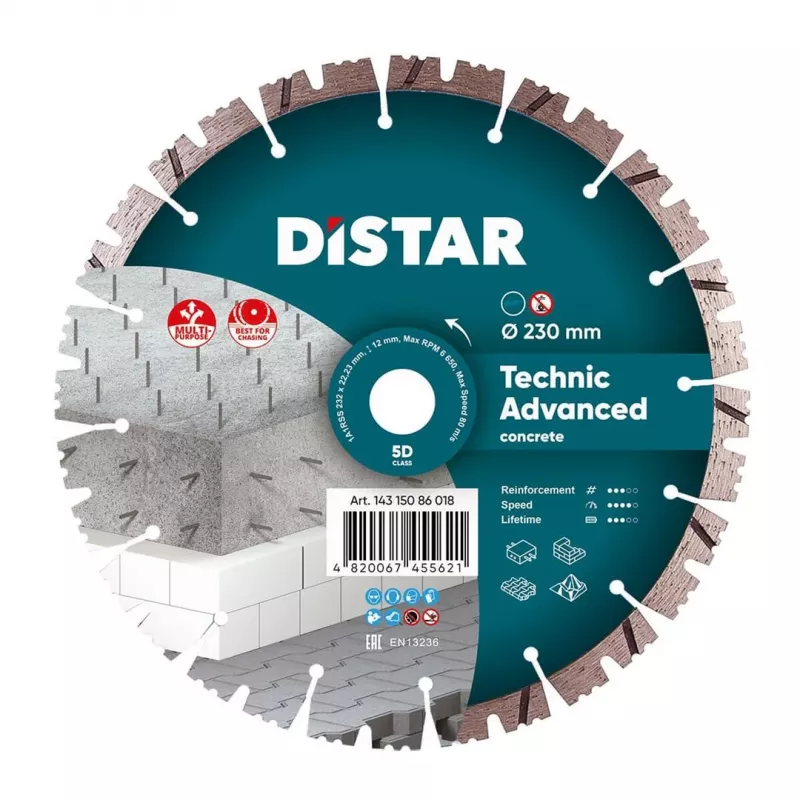

DISTAR TECHNIC ADVANCED Diamond Blade 232 x 2.6/1.8 x 12 x 22.23 mm

Cutting through reinforced concrete, hard stone, and paving slabs demands a blade that stays sharp, runs true, and resists heat build-up. The DISTAR TECHNIC ADVANCED diamond blade delivers exactly that: a 232 mm segmented rim with laser-welded diamond segments on a hardened steel core. The medium-hard bond and 12 mm segment height give you a long service life and consistent cutting speed, even on abrasive materials like granite and sandstone. The 22.23 mm bore fits standard angle grinders and cut-off saws, and the blade is optimized for dry cutting with the option to use water for dust suppression and longer life.

Who is it for

Professional contractors, masons, and serious DIYers who need a reliable blade for daily cutting of concrete, reinforced concrete, brick, and natural stone. It is built for high-speed angle grinders and cut-off saws on construction sites, renovation projects, and landscaping work.

Main features

• 232 mm diameter with 22.23 mm (7/8") bore for standard power tools
• Laser-welded segmented rim with 12 mm diamond segments for long life
• Medium-hard bond suits a wide range of materials from concrete to granite
• Optimized for dry cutting; can be used wet to reduce dust and heat
• Max rotational speed 6600 RPM for high-performance cutting

Specifications

• Blade diameter: 232 mm
• Bore diameter: 22.23 mm (7/8 inch)
• Segment width: 2.6 mm
• Core thickness: 1.8 mm
• Segment height: 12 mm
• Blade design: Segmented
• Cutting application: Dry cutting (wet optional)
• Compatible tools: Angle grinders, cut-off saws
• Primary materials: Reinforced concrete, concrete, paving slabs
• Secondary materials: Granite, brick, sandstone, hard stone
• Max rotational speed: 6600 RPM
• Bond type: Medium-hard
• Cutting edge: Laser-welded segments
• Application type: Professional / Industrial

Tips

For best results, let the blade reach full speed before contacting the material and apply steady, even pressure. If cutting for extended periods, use water to cool the blade and control dust. Always wear appropriate PPE including eye and hearing protection.
