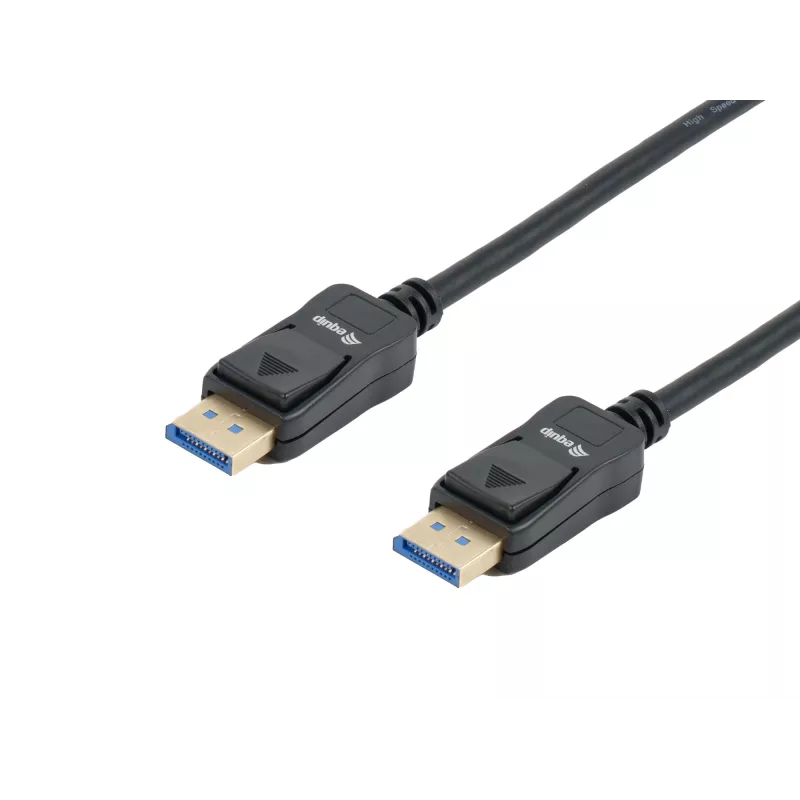

DisplayPort cable EQUIP 119274, 5 m, DisplayPort–DisplayPort, black

EQUIP 119274 is a 5 m DisplayPort-to-DisplayPort cable intended for wired connection between DisplayPort-equipped sources and displays. The cable supports DisplayPort 2.1 and is designed to carry high-bandwidth video and audio signals over a 5.0 m run while remaining backward compatible with earlier DisplayPort revisions. A PVC jacket provides flexibility for routing and installation, and gold-plated contacts aim to maintain reliable electrical contact. The cable is black and suitable for office, studio and home AV setups where a stable, single-cable video link is required.

Advantages

The cable supports DisplayPort 2.1 with up to 40 Gbps data rate and UHBR signalling, enabling high-resolution video transmission and modern display features such as HDR10/HDR10+ and Display Stream Compression (DSC). Backward compatibility with DisplayPort 1.4/1.3/1.2/1.1 ensures it can be used with a wide range of existing graphics cards and monitors. Gold-plated connectors and a flexible PVC jacket reduce the risk of intermittent contact and make routing easier over a 5 m distance. Built-in support for MST and HDCP variants allows multi-monitor configurations and protected content playback where the connected devices support these standards.

Suitable for

• High-resolution single-monitor connections (up to supported resolution and refresh rate)
• Multi-monitor setups using MST-capable displays or hubs
• Gaming and professional graphics where high bandwidth and HDR support are required
• Office and home entertainment installations requiring a 5 m DisplayPort cable

Key specifications

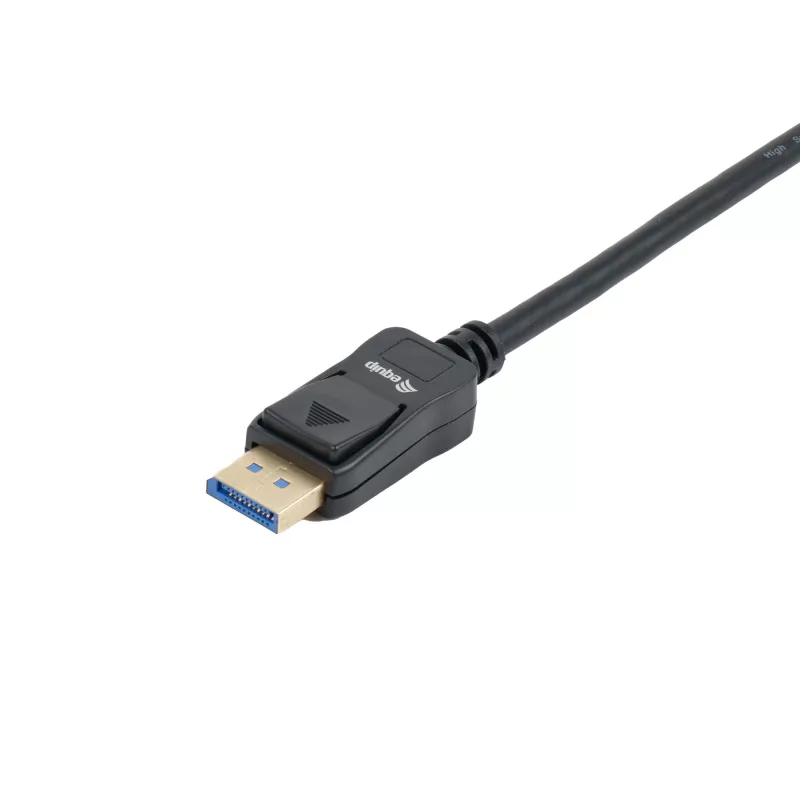

• Connector type: DisplayPort male to DisplayPort male
• DisplayPort standard: 2.1 (backward compatible with 1.4/1.3/1.2/1.1)
• Maximum data rate: up to 40 Gbps
• Maximum supported resolution (device dependent): up to 16K at 60 Hz with DSC
• UHBR: UHBR10 signalling (per-lane up to 10 Gbps)
• Supported features: Display Stream Compression (DSC), Multi-Stream Transport (MST)
• HDR support: HDR10, HDR10+
• Content protection: HDCP 1.4 / 2.2 / 2.3
• Cable length: 5.0 m
• Outer jacket: PVC for flexibility
• Contact finish: gold-plated connectors
• Colour: black
• Weight: approximately 0.229 kg

How to use

Connect one end of the cable to the DisplayPort output on the source device (for example a PC graphics card or docking station) and the other end to the DisplayPort input on the monitor or display. Ensure connectors are fully inserted until they click or seat firmly. Configure the display settings on the source device to select the desired resolution, refresh rate and HDR options; devices that support DSC or MST may require additional configuration in the graphics driver or monitor OSD. For multi-monitor chains using MST, follow the monitor and GPU vendor instructions to enable daisy-chaining and allocate display bandwidth appropriately.
