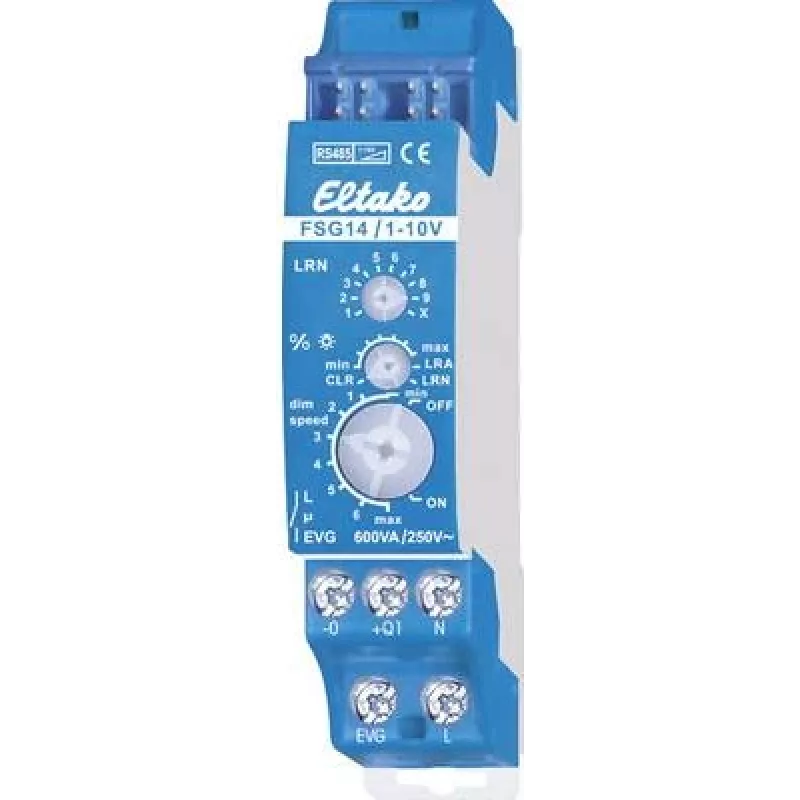

Dimmer switch Eltako FSG14/1-10V 1–10V control device for lighting control

Eltako FSG14/1-10V is a 1–10V control device for lighting control that generates standardized low-voltage control signals for compatible electronic ballasts and LED drivers. Designed for DIN-rail mounting, the device provides centralized or local dimming capability for retrofit projects and new installations. It supports smooth, continuous adjustment of light levels to achieve appropriate illumination and potential energy savings in commercial and residential environments.

Advantages

The Eltako FSG14/1-10V offers reliable 1–10V dimming control with a form factor suitable for standard distribution cabinets. It provides stable control output for a variety of loads and is engineered for integration into lighting systems where consistent low-voltage control signals are required. The unit simplifies installation on DIN rails and is compatible with many 1–10V ballasts and LED drivers, enabling uniform dimming behavior across connected luminaires.

Suitable for

Key specifications

How to use

Install the device on a standard DIN rail inside the distribution cabinet and connect the low-voltage 1–10V control wires to the compatible ballasts or LED drivers according to wiring guidelines. Ensure power is isolated before making connections. After wiring, apply mains power and adjust the connected lighting system using the 1–10V control signal from a suitable controller or dimmer interface. Verify correct polarity and signal range to ensure smooth dimming performance.

Recommendations

For reliable operation, use compatible 1–10V ballasts and LED drivers and follow applicable installation standards. Confirm the total connected load remains within the device's rated capacity and use appropriate overcurrent protection. When integrating into larger control systems, coordinate wiring and control signal sources to avoid conflicting outputs.
