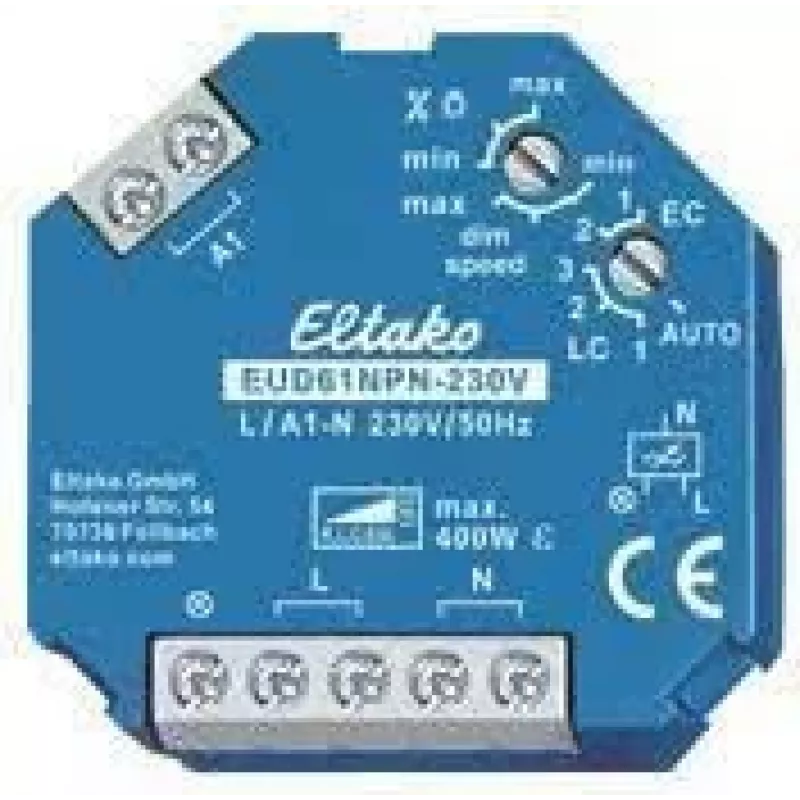

Dimmer switch Eltako EUD61NPN-230V 230V Power MOSFET for lighting control

Eltako EUD61NPN-230V (61100802) is a 230V Power MOSFET dimmer switch for controlling lighting circuits. Designed for mounting in switch boxes or distribution panels, it enables stepless dimming of compatible mains-voltage lamps and can be integrated into electrical installations to adjust light levels and manage power consumption.

Advantages

The Eltako EUD61NPN-230V provides smooth, flicker-free dimming using a Power MOSFET output stage suitable for many mains-voltage lamps. Its compact form factor allows installation in standard switch boxes or distribution cabinets. The device supports precise load regulation, improving comfort and enabling more efficient use of lighting energy without requiring additional external components.

Suitable for

Key specifications

How to use

Install the dimmer in a suitable switch box or distribution panel following local electrical codes. Connect the mains supply and the load in accordance with the wiring diagram provided by the manufacturer. After installation, adjust the lighting level using the connected control (switch or dimmer actuator) to achieve the desired brightness. Ensure the connected lamps are compatible with MOSFET dimming at mains voltage.

Recommendations

Use the Eltako EUD61NPN-230V with lamps specified for mains dimming and verify load compatibility and maximum load values before installation. For safe installation and compliance with regulations, use a qualified electrician and consult the manufacturer's documentation.
