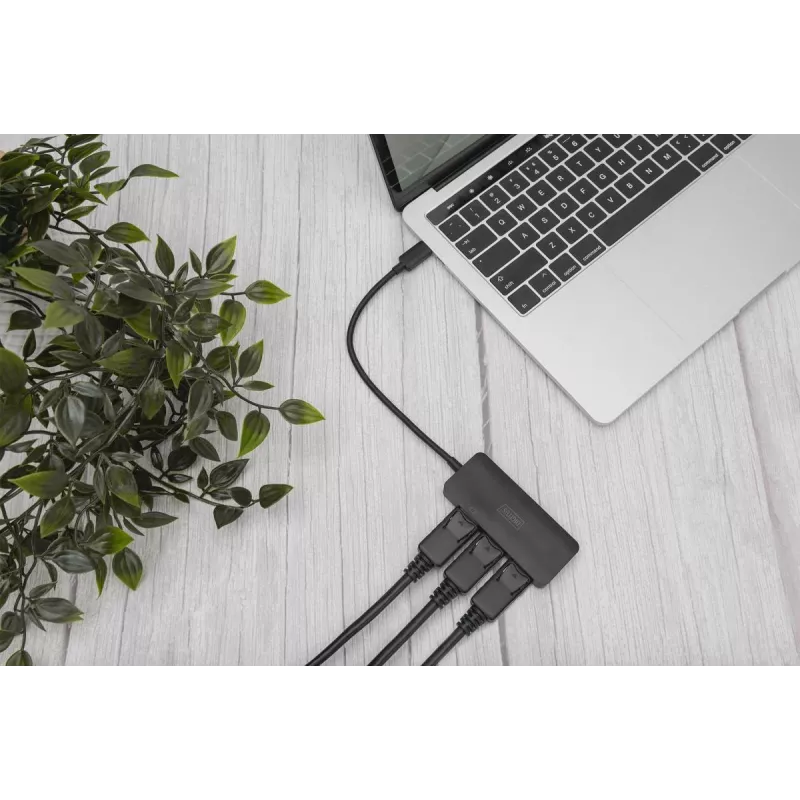

DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz

DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
DIGITUS USB-C - 3x DP MST Video Hub DP 1.4. 4K/60Hz
R1,062
MST Hub for connection of up to 3 external monitors via a video output on the notebook/PC - Increase your productivity with multiple screens- Supports DP 1.4 (Alt mode) with maximum 8.1 Gbps per channel, max. 32.4 Gbps on 4 channels- Supports Windows OS (11, 10)- Resolutions 3 external monitors - MS... Read More
Stock 2 Code 302613 Brand DIGITUS Model DS-45334 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

MST Hub for connection of up to 3 external monitors via a video output on the notebook/PC - Increase your productivity with multiple screens

- Supports DP 1.4 (Alt mode) with maximum 8.1 Gbps per channel, max. 32.4 Gbps on 4 channels
- Supports Windows OS (11, 10)
- Resolutions 3 external monitors - MST mode: max. 1x 4K/60Hz + 2x 4K/30Hz
- Resolutions 2 external monitors - MST mode: max. 2x 4K/60Hz
- Power supply via a USB-C™ connection - BUS powered
- No driver or software required - Configuration via the display settings in Windows OS
- Supports 3 display modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays)
- Supports HDCP 2.2 / 1.4 as well as HDR (High Dynamic Range)
- Supports MST (Multi Stream Transport) & SST - Single Stream Transport

The DIGITUS® MST Hub uses Multi Stream Transport (DisplayPort™ 1.2 function), which allows multiple AV signals to be transported over a single cable. This enables the use of multiple monitors that are connected via the MST Hub configuration. The MST Hub can distribute different video streams to the three connected screens. In general, it supports three reproduction modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays).

Key Highlights
  • 1x USB-C™ input
  • 3x DisplayPort output
  • Supports DP 1.4 (Alt mode) with maximum 8.1 Gbps per channel, max. 32.4 Gbps on 4 channels
  • Supports Windows OS (11, 10)
  • Resolutions 3 external monitors - MST mode: max. 1x 4K/60Hz + 2x 4K/30Hz
  • Resolutions 2 external monitors - MST mode: max. 2x 4K/60Hz
  • Power supply via a USB-C™ connection - BUS powered
  • No driver or software required - Configuration via the display settings in Windows OS
  • Supports 3 display modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays)
  • HDCP 2.2 & 1.4
  • Supports HDR (High Dynamic Range)
  • Supports MST (Multi Stream Transport) & SST - Single Stream Transport
  • Housing: ABS
  • Operating temperature: 0-45 °
  • Standby power consumption: approx. 1W
  • Dimensions: L 25.2 x W 3.6 x H 1.15 cm
  • Weight: 51 g
  • Color: Black
  • Note:
  • To achieve the resolutions stated above, the host PC should support DP 1.4 (Alt mode). If your PC only supports DP 1.2, the corresponding resolutions are reduced due to the bandwidth restriction
  • The resolution combinations stated above are a theoretical reference, the actual resolutions depend from the connected host PC as well as the display
  • In order to use the full scope of features, make sure that your device (graphics card) uses DP 1.4.
  • If you use a DisplayPort 1.1 graphics card, the MST Hub acts as a splitter and mirrors your video source on all displays
  • Functionality can be restricted depending on the specifications of your device and operating system
  • MST Hubs cannot increase the number of screens supported by a graphics card. Every graphics card has a limited number of screens that it can support. Please check your specifications in advance.
  • Requires at least a host system with DP 1.2/HBR2/MST or higher (recommended)
  • Supports AMD, Nvidia and Intel graphics cards
Specifications
Country of origin
China
Data transfer rate
32.4 Gbit/s
Depth
252 mm
HD type
4K Ultra HD
HDCP
Yes
HDCP version
1.4/2.2
Height
11.5 mm
High Dynamic Range (HDR) supported
Yes
Housing material
Acrylonitrile butadiene styrene (ABS)
Maximum refresh rate
60 Hz
Maximum resolution
3840 x 2160 pixels
Number of displays supported
3
Operating temperature (T-T)
0 - 45 °C
Package depth
20 mm
Package height
160 mm
Package volume
256 cm³
Package weight
92.65 g
Package width
80 mm
Plug and Play
Yes
Power consumption (standby)
1 W
Product colour
Black
Quantity per pack
1 pc(s)
UK Trade Tariff code
85437090
USB powered
Yes
Video out
3x DisplayPort
Video port type
DisplayPort
Video ports quantity
3
Weight
51 g
Width
36 mm
Windows operating systems supported
Windows 10, Windows 11
