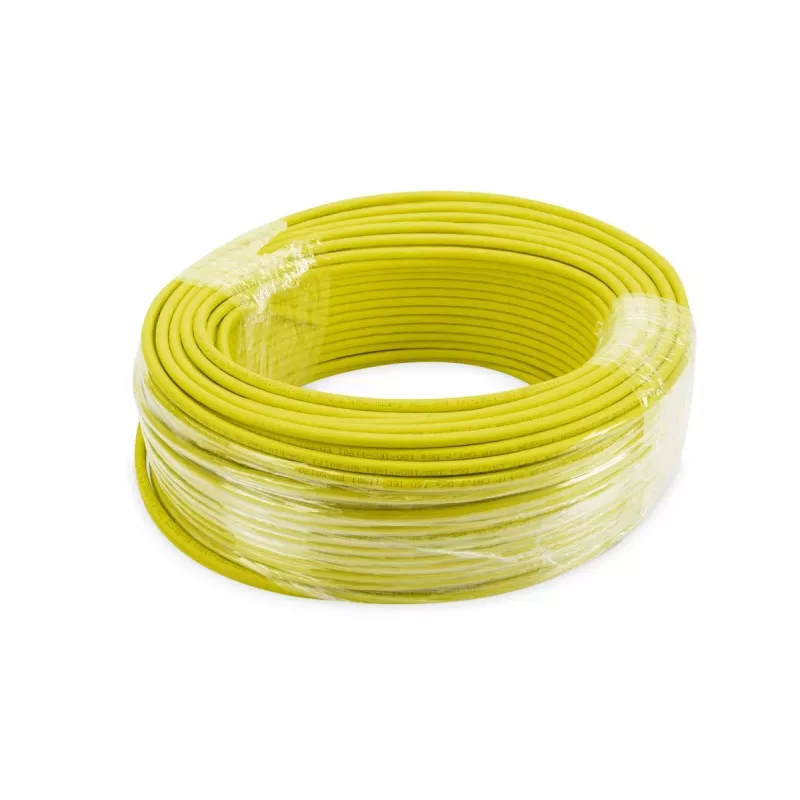

DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow

DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 100m - Yellow
R2,684
Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 1500 MHz transmission frequency- GHMT PVP certified- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)- BauPVO class Dca-s1a d1 a1The Digitus Cat 7 installation cable is designed for use in structured data centers and building ... Read More
Stock 4 Code 114288 Brand DIGITUS Model DK-1743-A-VH-1 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 1500 MHz transmission frequency
- GHMT PVP certified
- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
- BauPVO class Dca-s1a d1 a1

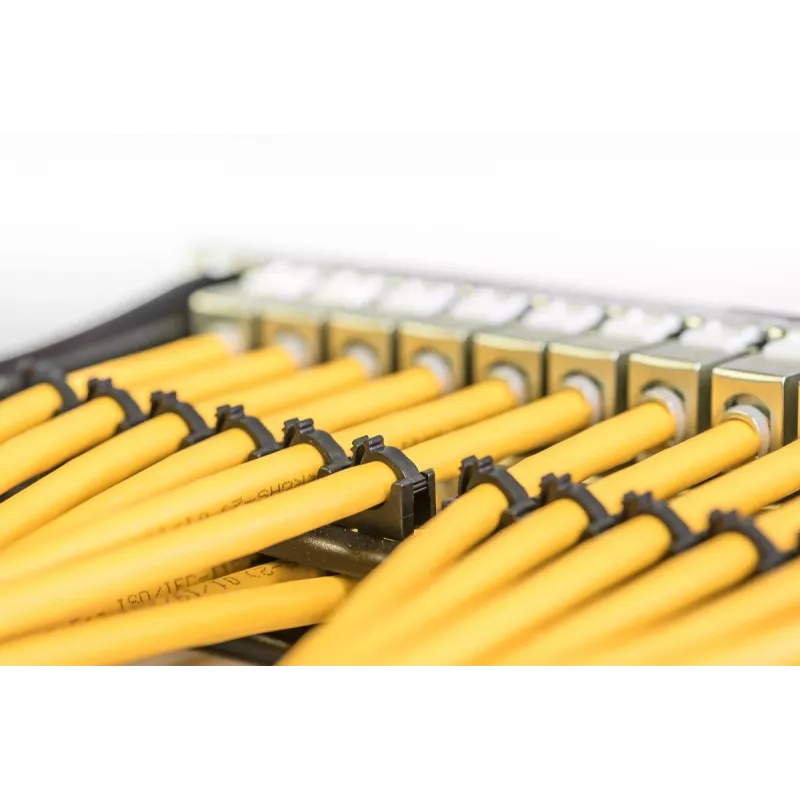

The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Key Highlights
  • Physical properties:
  • Conductor: Bare copper wire, AWG 22/1
  • System(s) of assessment and verification of constancy of performance: System 3
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
  • Overall shielding: tinned copper braiding
  • Outer sheath: Dca-s1a d1 a1acc. to EN 50575; LSZH
  • Outer sheath thickness (nominal): 0.60 mm (Dca); 0.60 mm (Cca)
  • Outer sheath color: Yellow (RAL 1016)
  • Mechanical properties:
  • Strain relief: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +60 °C
  • Installation temperature range: 0 to +50C
  • Outer diameter (nominal): 7.8 mm (Dca); 7.8 mm (Cca)
  • Weight (kg/km): 65 kg (Dca); 65 kg (Cca)
  • Electrical properties:
  • Impedance: 100±5 Ohm @ 1-1000 MHz
  • Capacitance: 40 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • Loop resistance: 147 Ohm/Km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 10 nS/100 m max.
  • Separation class: "d" according to EN 50174-2
  • NVP: 79%
  • Flame spread: EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosivity: EN 60754-1/2 (LSOH)
  • Smoke density: EN 61034-2
Specifications
AWG wire size
22/1
Cable length
100 m
Cable shielding
S/FTP (S-STP)
Cable standard
Cat7a
Certification
CPR class Dca
Conductor material
Copper
Conductor type
Solid
Connector 1
No
Connector 1 gender
No
Connector 2
No
Connector 2 gender
No
Country of origin
China
Data transfer rate
10000 Mbit/s
Doesn't contain
Halogen
Frequency
1500 MHz
Harmonized System (HS) code
84733080
Jacket material
Low smoke zero halogen (LSZH)
Master (outer) case gross weight
5.68 kg
Master (outer) case height
160 mm
Master (outer) case length
280 mm
Master (outer) case volume
12544 cm³
Master (outer) case width
280 mm
Operating temperature (T-T)
-20 - 60 °C
Package depth
280 mm
Package volume
12544 cm³
Package weight
5.68 kg
Package width
280 mm
Power over Ethernet (PoE)
Yes
Product colour
Yellow
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 75 °C
UK Trade Tariff code
85444920
