Electrical enclosure Rittal PK 9507.000 polycarbonate IP66, 110×90×110 mm

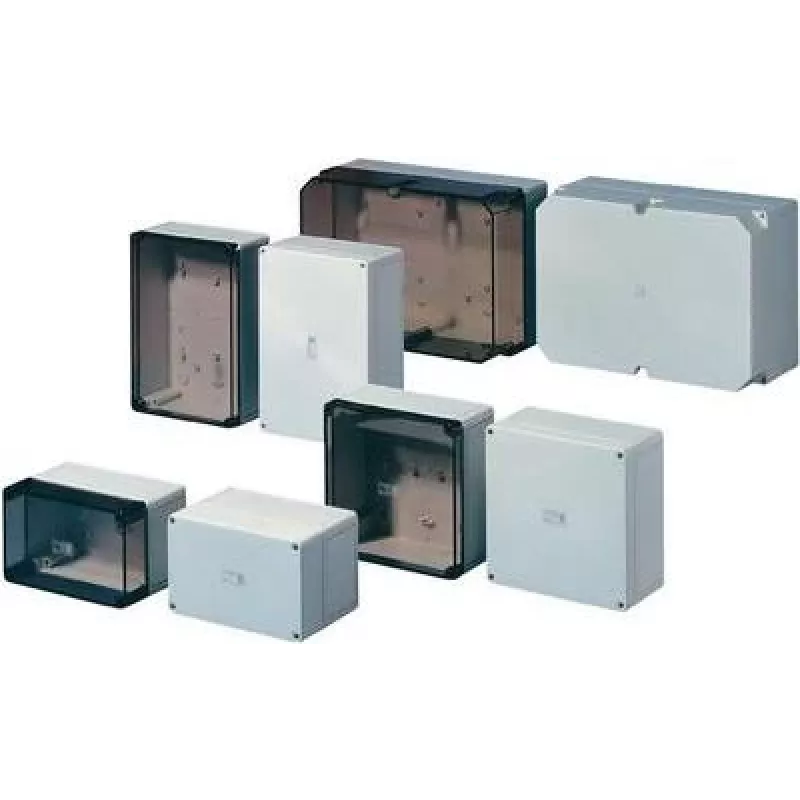

Rittal PK 9507.000 is a compact electrical enclosure made of fibre-glass reinforced polycarbonate with the option of a grey or transparent cover. With external dimensions of 110 × 90 × 110 mm and an IP66 rating, this enclosure is designed for wall or surface mounting and for protecting small electrical components, terminals and control devices from dust ingress and powerful water jets in industrial and outdoor environments.

Advantages

The polycarbonate construction reinforced with fiberglass provides mechanical strength, impact resistance and long-term weatherability while keeping the unit lightweight. The IP66 protection level ensures reliable sealing against dust and high-pressure water jets. Available with a transparent cover for visual inspection or a grey cover for discreet installations, the enclosure offers flexibility for different monitoring and aesthetic needs. Its compact footprint allows installation in confined spaces and on standard mounting surfaces.

Suitable for

• Housing small control modules and terminal blocks in industrial equipment
• Protecting sensor electronics and connection points in outdoor installations
• Surface or wall-mounted junction boxes for machinery and automation panels
• Enclosures for inspection-visible components when using the transparent cover

Key specifications

• Material: fibre-glass reinforced polycarbonate (PC)
• Protection class: IP66 (dust-tight and protected against powerful water jets)
• External dimensions: 110 mm (width) × 90 mm (depth) × 110 mm (height)
• Cover options: transparent or grey
• Mounting: wall or surface mounting
• Typical applications: small electrical components, terminals, control devices

How to use

Mount the enclosure on a suitable flat surface or wall using appropriate fasteners for the mounting substrate. Open the cover and position components and terminal blocks inside, securing them to the internal mounting points or using an internal panel if required. Route cables through appropriate gland entries or pre-cut knockouts and seal around entries to maintain IP66 protection. Close and fasten the cover according to the manufacturer’s instructions to ensure the enclosure retains its ingress protection.

Recommendations

For outdoor or exposed installations, choose the transparent cover only if visual inspection is required and ensure UV-exposed installations are checked periodically for material aging. Use compatible cable glands and grommets sized to the cable diameters and follow local electrical installation regulations to preserve the enclosure’s IP66 performance.
