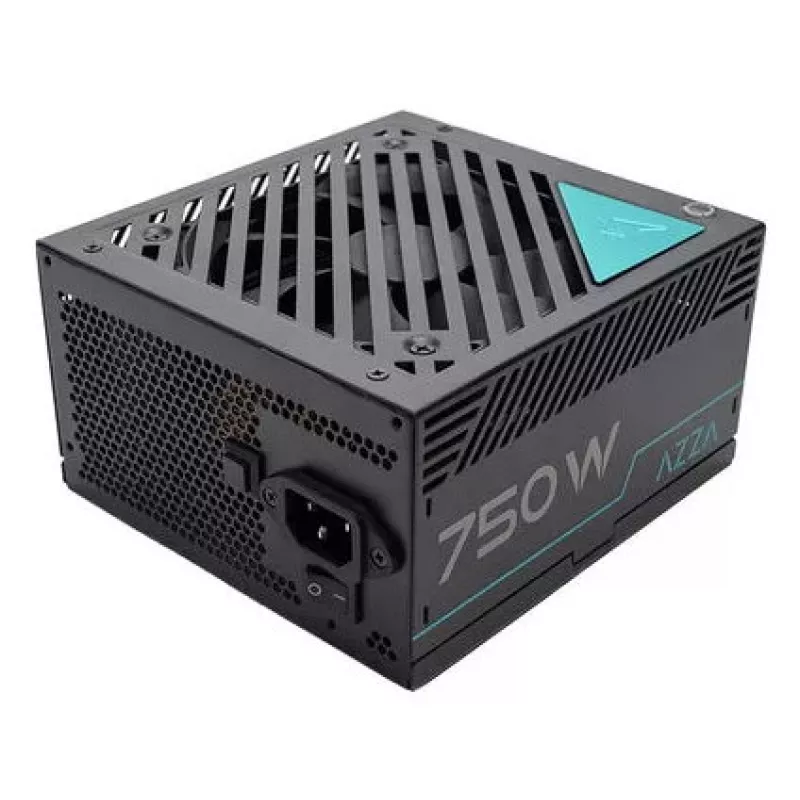

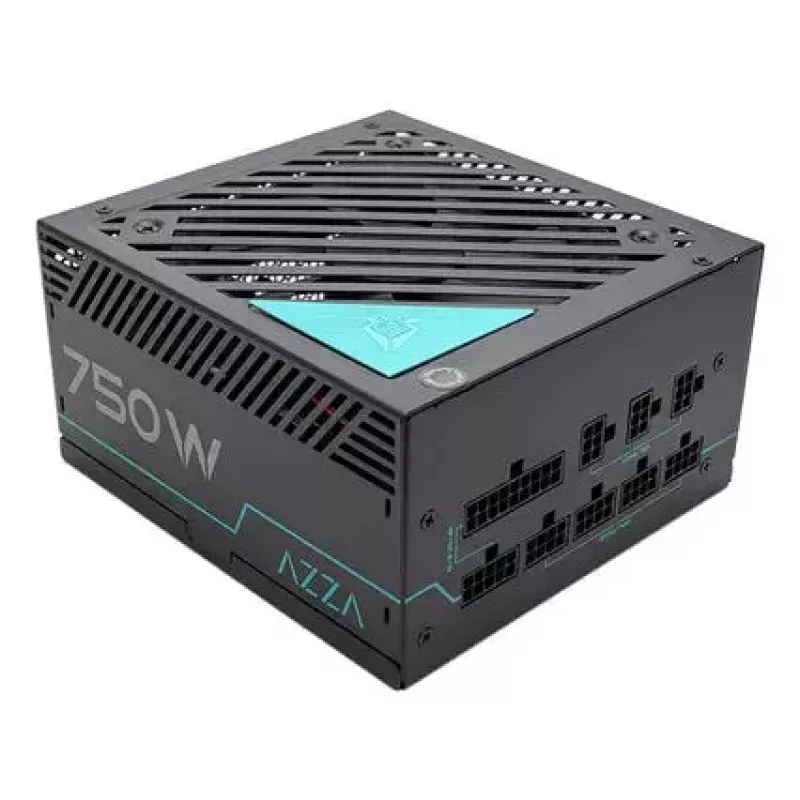

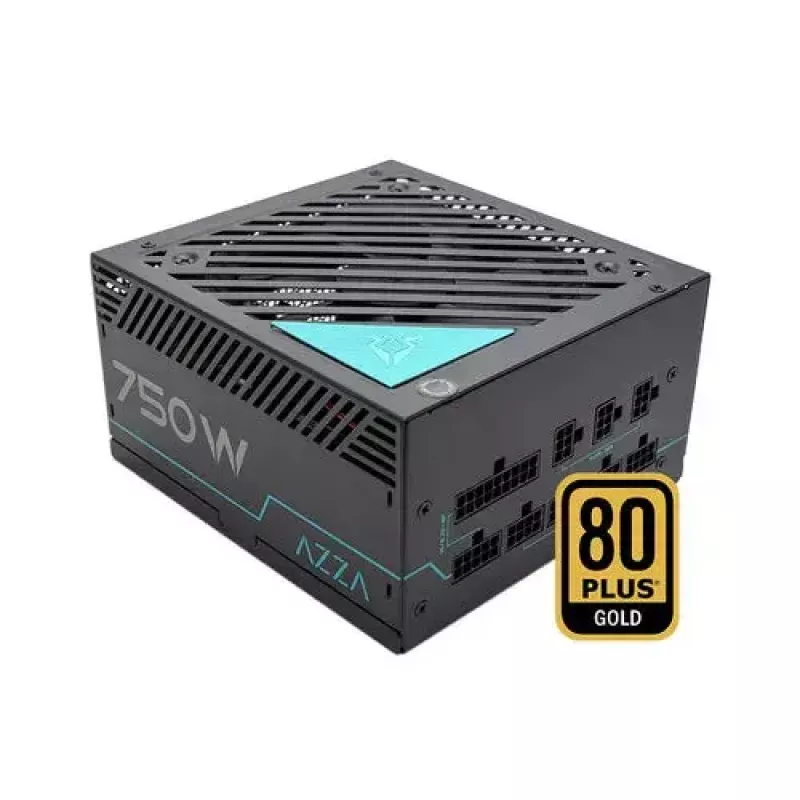

Power Supply Unit Azza PSAZ-750G 750 W

The Azza PSAZ-750G 750 W power supply unit provides stable 750 W output with a 20+4 pin ATX connector and wide AC input range (100–240 V). Certified 80 PLUS Gold, it achieves around 91.19% efficiency under typical load to reduce energy consumption and excess heat. The PSU includes built-in protections for over current (OCP), over power (OPP), over voltage (OVP) and short circuit (SCP), and is compliant with CB, CE, FCC, RoHS and cTUVus standards. A 120 mm cooling fan and smart fan control ensure effective thermal management.

Advantages

80 PLUS Gold certification delivers high conversion efficiency, lowering operating costs and waste heat. The unit’s multiple protection mechanisms improve system safety and component longevity. Smart fan control with a rear button enables ARGB mode and zero RPM mode for quieter operation when load allows. Compact black housing with a standard 20+4 pin ATX connector simplifies installation in compatible PC cases.

Suitable for

• Mid-range and high-performance desktop systems requiring up to 750 W
• Gaming PCs and content-creation rigs with standard ATX motherboards
• Systems where energy efficiency and reduced heat output are priorities

Key specifications

• Total power: 750 W
• Motherboard connector: 20+4 pin ATX
• 80 PLUS certification: 80 PLUS Gold (≈91.19% efficiency under typical load)
• Fan diameter: 120 mm
• AC input voltage: 100–240 V
• Protections: OCP, OPP, OVP, SCP
• Standards: CB, CE, FCC, RoHS, cTUVus
• Colour: Black

How to use

Install the Azza PSAZ-750G in a compatible ATX case and connect the 20+4 pin ATX cable to the motherboard. Connect necessary peripheral and GPU power connectors as required by your system configuration. Ensure the AC power cable is connected to a suitable mains outlet within the 100–240 V range. Use the rear control button to switch between ARGB illumination modes or enable Zero RPM mode for quieter operation when thermal conditions permit.

Recommendations

For reliable performance, ensure adequate case airflow and avoid exceeding the PSU’s rated load. Regularly inspect connectors and cables for secure seating. Use Zero RPM mode when idle or under light load to reduce noise; switch to full fan operation when high sustained loads increase internal temperature.
