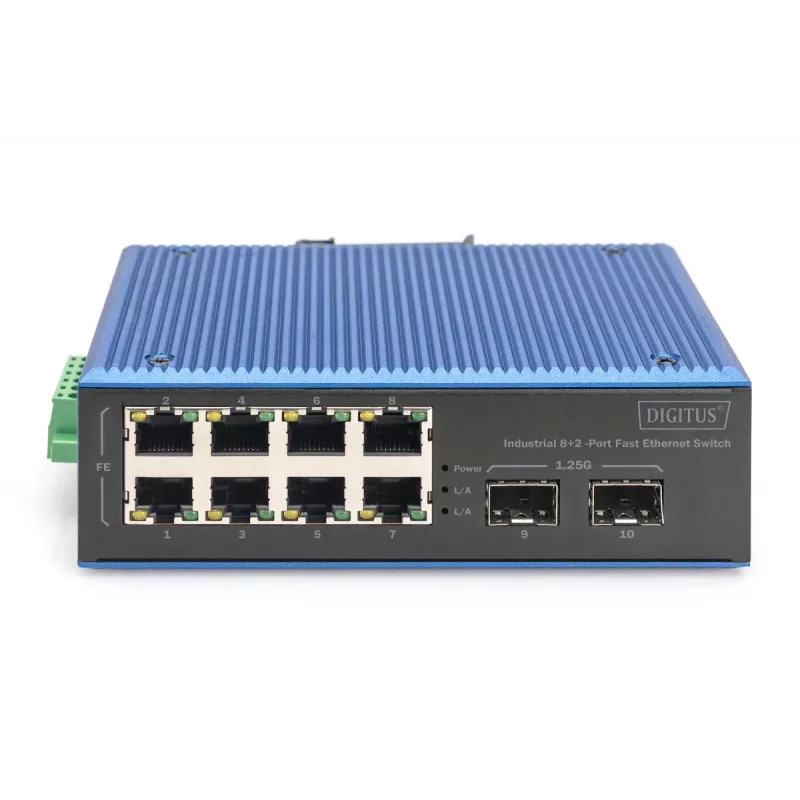

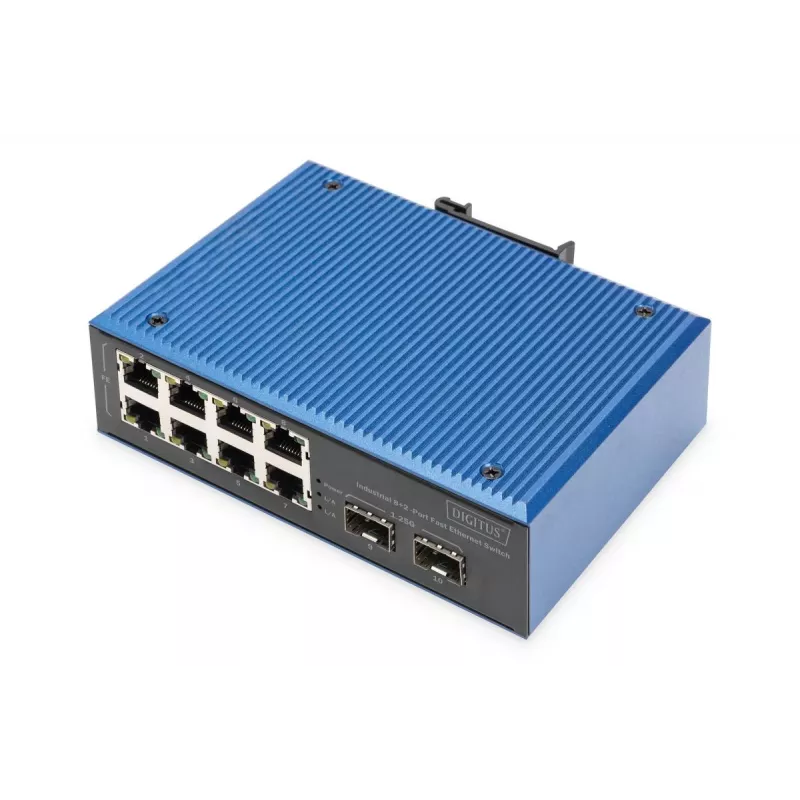

DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports

DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
DIGITUS Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45 2 GE SFP Ports
R1,850
8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.- Number of network connections: 8 port FE, 2 SFP GE ports- Transmission speed of the RJ45 network ports: 8 x 10/100 Mbit (RJ4... Read More
Stock Out Of StockNo Stock Code 119197 Brand DIGITUS Model DN-651146 Warranty 2 Years

Shipping & Returns

8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- Number of network connections: 8 port FE, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 8 x 10/100 Mbit (RJ45)
- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)
- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard

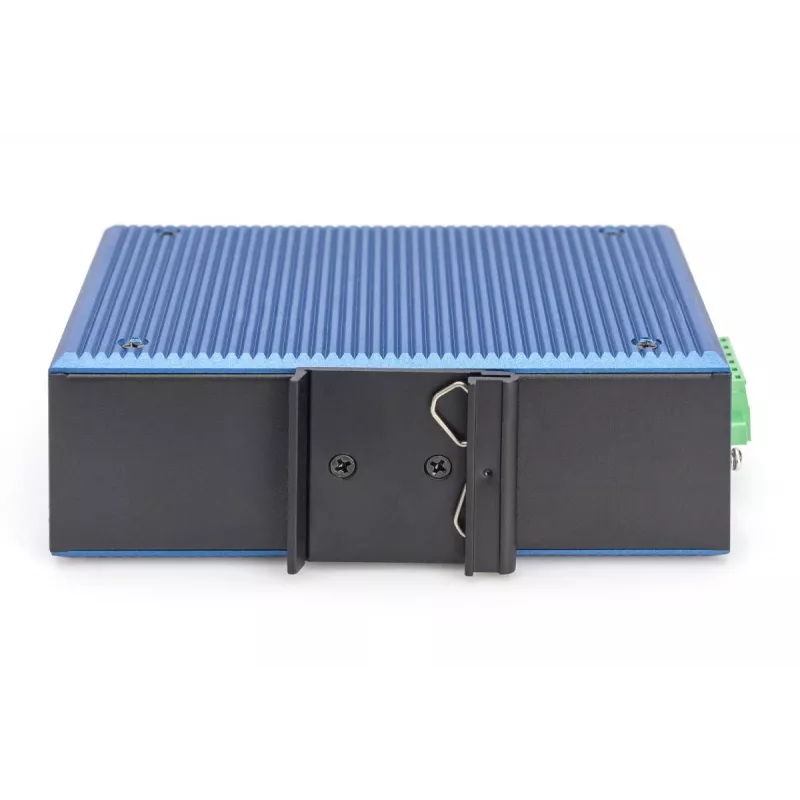

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651146 is a robust 8+2 port Industrial Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

Key Highlights
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimized data transmission
  • Automatic speed and half/full duplex detection/adjustment
  • Bandwidth: 5.6 Gbps
  • Packet buffer: : 1.2 Mbit
  • Packet forwarding size: 4.2 Mbps
  • Size of the MAC address table: 2K
  • Jumbo frame rate: 9000 byte
  • ESD protection: 6 kV (DC)
  • EFT protection: 6 kV (DC)
  • Metal housing, IP40
  • 4 kV lightning protection and surge protection

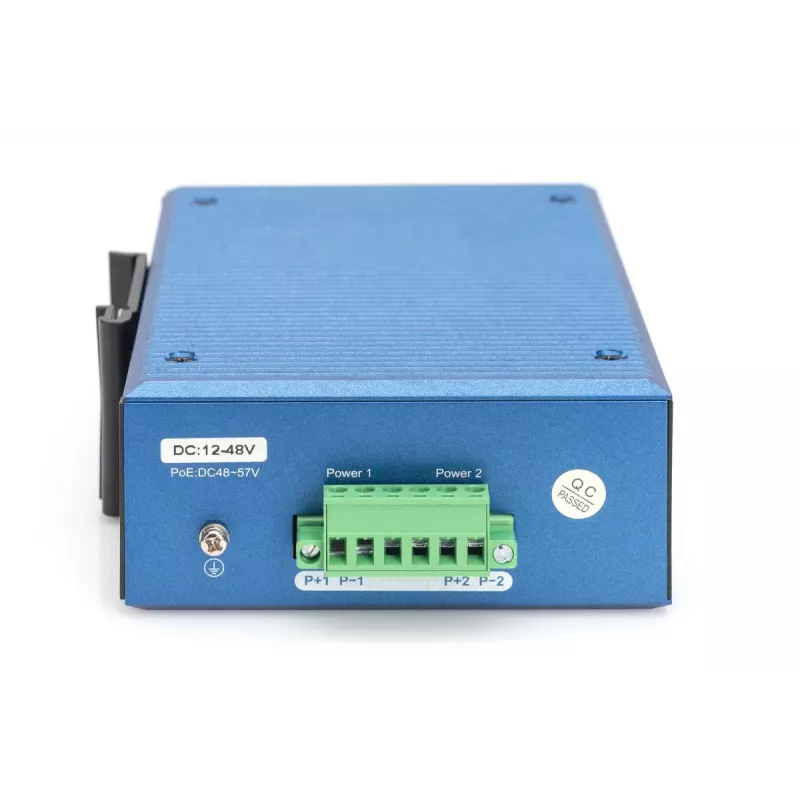

  • Redundant power supply with reverse polarity protection function
  • Power supply: 12 to 48 V
  • Power consumption: < 8 W
  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 143.7 x 104 x 47.7 mm
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000
Specifications
10G support
No
Bandwidth
5.6 Gbit/s
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Country of origin
China
Depth
104 mm
DIN rail mounting
Yes
Ethernet interface type
Fast Ethernet
Fast Ethernet (copper) ports quantity
8
Fiber optic connector
SFP
Flow control support
Yes
Forwarding rate
4.2 Mpps
Full duplex
Yes
Half duplex
Yes
Height
47.7 mm
Housing material
Metal
Input voltage
12 - 48 V
Installed SFP modules quantity
2
International Protection (IP) code
IP40
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
2000 entries
Manual
Yes
Mean time between failures (MTBF)
300000 h
Networking standards
IEEE 802.3x
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 80 °C
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
700 g
Package width
158 mm
Packet buffer memory
1.2 MB
Plug and Play
Yes
Power consumption (typical)
8 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black, Blue
Quick start guide
Yes
Rack mounting
No
Redundant power supply (RPS) support
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 80 °C
Store-and-forward
Yes
Suitable for outdoor use
No
Surge protection
Yes
Surge protection voltage
4 kV
Switch type
Unmanaged
Switching capacity
1 Gbit/s
UK Trade Tariff code
85176200
Vandal-proof
No
VLAN support
No
Weight
600 g
Width
143.7 mm

Leaflet

Open Leaflet
