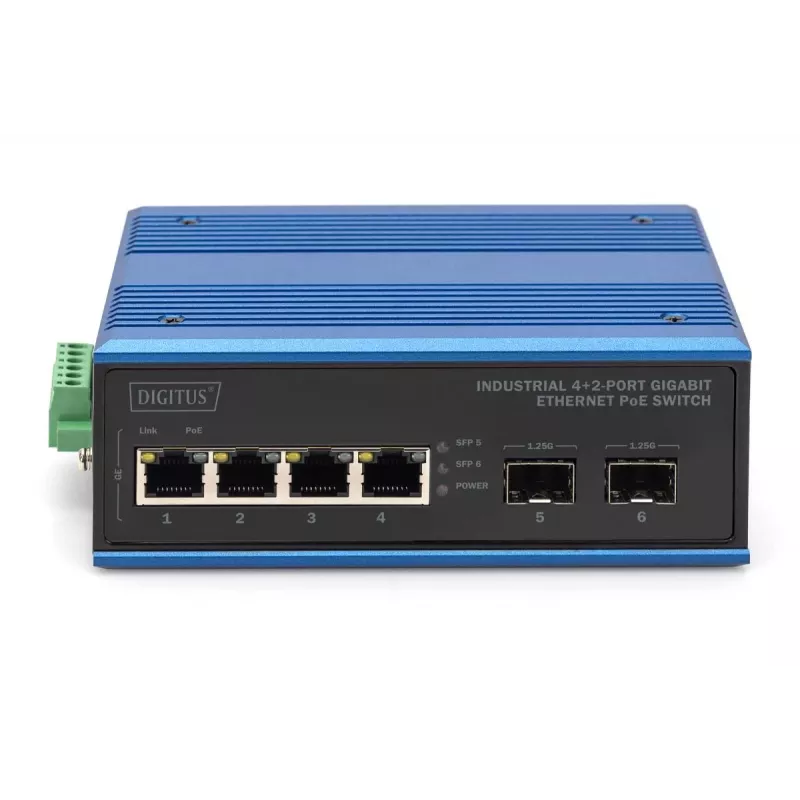

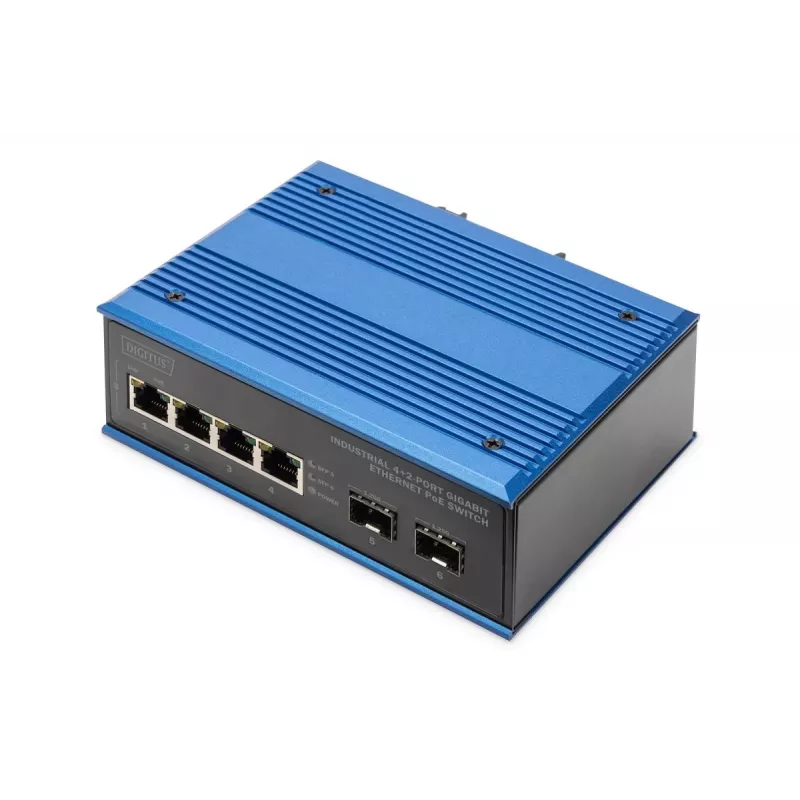

DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port

DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
DIGITUS Industrial 4+2 -Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45 2 GE SFP Port
R3,120
4 x PoE 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.- Number of network connections: 4 GE ports, 2 SFP GE ports- Transmission speed of the RJ45 network ports: 4 x 10/1... Read More
Stock 2 Code 119200 Brand DIGITUS Model DN-651149 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

4 x PoE 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- Number of network connections: 4 GE ports, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 4 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)

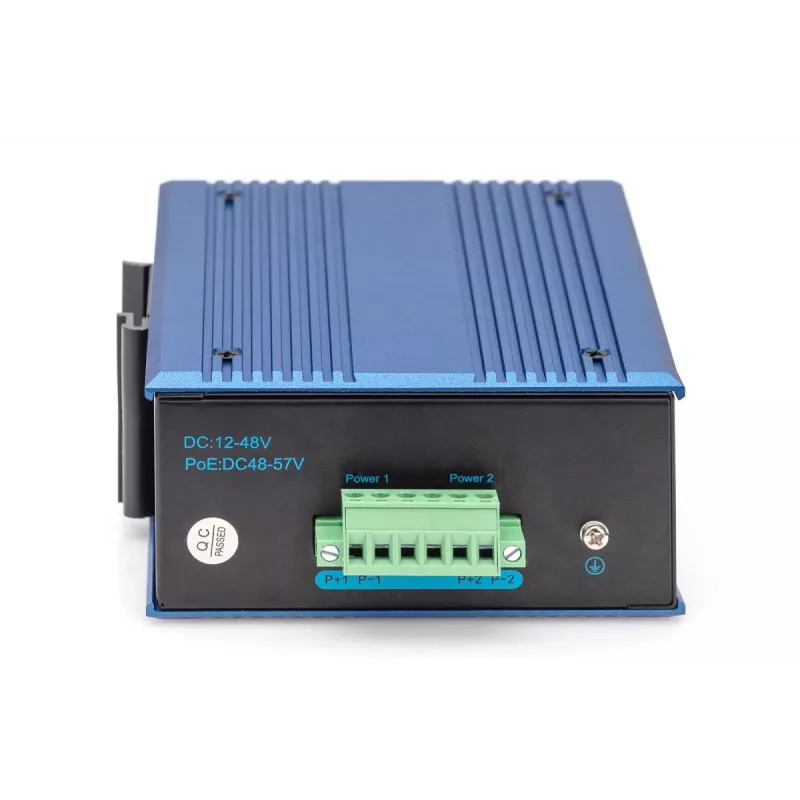

- Redundant power supply 48-57 V (DC)
- Metal housing to IP40 standard

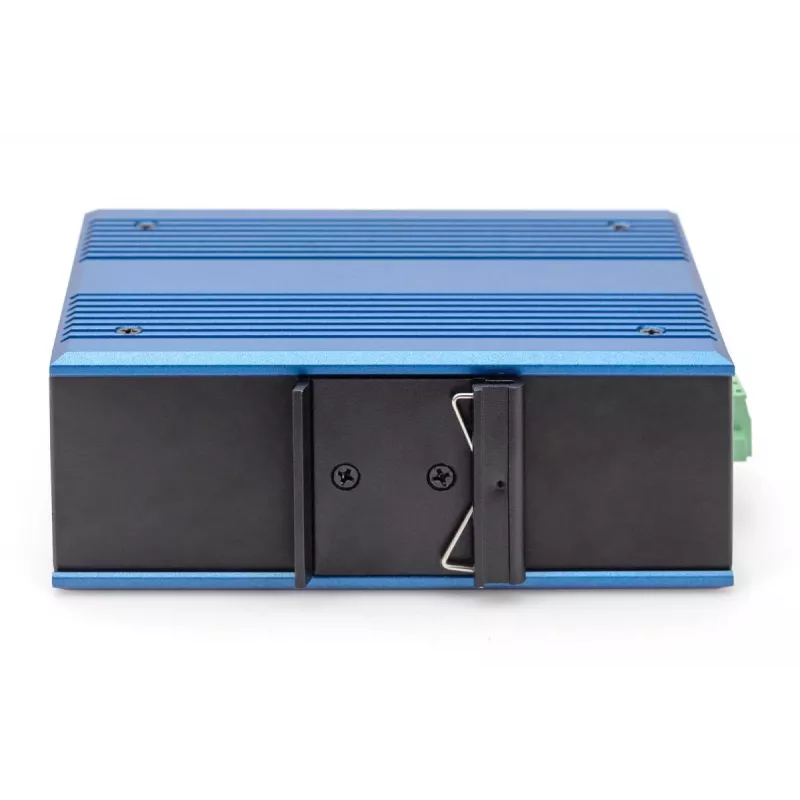

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651149 is a robust 4+2 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 4x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 2x 1000 Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

Key Highlights
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimized data transmission
  • Automatic speed and half/full duplex detection/adjustment
  • 4 port PoE with up to 30 W
  • Bandwidth: 14 Gbps
  • Packet buffer: 1.2 Mbit
  • Packet forwarding size: 10.5 Mbps
  • Size of the MAC address table: 2K
  • Jumbo frame rate: 9000 byte
  • ESD protection: 6 kV (DC)
  • EFT protection: 6 kV (DC)
  • Metal housing, IP40
  • 4 kV lightning protection and surge protection
  • Suitable for mounting on DIN rail (top-hat rail)
  • Redundant power supply with reverse polarity protection function
  • Power supply: 48 to 57 V
  • Power consumption: <5 W
  • V-LAN: no
  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 142.5 x 107.1 x 53.5 mm
  • Weight: 0.54 kg
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000
  • Maximum power / connection (W): 100 W
Specifications
10G support
No
Bandwidth
14 Gbit/s
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Country of origin
China
DC input voltage
48 - 57 V
Depth
107.1 mm
DIN rail mounting
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber optic connector
SFP
Flow control support
Yes
Forwarding rate
10.5 Mpps
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
4
Half duplex
Yes
Height
53.5 mm
Housing material
Metal
Installed SFP modules quantity
2
International Protection (IP) code
IP40
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
2000 entries
Manual
Yes
Mean time between failures (MTBF)
300000 h
Networking standards
IEEE 802.3af
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 80 °C
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package width
158 mm
Packet buffer memory
1.2 MB
Plug and Play
Yes
Power consumption (typical)
5 W
Power over Ethernet (PoE)
Yes
Power source
DC
Power supply included
Yes
Product colour
Black, Blue
Quick start guide
Yes
Rack mounting
No
Redundant power supply (RPS) support
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 80 °C
Store-and-forward
Yes
Suitable for outdoor use
No
Surge protection
Yes
Surge protection voltage
4 kV
Switch type
Unmanaged
Switching capacity
1 Gbit/s
UK Trade Tariff code
85176200
Vandal-proof
No
VLAN support
No
Weight
540 g
Width
142.5 mm

Leaflet

Open Leaflet
