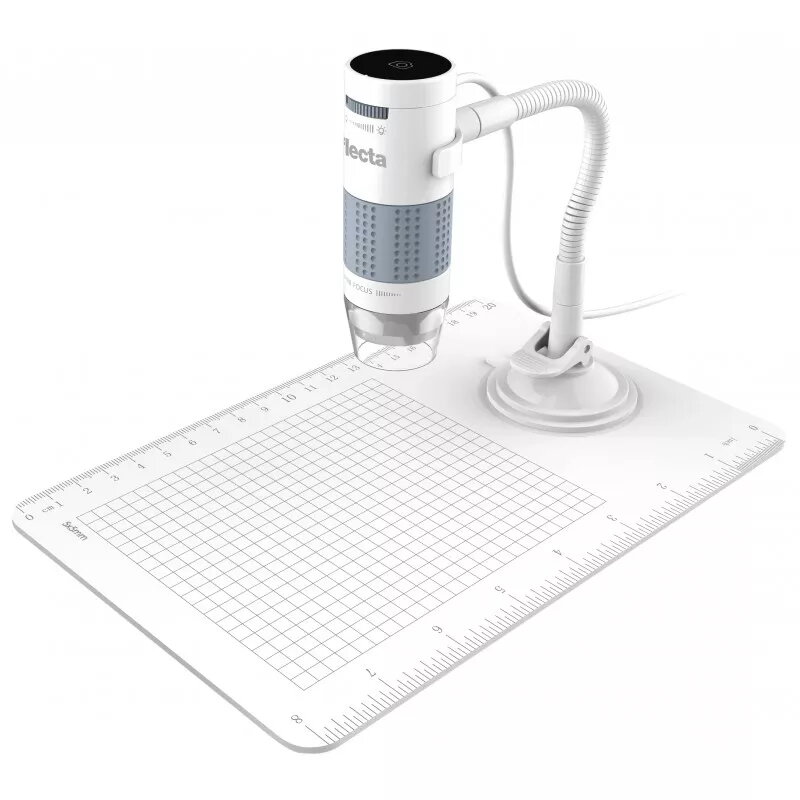

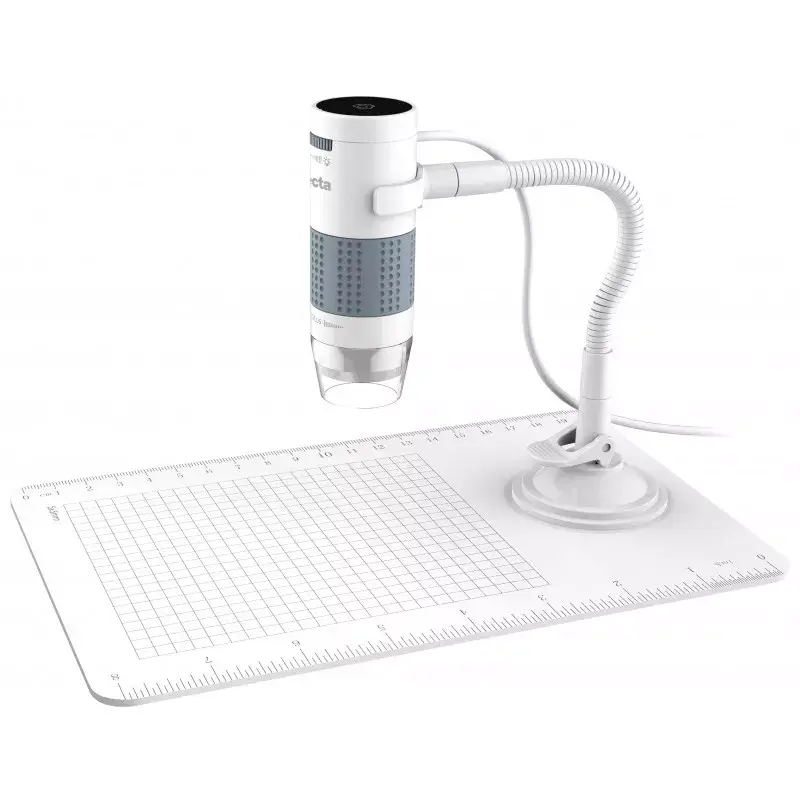

Digital microscope Reflecta 66144

The REFLECTA Digital microscope 66144 (DigiMicroscope Flex) is a compact digital microscope offering adjustable magnification from 60x to 250x. It includes LED illumination and a built-in camera with a resolution of 1600 x 1200 pixels, and records images in JPG and video in AVI format. The device can be used handheld or mounted on the supplied flexible tripod with suction cup and supports connection to PC, tablet or smartphone. Compatible operating systems include Windows 10 and Mac OS X (10.5–10.8). Its small dimensions and 214 g weight make it portable for use in research, education, hobby and inspection tasks.

Advantages

The REFLECTA 66144 offers versatile mounting options — handheld use or fixed positioning on a flexible tripod with suction cup — and an adjustable focus range that extends to infinity. LED illumination ensures constant lighting of the subject while the built-in camera delivers 1600 x 1200 px images and records AVI video. Compact size and low weight simplify transport and setup, and broad device compatibility allows viewing on PC, tablet or smartphone.

Suitable for

• Microscopic inspection of small objects and surfaces
• School and study use (biology lessons, lab exercises)
• Research and laboratory documentation
• Hobby and leisure (stamp/coin inspection, electronics repair)
• Workplace inspection tasks and quality control

Key specifications

• Brand: REFLECTA
• Model / MPN: 66144
• Magnification: 60x–250x (adjustable)
• Camera resolution: 1600 x 1200 pixels
• Image / video formats: JPG (images), AVI (video)
• Illumination: built-in LEDs
• Compatibility: Windows 10, Mac OS X 10.5–10.8
• Weight: 0.214 kg
• Colour: White
• Mounting: handheld or flexible tripod with suction cup (included)

How to use

Connect the microscope to a compatible PC, tablet or smartphone using the supplied cable and run the appropriate viewing software. Position the microscope either handheld or attach it to the flexible tripod with suction cup and adjust the height and angle to align the objective with the sample. Select the desired magnification between 60x and 250x and use the focus control to obtain a sharp image; the focus can be adjusted to infinity for distant objects. Use the software controls to capture single photos, set timed interval captures, or record AVI video.

Recommendations

Use on stable, clean surfaces and ensure even LED illumination for best image quality. For very small or reflective samples, adjust distance and angle gradually to minimise glare and optimise focus. Verify OS compatibility and install drivers or software supplied with the product before first use.
