Digital microscope Levenhuk DTX RC1 220x

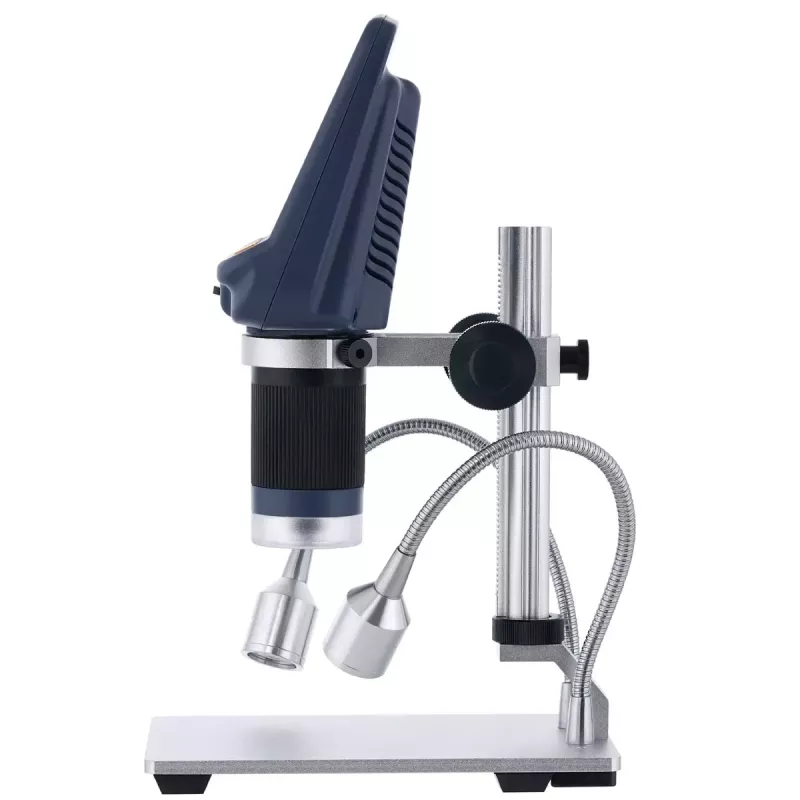

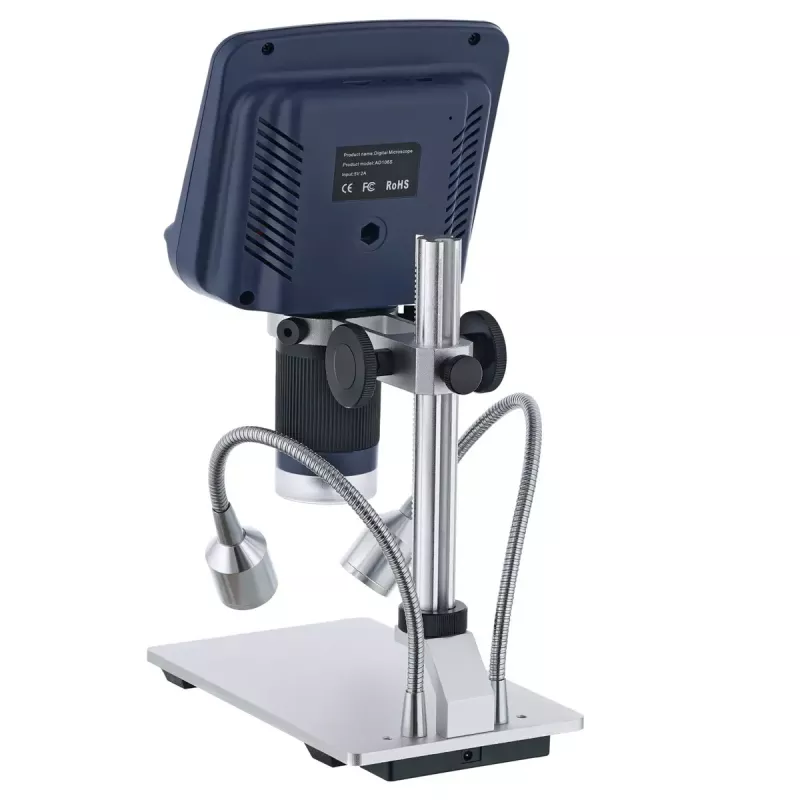

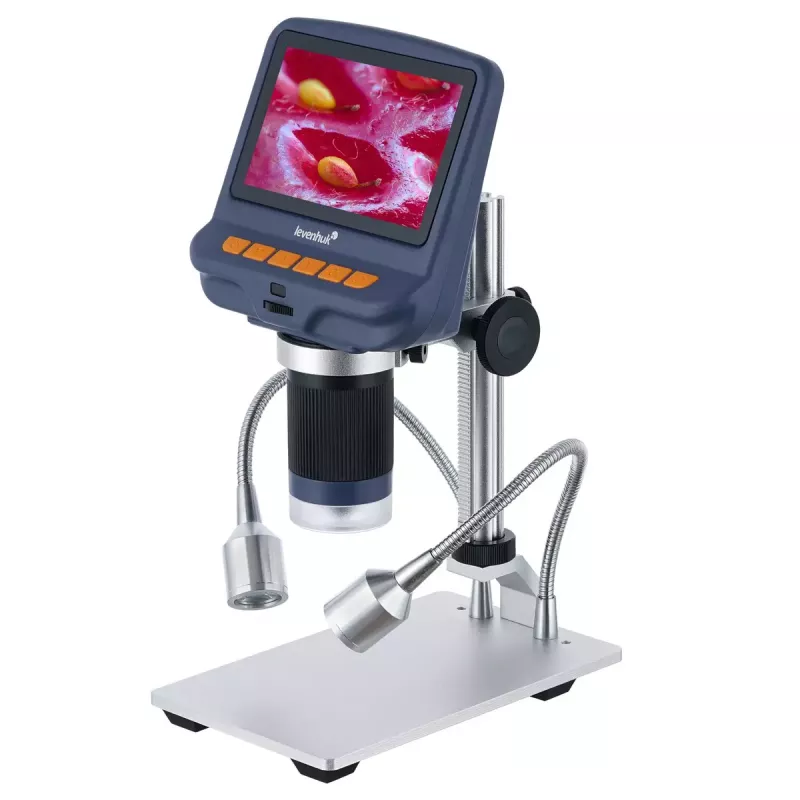

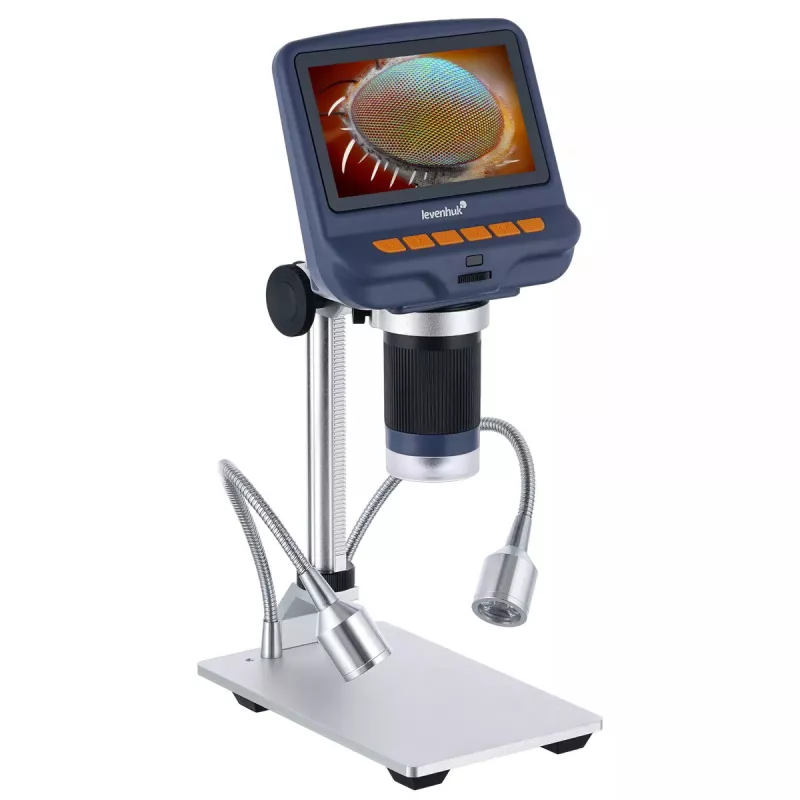

Levenhuk DTX RC1 Remote Controlled Microscope is a digital microscope designed for inspecting small, detailed objects such as jewelry, watch mechanisms, and electronic circuit boards. Instead of eyepieces it uses a 4.3-inch color LCD screen that shows the live image from the objective; the device supports both optical and digital magnification with a total magnification range from 3× to 220×. The microscope can capture high-resolution photos and record Full HD video (requires a memory card, not included). Images can also be transferred to a computer via the supplied USB cable. The housing is metal and the unit is powered from AC (110–220 V); a CR2025 battery is included for the wireless remote.

Advantages

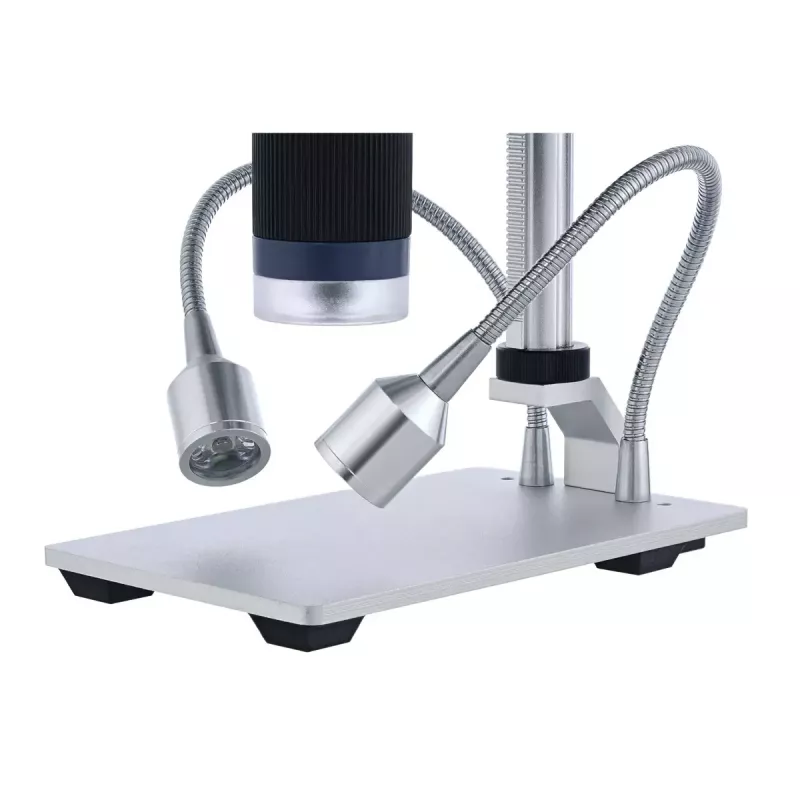

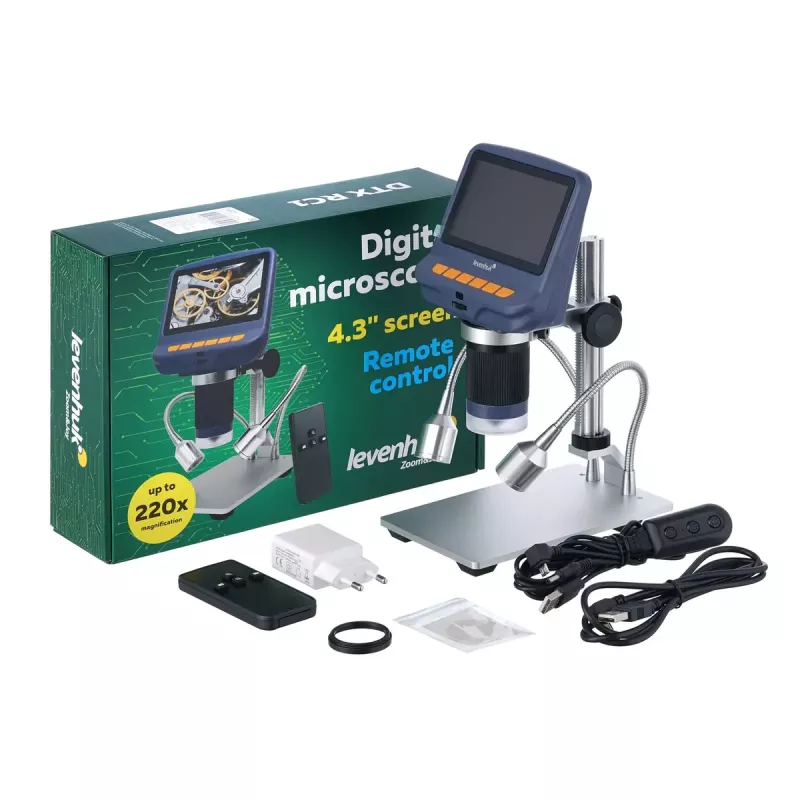

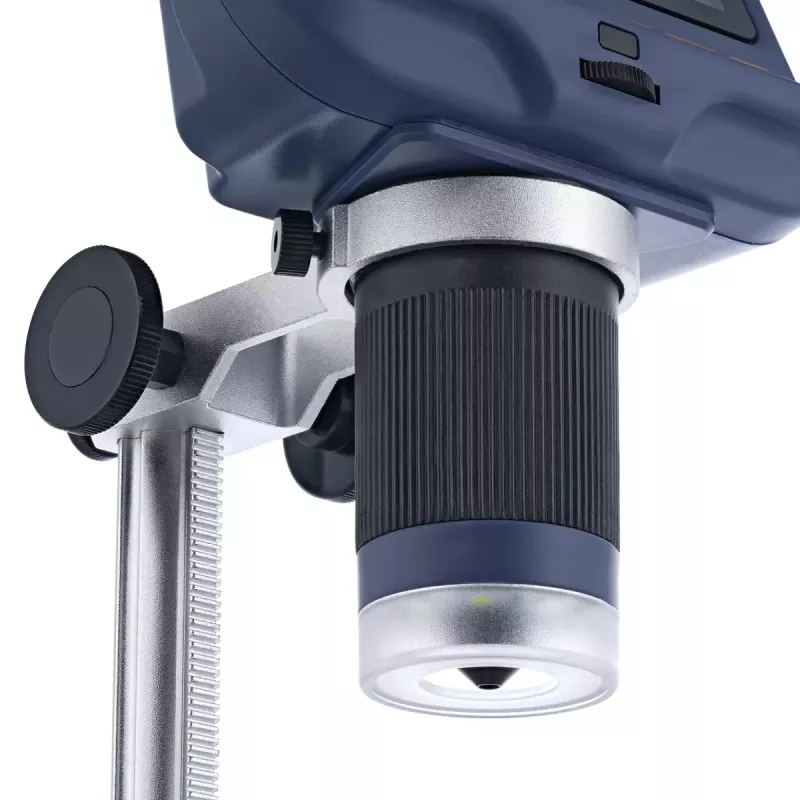

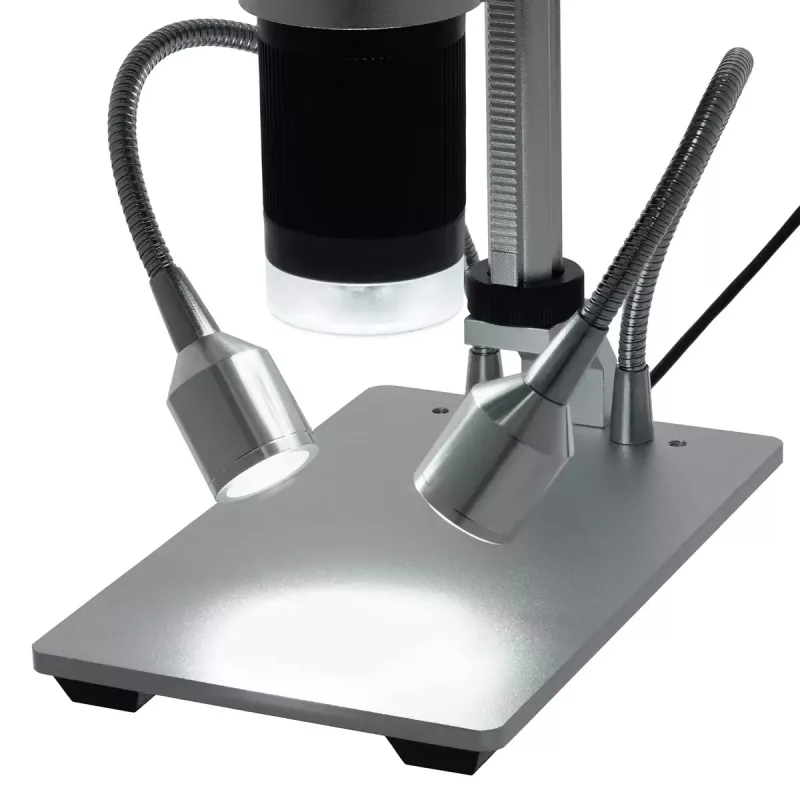

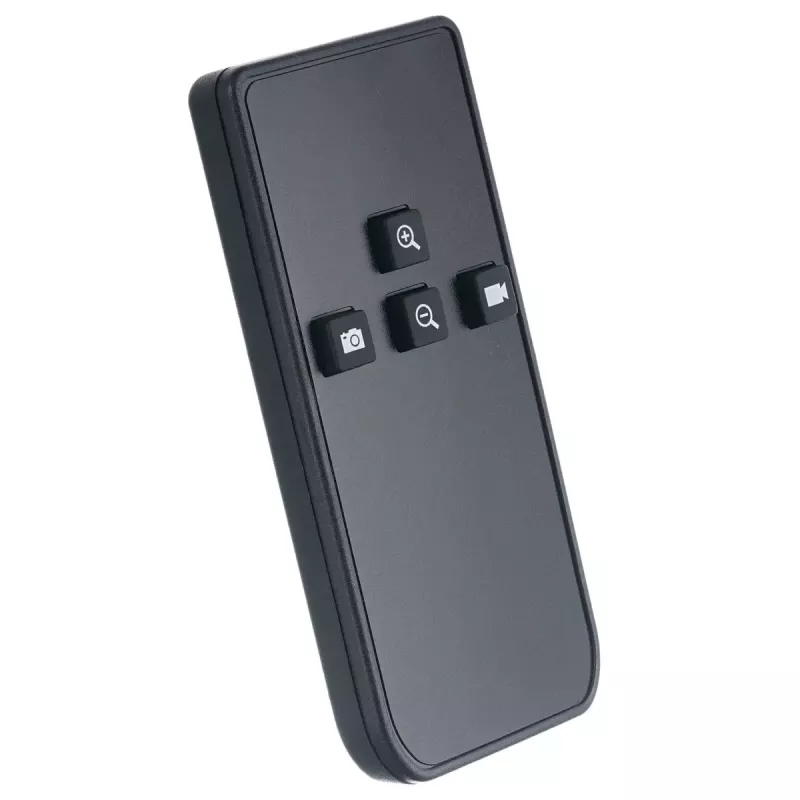

The microscope combines a built-in 4.3-inch color LCD with a 12 MP-class CMOS sensor for detailed imaging and supports image transfer to a PC via USB. Illumination is versatile: LEDs inside the objective provide reflected light while two adjustable LED spotlights on flexible holders allow precise lighting alignment; brightness is adjustable. Control options include front-panel buttons, a wired switch on the power cable for power and lighting brightness, and a wireless remote for changing magnification and triggering photo/video capture, enabling vibration-free recording. The durable metal housing and included accessories (UV filter, network adapter, USB cable) make the kit ready for inspection tasks.

Suitable for

• Jewellery inspection and repair
• Watch and clock mechanism examination
• Inspection and diagnostics of electronic circuit boards
• Small-part assembly, quality control and educational demonstrations

Key specifications

• Magnification: 3×–220× (optical + digital)

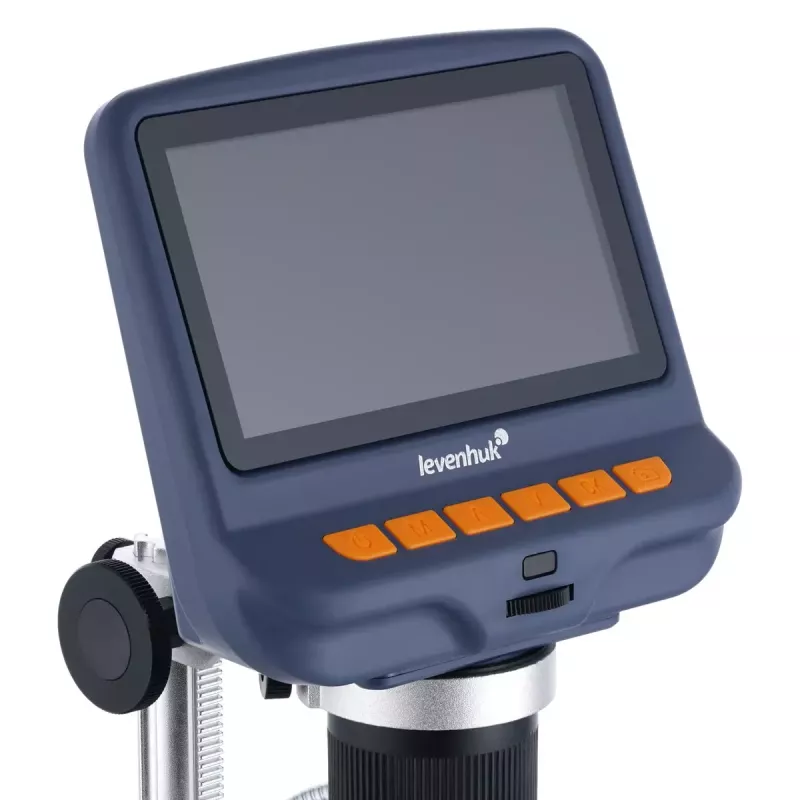

• Display: 4.3-inch color LCD
• Camera sensor: CMOS, approx. 12 MP class
• Video: Full HD recording (memory card required, not included)
• Illumination: LEDs in objective (reflected) + two adjustable LED spotlights
• Power: AC 110–220 V; CR2025 battery included (for wireless remote)
• Housing: Metal
• Stage size: 10 × 16 cm
• Connections: USB (included)

How to use

Place the specimen on the stage and turn on the microscope using the power switch on the power cable. Adjust the lighting brightness with the knob on the power cable and position the flexible LED spotlights to achieve the desired illumination. Use the front-panel controls or the wireless remote to change magnification and view the live image on the 4.3-inch LCD. For image or video capture, press the capture/record button on the remote or the front panel; to transfer images to a computer, connect the microscope to a PC using the supplied USB cable. Insert a compatible memory card to enable Full HD video recording and high-resolution photo storage.

Recommendations

To minimize blur in photos and videos, operate the camera using the wireless remote and avoid touching the microscope during capture; position the flexible spotlights to reduce reflections and use the UV filter when required for specific optical effects or to protect the objective.
