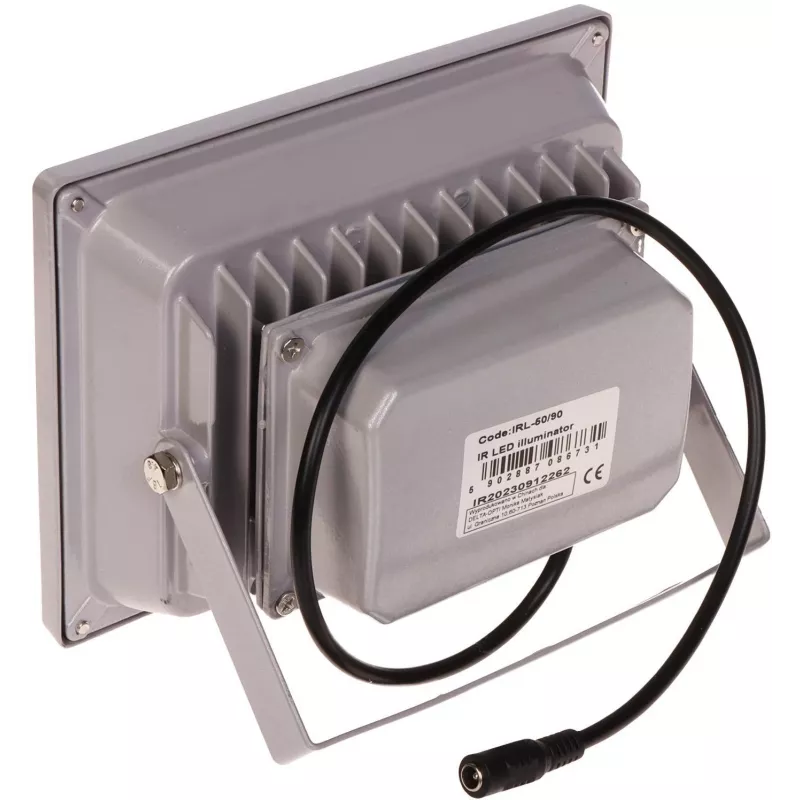

DELTA Outdoor Infrared Reflector IRL-50/90, 850 nm, 50 m Range, 90° Beam Angle, IP66, Dark Grey

The DELTA IRL-50/90 is a high-performance outdoor infrared reflector designed to enhance night vision capabilities for CCTV systems. With a powerful 850 nm wavelength and a 50-meter illumination range, it ensures clear imaging in complete darkness. The 90° beam angle provides wide coverage, making it ideal for monitoring large areas such as parking lots, building perimeters, and industrial sites.

Advantages

Built with a durable aluminum housing and IP66 ingress protection, the IRL-50/90 withstands harsh weather conditions, ensuring reliable operation in temperatures from -30°C to +55°C. The built-in photocell enables automatic activation at dusk, saving energy and extending LED life. Its six high-power IR LEDs deliver consistent, long-range illumination with low power consumption of only 14.4 W.

Suitable for

• Outdoor CCTV systems requiring night vision
• Perimeter security and surveillance
• Industrial and commercial premises
• Parking lots and building entrances

Key specifications

• Illumination Type: Infrared (IR)
• IR Wavelength: 850 nm
• Illumination Range: 50 m
• Beam Angle: 90°
• Number of IR LEDs: 6

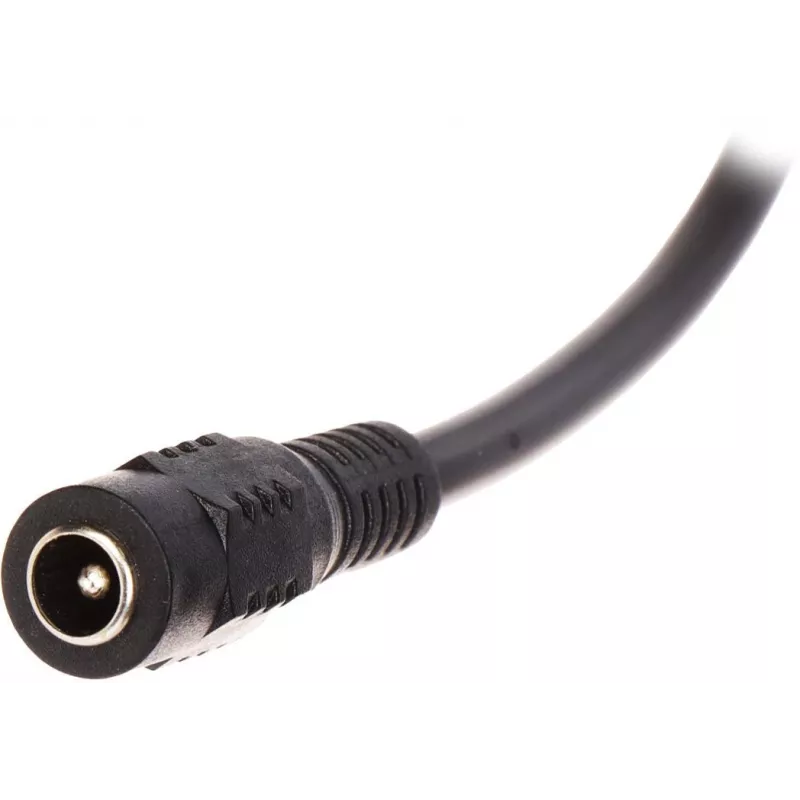

• Power Supply: 12V DC
• Power Consumption: 14.4 W
• IP Rating: IP66
• Housing Material: Aluminum
• Automatic Activation: Built-in Photocell
• Operating Temperature: -30°C to +55°C
• Mounting: Wall/Surface Mount (bracket included)
• Colour: Dark Grey

Recommendations

For optimal performance, pair the IRL-50/90 with a compatible 12V DC power supply and ensure proper alignment with your camera's field of view. Regular cleaning of the lens and housing will maintain maximum illumination output.
