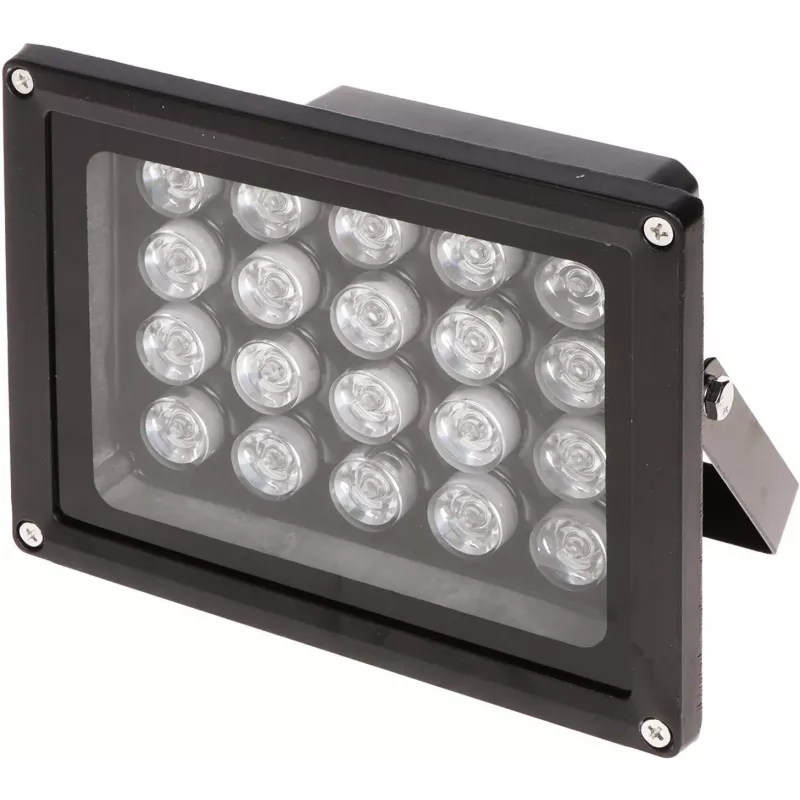

Delta IRL-30/120 Outdoor Infrared Illuminator, 850nm, 30m Range, 120° Beam, IP66, Black

Illuminate your outdoor surveillance with the Delta IRL-30/120, an infrared illuminator engineered to deliver clear monochrome footage in total darkness. With 850nm wavelength and a 30-metre range, it provides consistent, even lighting for a wide 120° coverage area.

Advantages

This robust illuminator features six high-efficiency LEDs that produce uniform infrared light without hot spots, ensuring your CCTV camera captures sharp, detailed images. The built-in twilight sensor automatically activates the LEDs at dusk and switches them off at dawn, saving energy and eliminating the need for external photocells. Constructed with an aluminum housing and rated IP66, it withstands rain, snow, and dust, making it perfect for year-round outdoor installations. The adjustable mounting bracket allows precise positioning on walls or ceilings, simplifying installation and reducing maintenance.

Suitable for

• Perimeter security and property surveillance
• Car parks, driveways, and garden monitoring
• Industrial and warehouse CCTV systems
• Remote or rural installations where low-light visibility is critical

Key specifications

• Infrared wavelength: 850 nm
• Maximum IR range: 30 m
• Beam angle: 120°
• Number of IR LEDs: 6

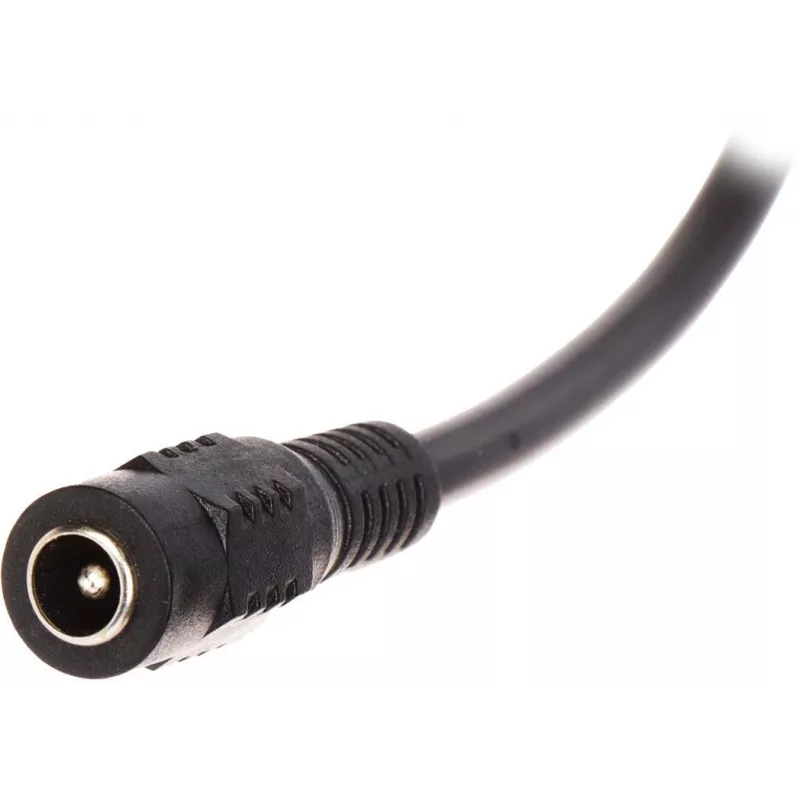

• Power supply: 12V DC
• Power consumption: 12W (1000mA)
• Automatic activation: twilight sensor
• Ingress protection: IP66
• Housing material: aluminum
• Operating temperature: -20°C to +50°C

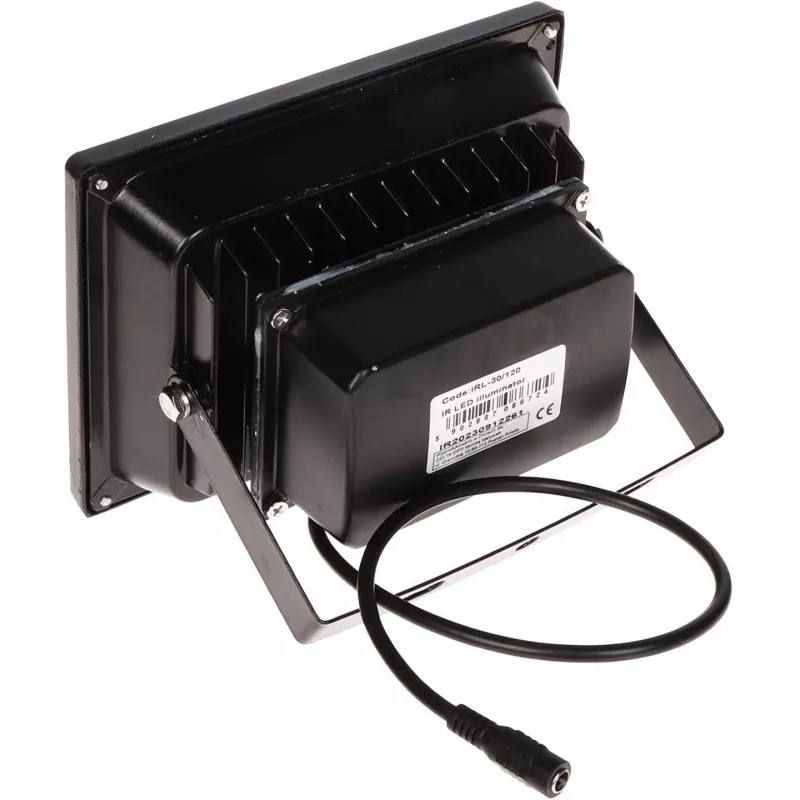

• Mounting: wall/ceiling bracket included
• Color: black

Recommendations

For best performance, use a regulated 12V DC power supply. Ensure the twilight sensor is positioned to receive appropriate ambient light for optimal automatic operation.
