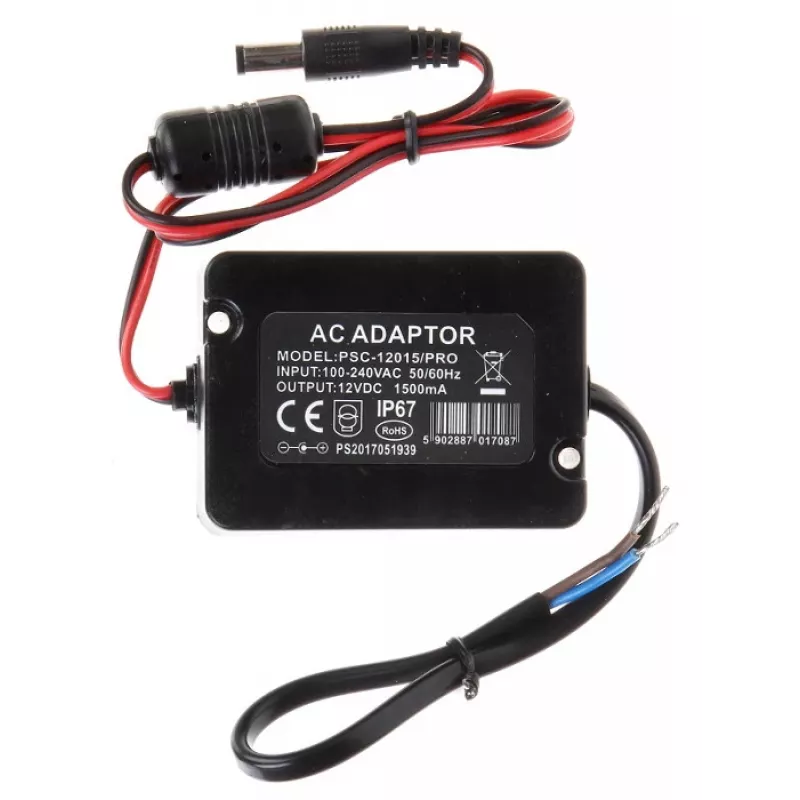

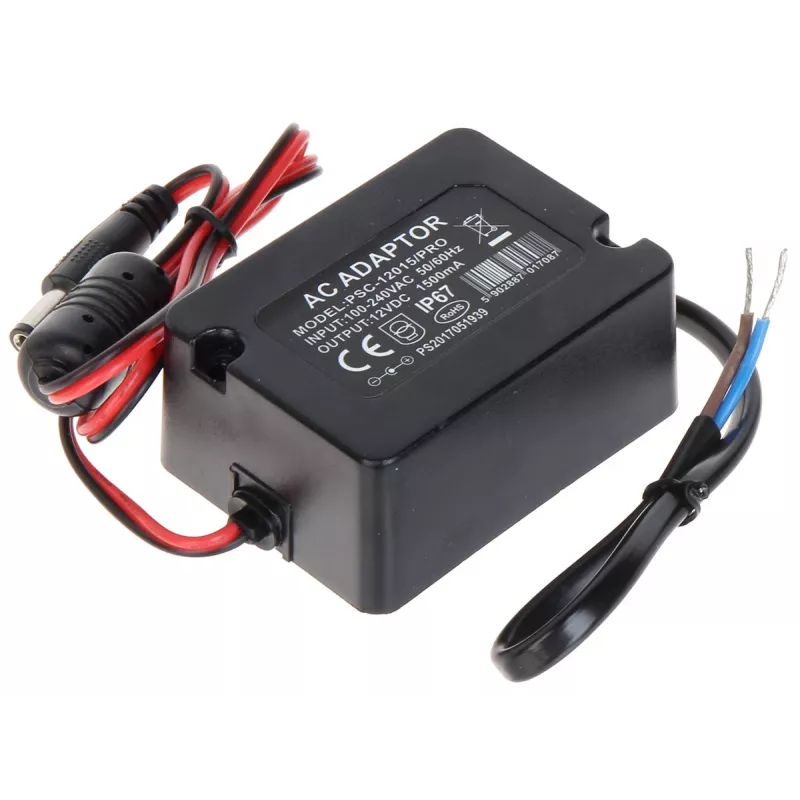

DELTA Hermetic Power Supply PSC-12015/PRO 12V 1.5A

The DELTA PSC-12015/PRO is a high-quality hermetic power supply designed for reliable performance in demanding environments. With a constant voltage output of 12V DC and 1.5A, it delivers 18W of power, making it ideal for LED lighting, security systems, and industrial automation. Its IP67 rating ensures protection against dust and water immersion, while the aluminum housing provides durability and efficient heat dissipation.

Advantages

This power supply offers high efficiency (>85%), a wide input voltage range (100-240V AC), and comprehensive protection features including short circuit, overload, over voltage, and over temperature. The free air convection cooling ensures silent operation and long lifespan.

Suitable for

• LED strip lighting and modules
• CCTV cameras and security systems
• Industrial control panels
• Outdoor signage and displays
• Automation equipment

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 12V DC, 1.5A, 18W
• Efficiency: >85%
• IP Rating: IP67
• Protection: Short Circuit, Overload, Over Voltage, Over Temperature
• Operating Temperature: -20°C to +50°C
• Housing Material: Aluminum
• Connections: Wire leads (approx. 20cm each)
• Ripple & Noise: <150mVp-p
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated output current. Suitable for indoor and outdoor use where IP67 protection is required.
