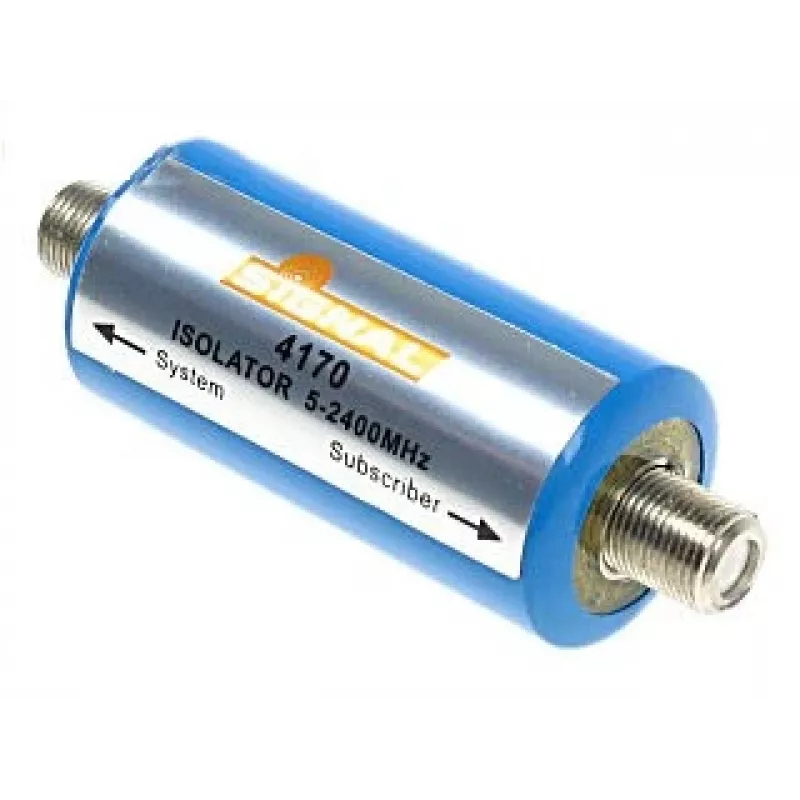

DELTA Galvanic Isolator SG-4170 5-2400MHz F-Type Female to Female

DELTA Galvanic Isolator SG-4170 5-2400MHz F-Type Female to Female
DELTA Galvanic Isolator SG-4170 5-2400MHz F-Type Female to Female
R131
The DELTA SG-4170 Galvanic Isolator is a high-performance inline RF isolator designed to eliminate ground loops and protect equipment in terrestrial and satellite TV installations. With a frequency range of 5-2400 MHz and 75 Ohm impedance, it ensures reliable signal transmission while providing 2.5 ... Read More
Stock Out Of StockNo Stock Code 3103263 Brand DELTA Model SG-4170 Warranty 2 Years

Shipping & Returns

The DELTA SG-4170 Galvanic Isolator is a high-performance inline RF isolator designed to eliminate ground loops and protect equipment in terrestrial and satellite TV installations. With a frequency range of 5-2400 MHz and 75 Ohm impedance, it ensures reliable signal transmission while providing 2.5 kV voltage isolation.

Advantages

Eliminates hum bars and interference caused by ground loops; protects sensitive equipment from voltage surges; easy inline installation with F-Type female connectors; supports both DVB-T/T2 and DVB-S/S2 signals.

Suitable for

  • Terrestrial TV (DVB-T/T2) systems
  • Satellite TV (DVB-S/S2) installations
  • Cable TV (DVB-C) networks
  • Any RF system requiring ground loop isolation

Key specifications

  • Frequency Range: 5 - 2400 MHz
  • Impedance: 75 Ohm
  • Connector Type: F-Type Female to F-Type Female
  • Insertion Loss (Terrestrial TV): < 1.5 dB (5-862 MHz)
  • Insertion Loss (Satellite TV): < 2.5 dB (950-2400 MHz)
  • Isolation: > 20 dB
  • Voltage Isolation: 2.5 kV
  • DC Pass: No (DC Blocked)
  • Housing Material: Nickel-plated Metal
  • Installation Type: Inline

Recommendations

For optimal performance, install the isolator between the antenna/satellite dish and the receiver. Ensure all connections are tight and weatherproofed if used outdoors.

Specifications
Brand
DELTA
Category
Serial Isolator
EAN
5907634565132
Host interface
F-Type Female
Housing material
Nickel-plated Metal
Hub interfaces
F-Type Female
Model
SG-4170
MPN
SG-4170
Ports quantity
1
Weight
0.03 kg
