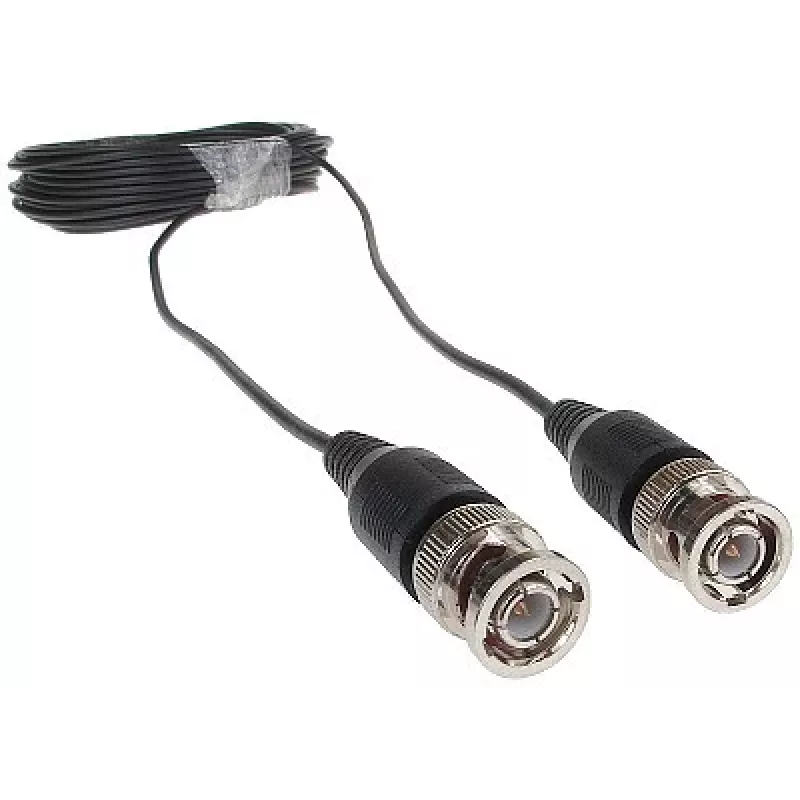

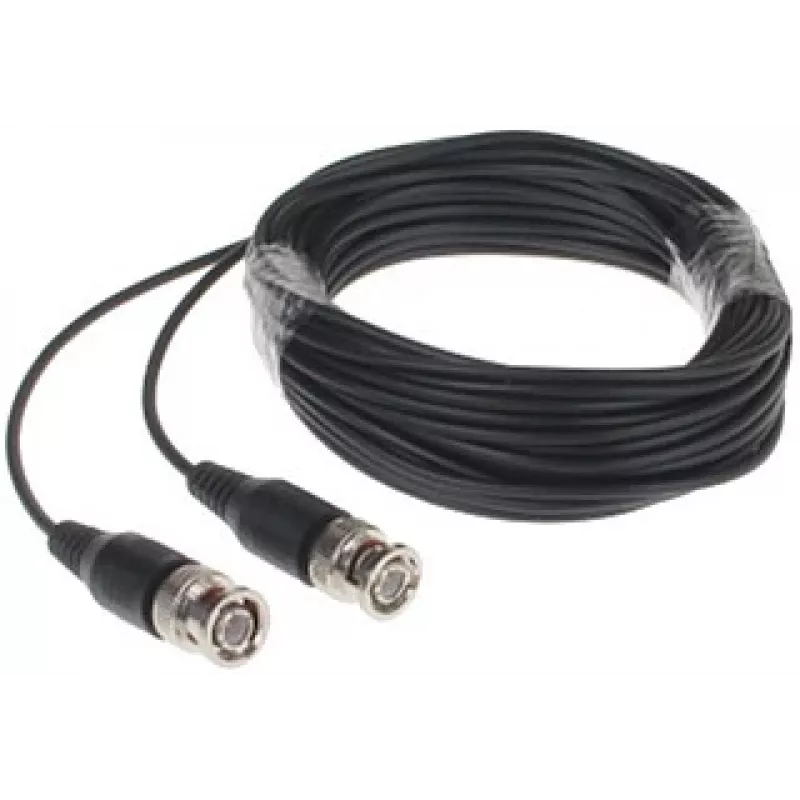

DELTA CROSS-BNC/10M BNC Male to BNC Male Coaxial Cable 10m RG59 75 Ohm Black

The DELTA CROSS-BNC/10M is a high-quality BNC coaxial cable designed for professional video surveillance, broadcast, and test & measurement applications. With a length of 10 meters (32.8 ft) and 75 Ohm impedance, this cable ensures reliable signal transmission with minimal loss. It features double shielding (braided copper + aluminum foil) and oxygen-free copper conductors for superior performance.

Advantages

This cable offers excellent signal integrity and durability. The molded strain relief protects the connectors from damage, while the PVC jacket provides flexibility and long-lasting use. RoHS compliant and suitable for a wide temperature range.

Suitable for

• CCTV and video surveillance systems
• Broadcast and professional video equipment
• Test and measurement setups
• Any application requiring reliable BNC connections

Key specifications

• Cable Type: Coaxial RG59
• Connectors: BNC Male to BNC Male
• Length: 10 meters (32.8 ft)
• Impedance: 75 Ohm
• Conductor: Oxygen-Free Copper (OFC)
• Shielding: Double Shielded (Braided Copper + Aluminum Foil)
• Jacket: PVC, Black
• Connector Plating: Nickel-plated
• Outer Diameter: 6.15 mm
• Operating Temperature: -20°C to 70°C
• Voltage Rating: 30V AC/DC
• Max Frequency: 1 GHz
• RoHS Compliant

Recommendations

For optimal performance, ensure connectors are properly tightened and avoid sharp bends. Suitable for indoor and outdoor use when protected from direct exposure.
