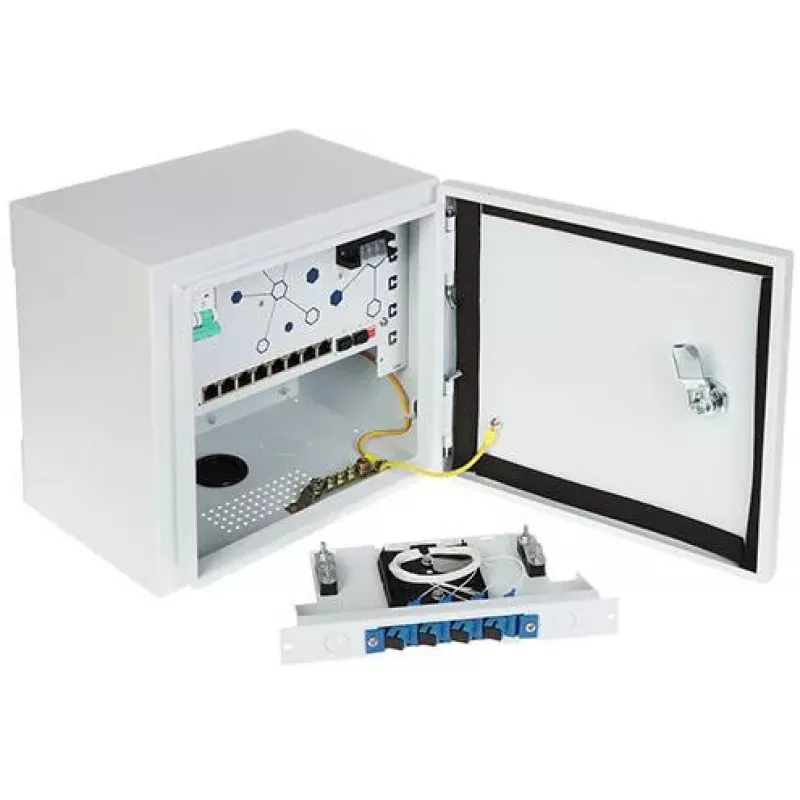

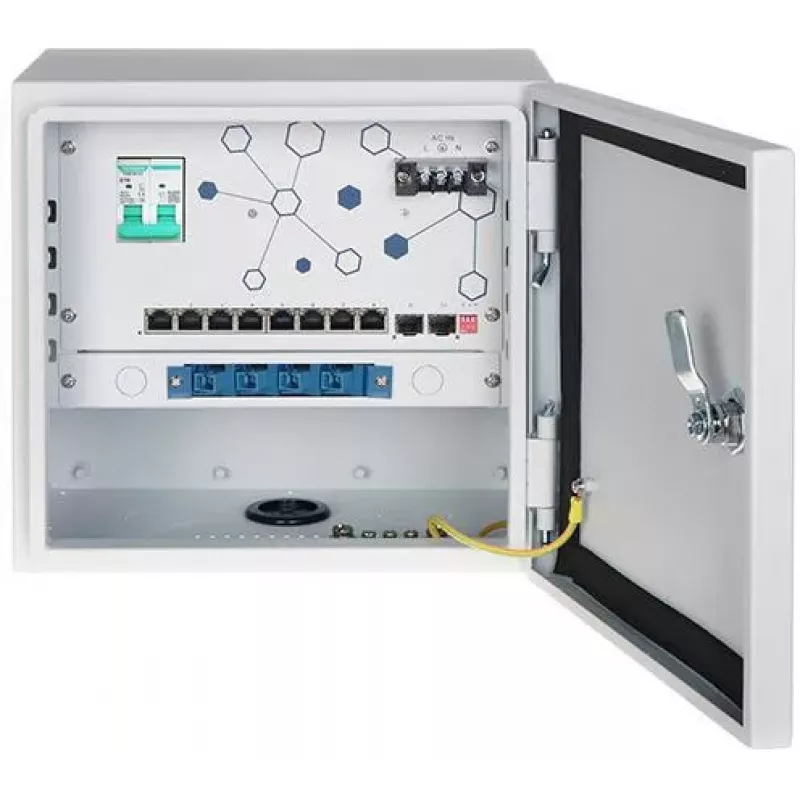

DELTA Camera Distribution Point EXPERT-POE/OTD-8G2GSFP 8 PoE + 2 SFP

The DELTA EXPERT-POE/OTD-8G2GSFP is a robust industrial camera distribution point designed for reliable power and data transmission in surveillance networks. With 8 PoE+ ports and 2 SFP uplink slots, it delivers high-performance connectivity for IP cameras and other PoE devices in harsh environments.

Advantages

This unmanaged switch provides plug-and-play installation with no configuration required. Its wide operating temperature range (-40°C to +75°C) and IP30 metal housing ensure durability in extreme conditions. The 120W PoE budget supports high-power devices like PTZ cameras, while 6kV surge protection safeguards against electrical spikes.

Suitable for

• IP surveillance systems in industrial facilities, warehouses, and outdoor installations
• Edge-of-network deployments requiring reliable PoE+ power
• DIN rail or wall-mounted setups in space-constrained environments

Key specifications

• 8x 10/100/1000 Mbps RJ45 PoE+ ports (IEEE 802.3af/at)
• 2x 1000 Mbps SFP uplink ports
• Total PoE budget: 120W (30W per port max)
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Power input: DC 48-57V
• Operating temperature: -40°C to +75°C
• Enclosure: Metal, IP30
• Mounting: DIN rail, wall mount
• Protection: 6kV surge, ESD
• LED indicators: Power, Link/Act, PoE status

Recommendations

For optimal performance, use with DELTA PoE injectors or compatible power supplies. Ensure proper ventilation when mounting in enclosed spaces. This device is ideal for expanding PoE networks in demanding industrial applications.
