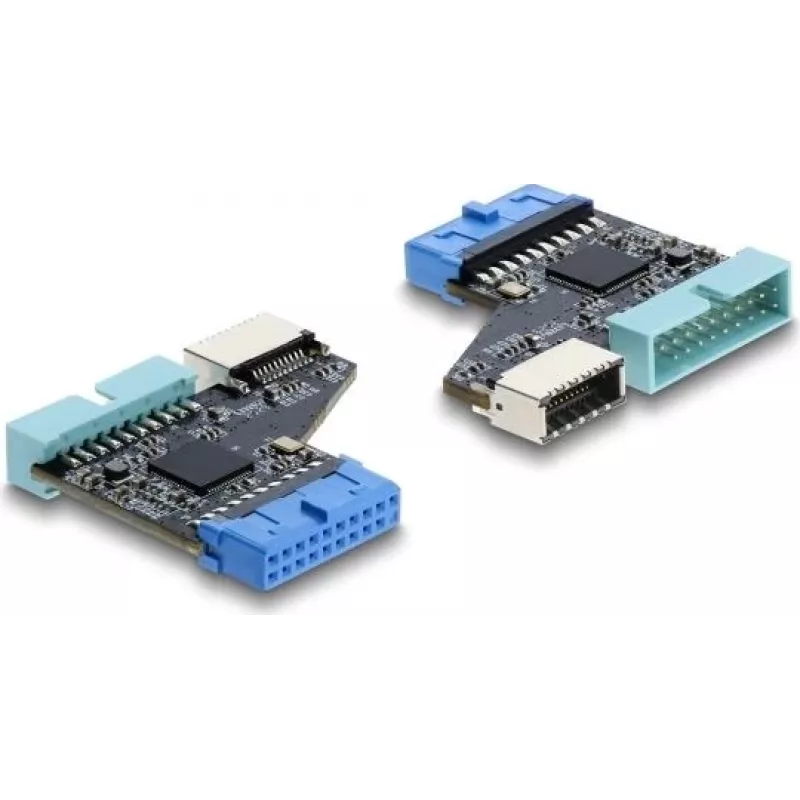

DELOCK USB 5Gbps Hub internal 20‑pin header to 1x USB 5Gbps

The DELOCK USB 5Gbps Hub internal 20‑pin header to 1x USB 5Gbps is an internal expansion module that converts a motherboard 20‑pin USB header into a single internal USB port with up to 5 Gbps transfer speed. Intended for installation inside a PC chassis, this compact device provides a direct internal connection for USB devices, front-panel modules, or custom mounting solutions. It supports high-speed data transfer suitable for modern USB 3.0/3.1 peripherals and is intended to integrate with existing system wiring for tidy cable routing.

Advantages

This internal hub delivers full-speed USB 5Gbps connectivity from a standard 20‑pin motherboard header to a single internal USB port, enabling easy expansion without external adapters. Its compact design fits inside typical PC cases and allows secure, direct connection to internal devices or front I/O assemblies. The product maintains a straightforward electrical interface to the motherboard header and supports the transfer rates required by high-bandwidth USB devices.

Suitable for

• Connecting internal USB peripherals such as card readers, internal hubs, or embedded controllers
• Wiring a front-panel USB port or custom modding projects inside a PC case
• Providing a direct internal USB connection for SATA/USB bridge devices or diagnostic tools

Key specifications

• Interface: connects to motherboard 20‑pin internal USB header
• Output: one internal USB port with up to 5 Gbps transfer rate
• Compatibility: designed for standard internal USB 3.x header pinouts
• Form factor: compact internal module for installation inside PC chassis
• Data transfer: supports high-speed USB data rates up to 5 Gbps

How to use

Install the module inside the PC case and connect its cable to the motherboard's 20‑pin USB header, ensuring correct alignment of the connector with the header pins. Route the single internal USB port to the desired mounting location such as a front-panel bay, internal bracket, or direct device mounting point. After connection, power on the system and verify that the operating system detects the connected USB interface and attached devices. Use standard device drivers provided by the operating system or device manufacturer as needed.

Recommendations

Ensure the motherboard header pinout matches the module wiring before installation; avoid forcing the connector and secure cables to prevent strain. For reliable high-speed transfers, keep internal USB cable lengths short and avoid routing near high-interference components. Verify device compatibility with 5 Gbps operation and follow anti-static precautions when handling internal components.
