DeLOCK Thunderbolt 3 Mini Docking Station 8K DisplayPort HDMI USB LAN Audio PD 3.0

This Thunderbolt™ 3 mini docking station by Delock connects to a computer with a Thunderbolt™ 3 port and provides multiple interfaces including DisplayPort, HDMI, USB, Gigabit LAN and audio. The DisplayPort output supports up to 8K displays while the HDMI output supports 4K; two 4K monitors can be driven simultaneously. The compact, sturdy housing makes the docking station suitable for travel and everyday mobile use.

Advantages

The device acts as an MST hub allowing extended desktop configurations for DisplayPort, supporting up to 4K 60 Hz per monitor. It includes a USB Power Delivery (USB PD 3.0) port that can supply up to 60 W to charge a connected laptop or tablet. Plug & Play setup requires no additional drivers or external power supply in normal operation. Built-in USB ports, a Gigabit Ethernet port and a headset jack provide essential connectivity in a compact form factor.

Suitable for

• Expanding laptop connectivity on business trips or remote work
• Connecting dual 4K monitors for extended desktop setups
• Charging a laptop or tablet while using external displays and network
• Adding wired Gigabit LAN and audio connections to ultrabooks

Key specifications

• Interface: Thunderbolt™ 3 (host)
• Video outputs: 1 × DisplayPort (up to 8K), 1 × HDMI (up to 4K); MST hub supporting up to 4K @ 60 Hz per monitor
• USB: 2 × USB ports (type A); Power Delivery: USB PD 3.0 up to 60 W
• Network: 1 × Gigabit Ethernet (10/100/1000 Mbit/s)
• Audio: Headset jack
• Compatibility: Windows 10, 11 and macOS 11.0 and later (host must support Thunderbolt 3)
• Colour: Black

How to use

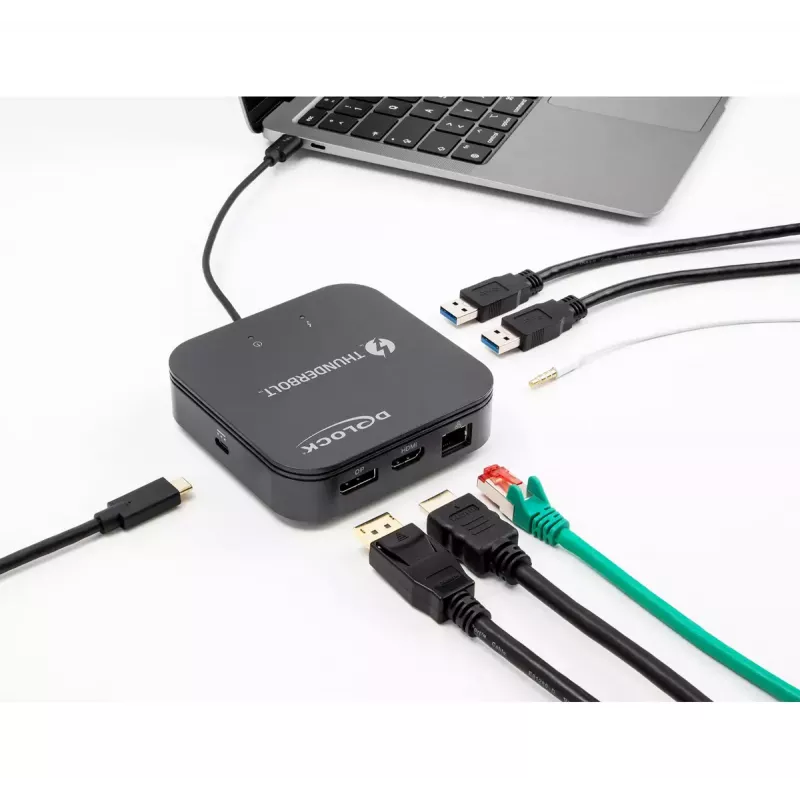

Connect the docking station to a computer's Thunderbolt™ 3 port using the integrated cable. Attach displays to the DisplayPort and HDMI outputs and connect peripherals to the USB ports. Plug in an Ethernet cable for wired network access and connect a headset to the audio jack if required. If you want to charge the host device while using the dock, connect the laptop power supply to the USB-C Power Delivery port on the docking station.

Recommendations

For dual 4K monitor setups, ensure the host Thunderbolt 3 port and the connected displays support the required resolutions and refresh rates. Use a compatible 60 W (or higher) USB-C power adapter when charging the host through the docking station to ensure stable power delivery.
