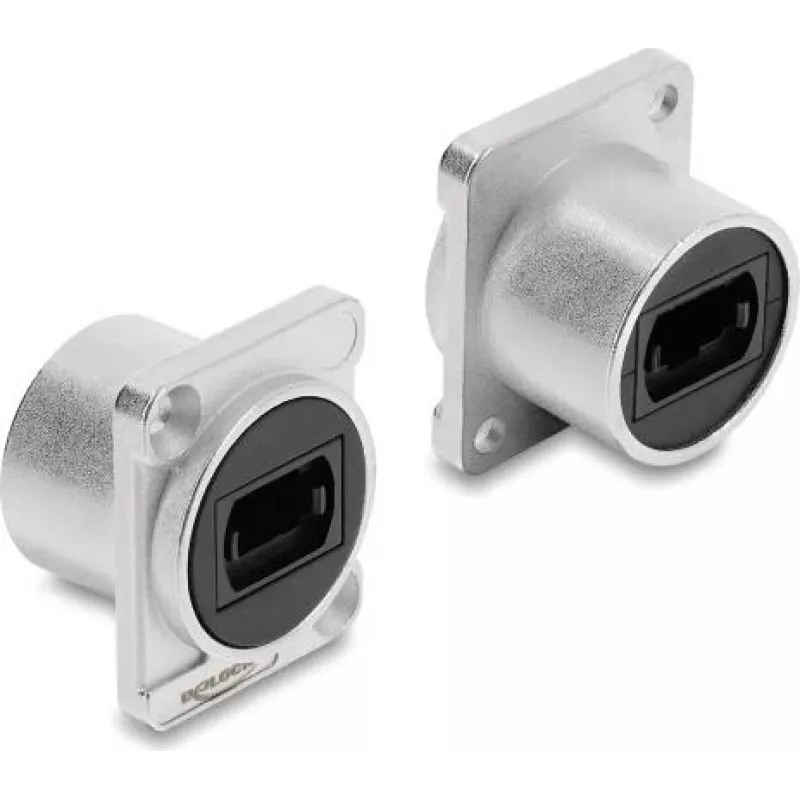

Delock D-Type Module MPO Female to MPO Female Silver

In a high-density data center, a technician needs to patch a fiber backbone quickly without disrupting active links. The Delock D-Type Module MPO Female to MPO Female Silver slots into a standard D-type panel cutout, providing a reliable pass-through for MPO/MTP trunks. Its zinc die-cast housing withstands frequent reconnections, while the silver finish blends with modern rack equipment.

Key specifications

• Connector 1: MPO Female
• Connector 2: MPO Female
• Module type: D-Type
• Housing material: Zinc die-cast
• Housing colour: Silver
• Mounting type: Panel mount
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -20 °C to 70 °C
• Mating cycles: > 500
• Front panel width: 26.2 mm
• Front panel height: 23.8 mm
• Depth: 23.8 mm
• RoHS compliant: Yes
• REACH compliant: Yes

Why choose it

This module eliminates the need for custom fiber routing or splicing when connecting MPO-based equipment. Its robust metal body protects the internal alignment sleeve, ensuring consistent optical performance even in vibration-prone environments. The female-to-female configuration acts as a simple coupler, extending existing MPO links or adapting panel layouts without polarity concerns.

Ideal use cases

• Data center fiber distribution frames
• Network installation patch panels
• Studio technology signal routing
• Telecom central offices and headends

Good to know

The module fits standard D-type panel openings and accepts both MPO and MTP connectors. Its zinc die-cast construction provides EMI shielding and mechanical stability. For best results, clean connector ferrules before mating and use dust caps when ports are unused.
