DeLOCK D-Sub HD 26 pin male with housing IP67 waterproof

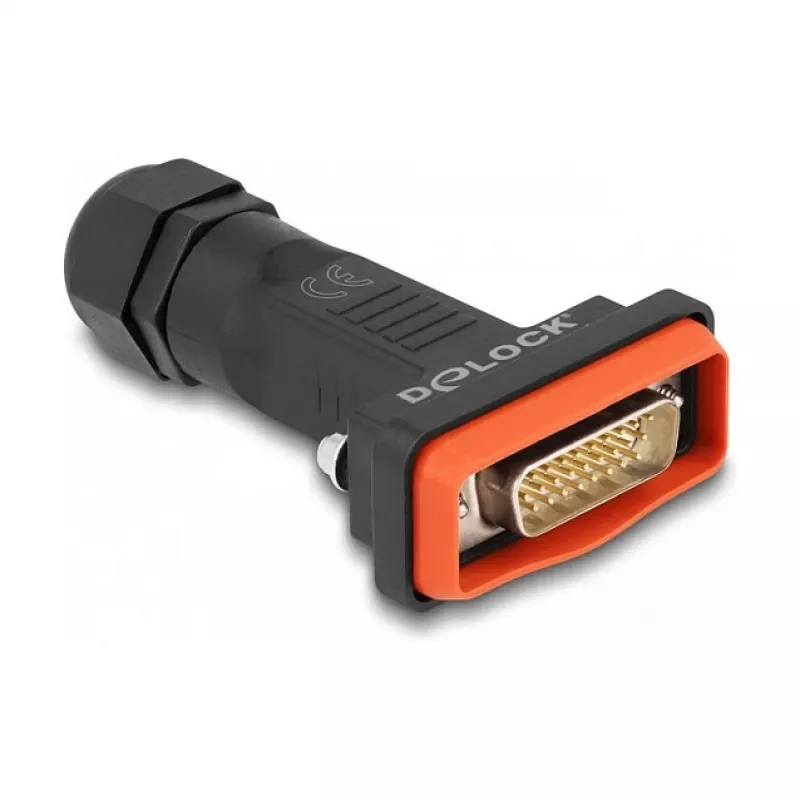

The DeLOCK D-Sub HD 26 pin male with housing IP67 waterproof is a 26-pin D-Sub male connector designed for solder assembly and cable assembly. The connector features a robust IP67-rated housing that protects cable conductors from moisture and dust, making it suitable for installation in industrial enclosures and switch cabinets. Available in black and orange, the connector supports reliable connections in demanding environments.

Advantages

The IP67 waterproof housing provides protection against ingress of dust and temporary immersion in water while the 26 soldering pins allow secure, custom cable terminations. The design permits straightforward soldering of wires to the D-Sub contacts and mechanical mounting of the soldered assembly into the protective housing for strain relief and environmental sealing.

Suitable for

• Custom cable assembly and repair
• Industrial control cabinets and switchgear
• Environments requiring dust and water protection (IP67)
• Applications needing 26‑pin D‑Sub HD signal connections

Key specifications

• Brand: DELOCK
• Model / MPN: 87808
• EAN: 4043619878086
• Connector type: D-Sub HD 26 pin (male)
• Contacts: 26 soldering pins
• Housing: IP67 waterproof
• Product colour: Black, Orange

How to use

Feed the prepared cable conductors through the housing, solder each conductor to the corresponding D-Sub contact according to your wiring diagram, and then mount the soldered connector assembly into the housing. Ensure the housing is properly closed and fastened to achieve the IP67 seal and provide strain relief for the cable.

Recommendations

Verify wiring assignments before soldering and use appropriate strain relief and cable gland sizes compatible with the housing to maintain IP67 protection. For long-term reliability in harsh environments, ensure solder joints are clean and insulated where necessary.
