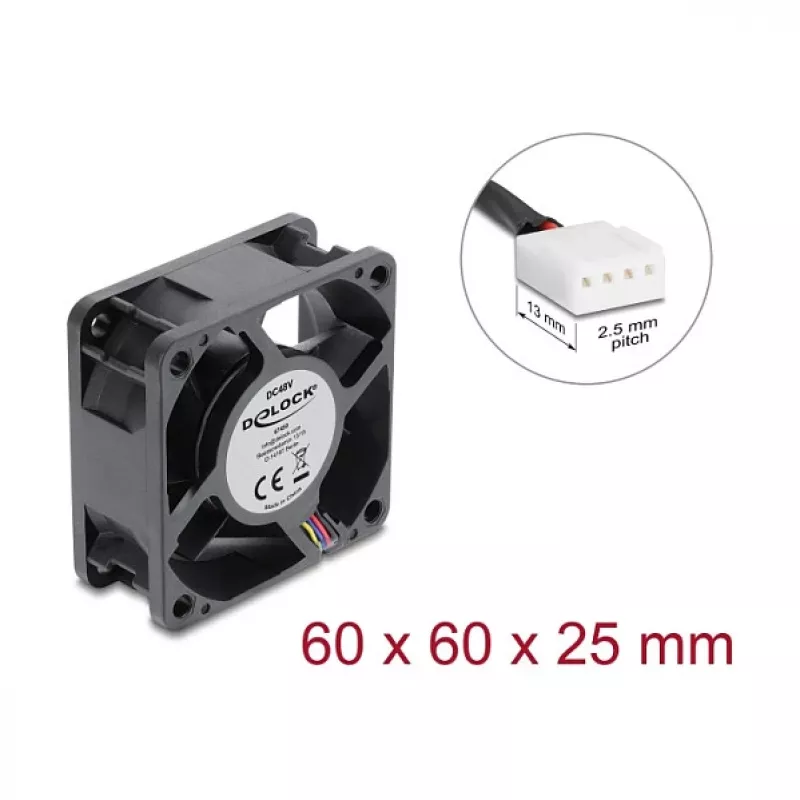

Delock Axial Fan 48 V DC, 60 x 60 x 25 mm with 4-pin PWM Fan Connector, Black

Axial fan engineered for dependable forced-air cooling in industrial electronics, 3D printers, and power supplies, operating at 48 V DC with precise PWM speed control. Its compact 60 x 60 x 25 mm frame and durable sleeve bearing deliver reliable continuous operation in demanding environments.

Advantages

The 4-pin PWM connector enables automatic speed regulation, balancing airflow and noise to match system demands. The sleeve bearing is rated for 30,000 hours at 40 °C, ensuring long service life. The black plastic housing is lightweight, corrosion-resistant, and easy to mount. A 30 cm cable provides flexibility in positioning within your system.

Suitable for

• Cooling industrial control cabinets and power electronics
• Ventilation in 3D printer electronics enclosures
• Replacing worn or noisy fans in 48V DC equipment
• Custom cooling solutions for embedded systems

Key specifications

• Type: Axial fan, 60 x 60 x 25 mm
• Voltage: 48 V DC
• Connector: 4-pin PWM
• Bearing: Sleeve bearing
• Speed: 3500 RPM (±10%)
• Airflow: 28.3 m³/h (16.6 CFM)
• Noise level: 28 dBA
• Rated current: 0.05 A
• Power consumption: 2.4 W
• Cable length: 30 cm
• Colour: Black
• Frame / blade material: Plastic
• Operating temperature: -10 °C to 70 °C
• Life expectancy: 30,000 hours at 40 °C
• PWM control: Yes
• Mounting hole spacing: 50 mm

Recommendations

Ensure your power supply provides a stable 48 V DC output. Connect the 4-pin PWM connector to a compatible motherboard, fan controller, or PWM hub to take advantage of automatic speed control. For optimal performance, mount the fan with the airflow direction aligned with your system's ventilation path.
