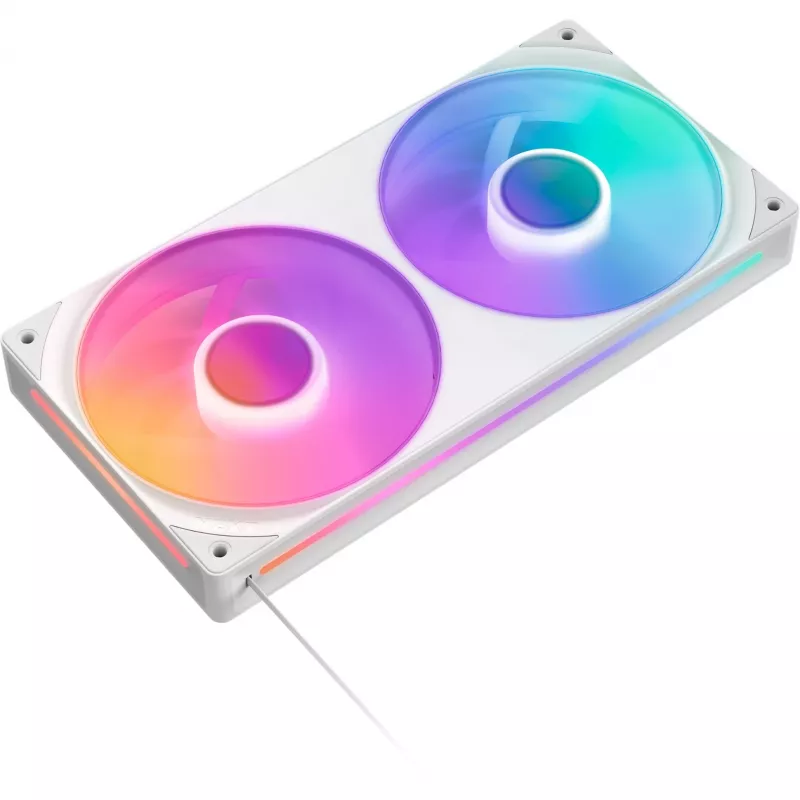

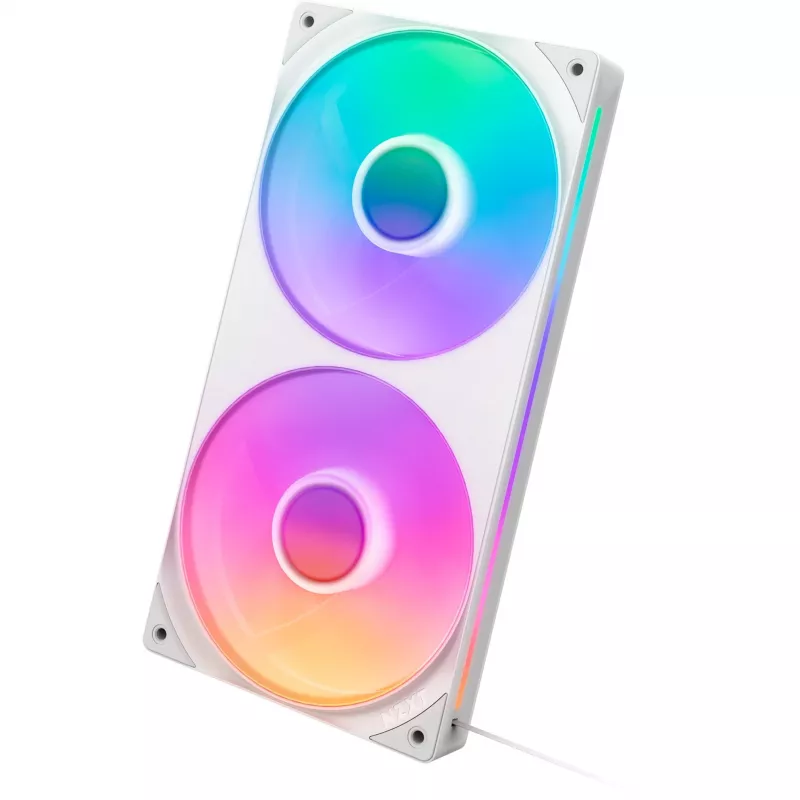

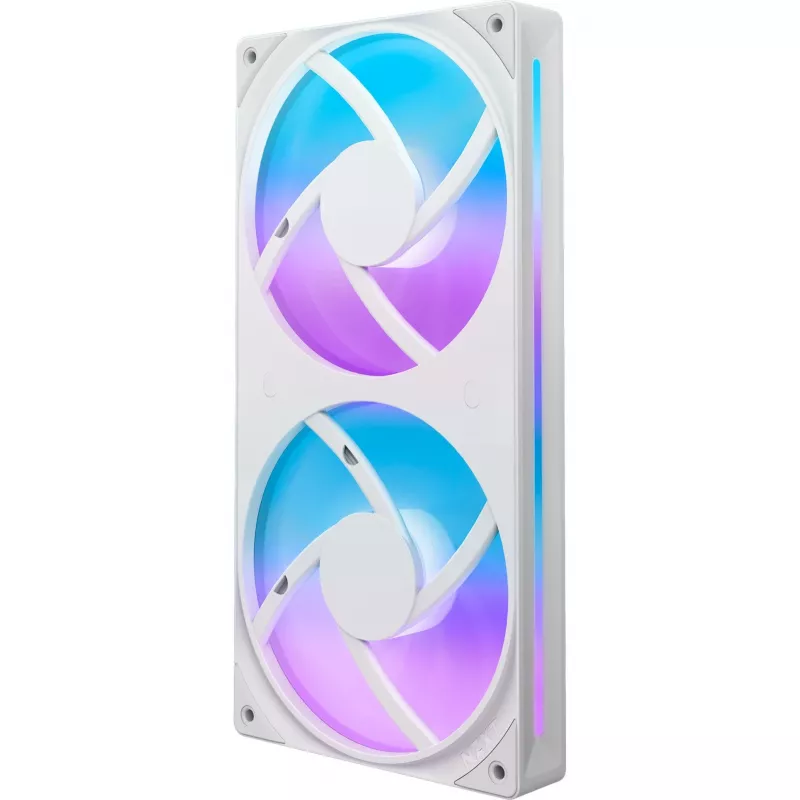

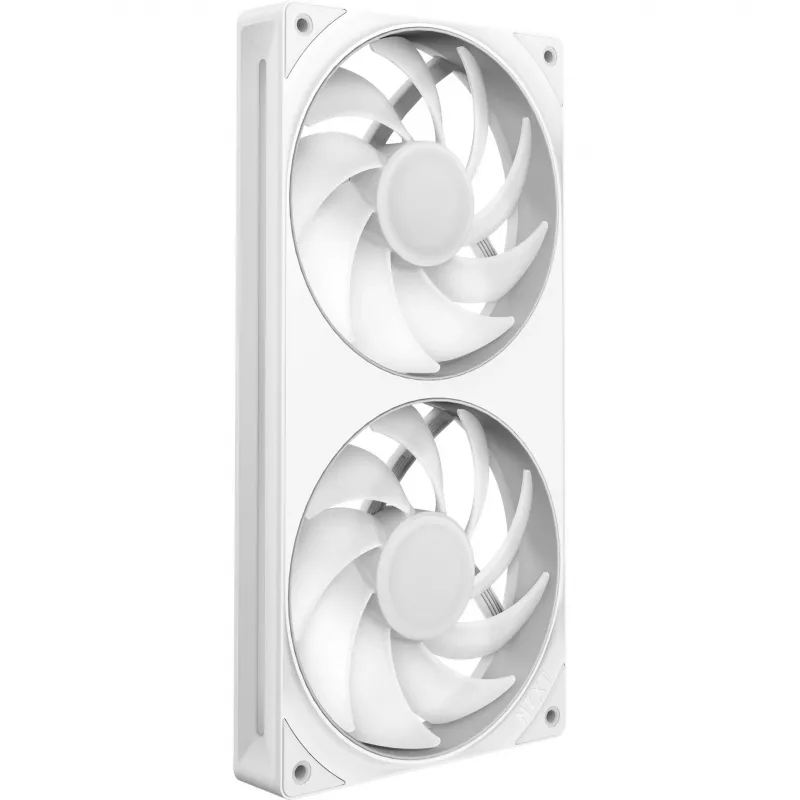

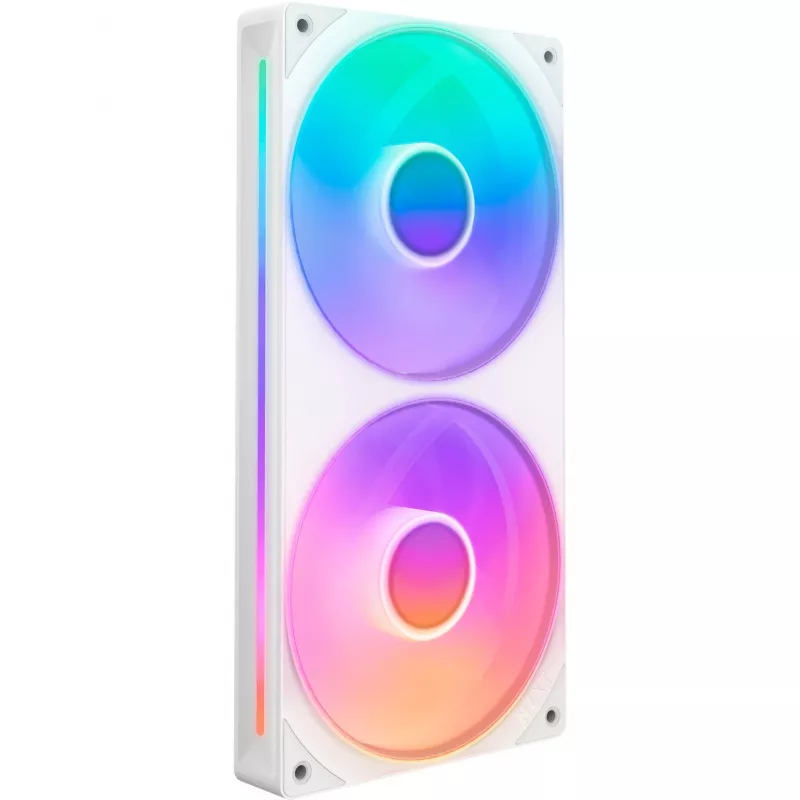

Fan NZXT RF-U24HF-W1 120mm 2400 RPM White

NZXT F Series RGB Core single-frame fans combine multiple integrated fans in a single housing to simplify installation and provide effective cooling, low noise, and addressable RGB lighting. The single-frame design reduces installation time and centralises cable management while maintaining airflow performance suitable for case and radiator use.

Advantages

The all-in-one single-frame unit streamlines setup and lighting control, requiring only one connection to an NZXT controller (sold separately) or to a motherboard 5V ARGB header using the included splitter cable. Blade geometry increases static pressure for improved airflow through tight spaces. Fluid dynamic bearings extend fan life and reduce operational noise. Anti-vibration rubber corners and Zero RPM Mode reduce noise during low-load operation, while per-hub aRGB LEDs shine through semi-translucent blades for consistent lighting.

Key specifications

• Form factor: Single-frame unit with integrated fans
• Lighting: Addressable RGB (8 aRGB LEDs per fan hub)
• Bearings: Fluid dynamic bearings
• Control: PWM speed control; NZXT CAM software or motherboard 5V ARGB header
• Connectivity: Single cable to NZXT controller (sold separately) or included splitter for 5V ARGB header
• Noise reduction: Anti-vibration rubber corners; Zero RPM Mode
• Durability: Rated for approximately 60,000 hours

How to use

Install the single-frame fan assembly in your case or on a radiator using the supplied mounting screws; align the frame with the mounting points and secure each corner. Connect the unit to an NZXT controller for full lighting and speed control via NZXT CAM software, or use the included splitter cable to connect directly to a motherboard 5V ARGB header for lighting and a fan PWM header for speed control. Configure PWM settings and lighting profiles in NZXT CAM or your motherboard software as needed. When thermal load is low, Zero RPM Mode will stop the fans to reduce noise if supported and enabled.
