DeLOCK Adapter M.2 Key B+M male to CFexpress Slot, M.2, CFexpress B, CF

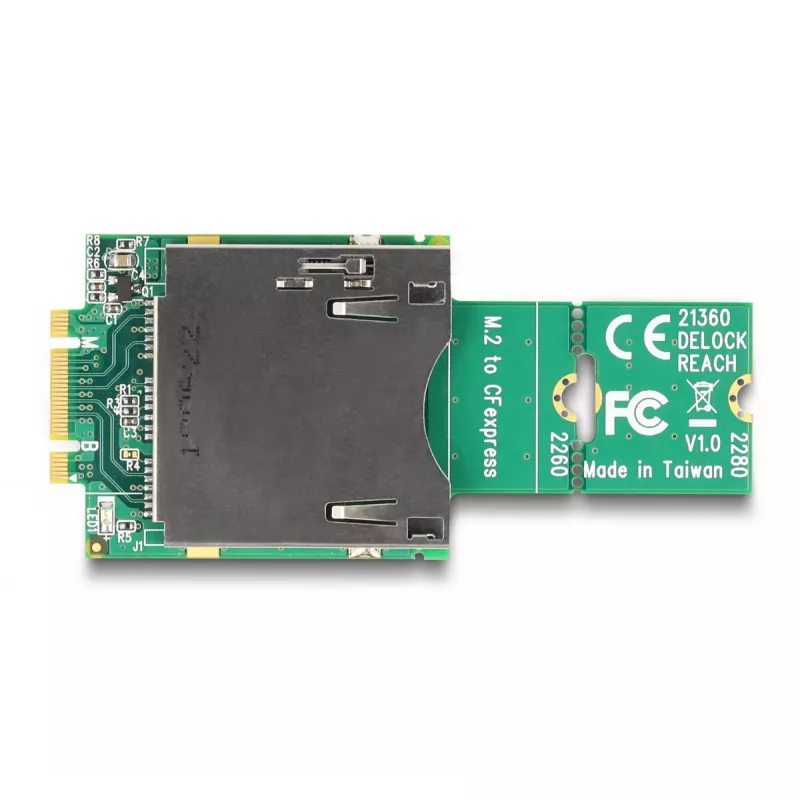

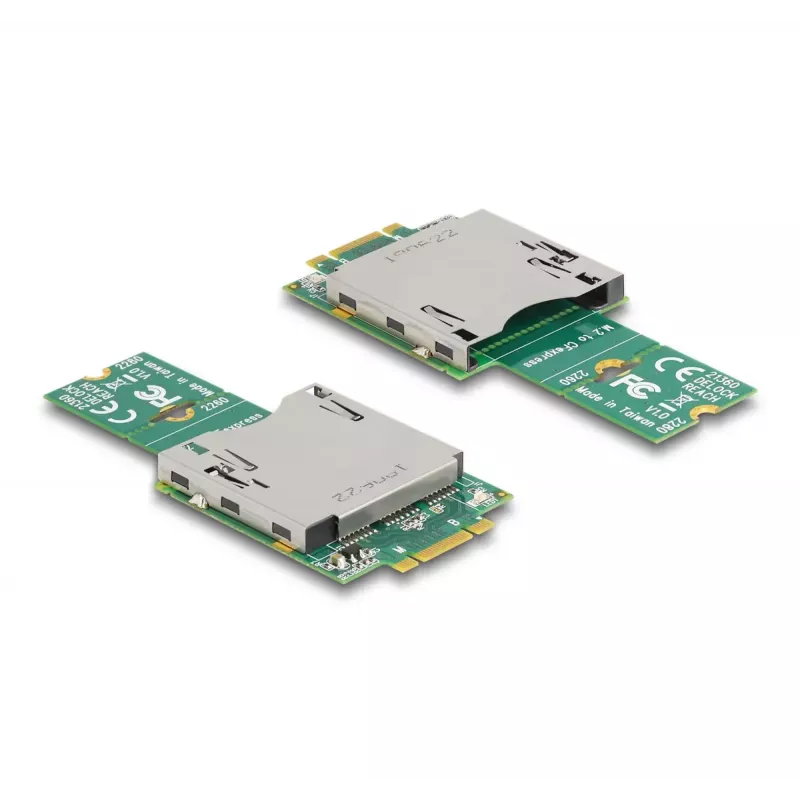

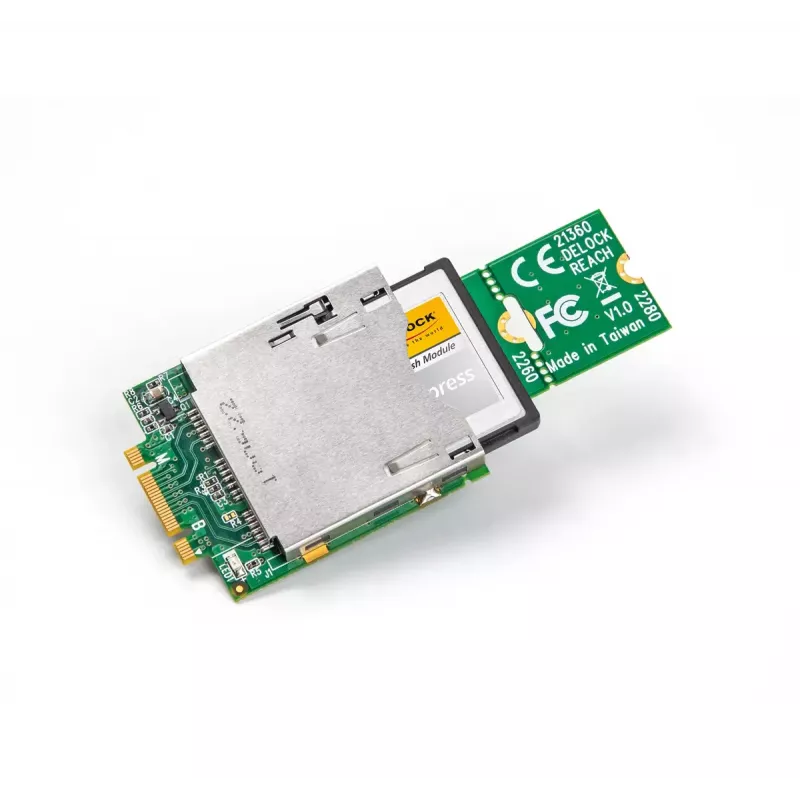

This adapter by Delock connects a CFexpress B memory card to an M.2 Key B+M socket. It provides a male M.2 interface for use with M.2 slots and can be shortened from 80 mm to 60 mm at the predetermined breaking point to fit different installation spaces. The adapter is intended for internal installation in systems that support M.2 and CFexpress formats and is compatible with common operating systems such as Windows and Linux.

Advantages

The DeLOCK adapter offers a compact internal solution to use CFexpress B cards in M.2 Key B+M slots. Its removable section enables flexible length adjustment for tight mounting situations, and the male M.2 connector ensures direct compatibility with standard M.2 sockets without additional cables or converters.

Suitable for

• Connecting CFexpress B memory cards to motherboards or expansion slots with M.2 Key B+M
• Internal installations in PCs, workstations, or embedded systems
• Environments where a shortened M.2 module (60 mm) is required for space constraints

Key specifications

• Brand: DELOCK
• Model / MPN: 21360
• EAN: 4043619213603
• Interface: M.2 Key B+M (male) to CFexpress B slot
• Form factor: internal M.2 adapter
• Adjustable length: 80 mm with a predetermined breaking point to shorten to 60 mm
• Compatibility: CFexpress B cards; works with common OS such as Windows and Linux
• Internal installation: Yes

How to use

Insert the adapter's male M.2 connector into a compatible M.2 Key B+M socket on the motherboard or expansion card. If required by the installation space, shorten the adapter at the predetermined breaking point from 80 mm to 60 mm before insertion. Slide the CFexpress B card into the CFexpress slot on the adapter until it is seated securely. Secure the assembly according to the host device's M.2 mounting method and power on the system to allow the operating system to detect the CFexpress card.

Recommendations

Ensure the host M.2 slot supports the CFexpress B form factor and follow anti-static precautions during installation. Do not force the adapter into an incompatible socket and verify system BIOS/firmware support for CFexpress devices if the card is not recognized.
