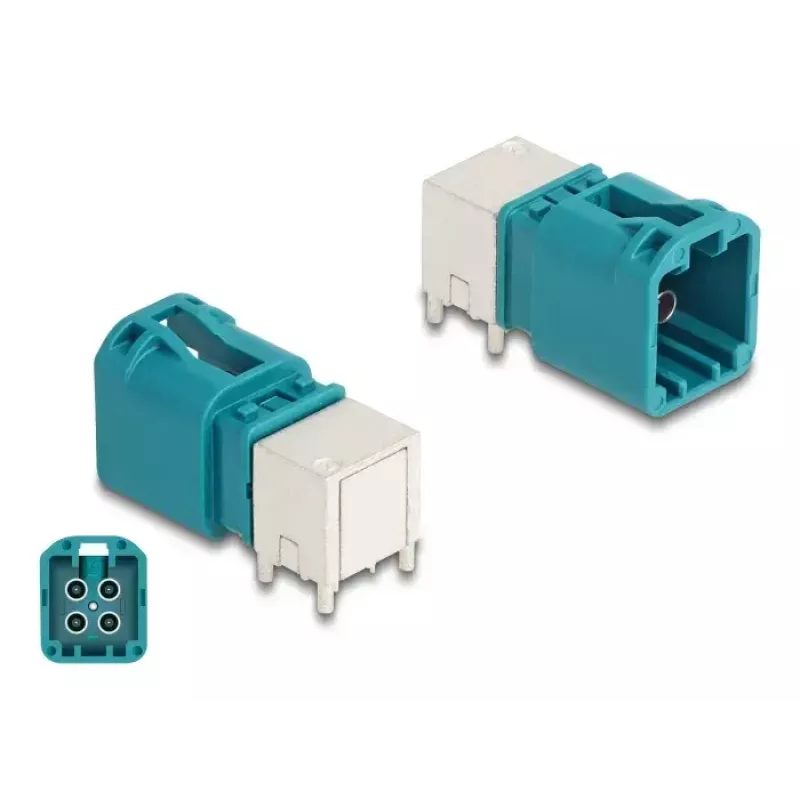

DeLOCK 90116 Mini FAKRA Z Coaxial Connector 50 Ω 1 pc

The DeLOCK 90116 Mini FAKRA Z coaxial connector is designed for 50 Ω applications in automotive and telecommunications environments. With compact dimensions (width 8 mm, depth 21 mm, height 10 mm) it enables reliable signal transmission while saving installation space compared to standard FAKRA connectors.

Advantages

Due to its reduced housing size the Mini FAKRA Z connector achieves up to 80% space saving versus standard FAKRA connectors while maintaining higher data rates and a 50 Ω impedance. The compact form factor allows placement of multiple modules in confined spaces typical for vehicle electronics and telecommunication equipment.

Suitable for

Key specifications

How to use

Install the Mini FAKRA Z connector according to the vehicle or equipment manufacturer's RF connection instructions. Ensure correct mating with the corresponding FAKRA counterpart, maintain the 50 Ω transmission line, and secure the connector mechanically to prevent stress on the cable and contact. Verify continuity and signal integrity after installation.

Recommendations

Use this Mini FAKRA Z connector where reduced connector footprint and reliable 50 Ω RF performance are required; keep mating cycles and environmental specifications in line with the equipment manufacturer's guidance.
