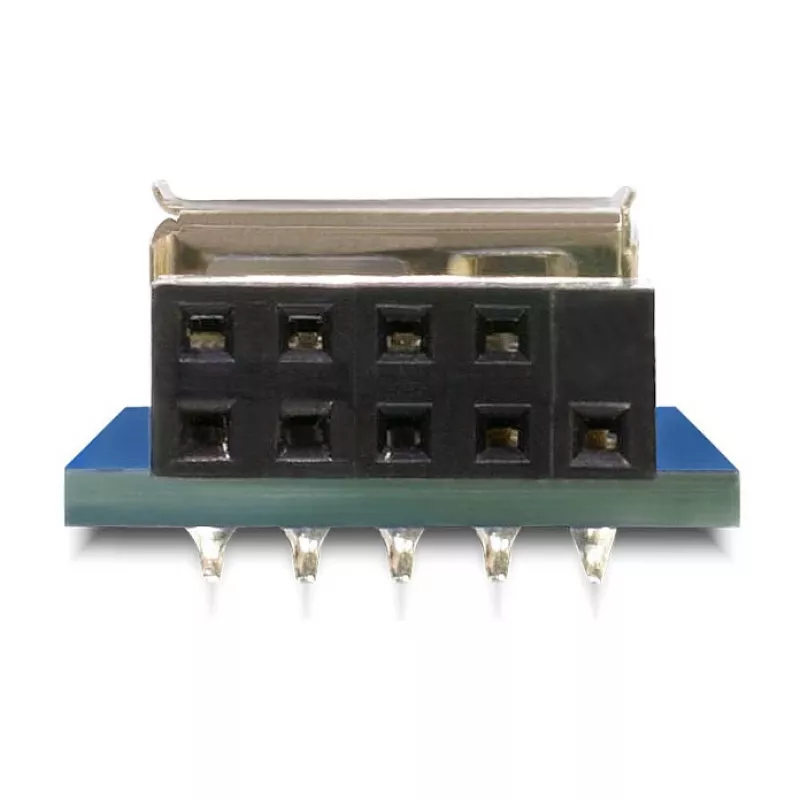

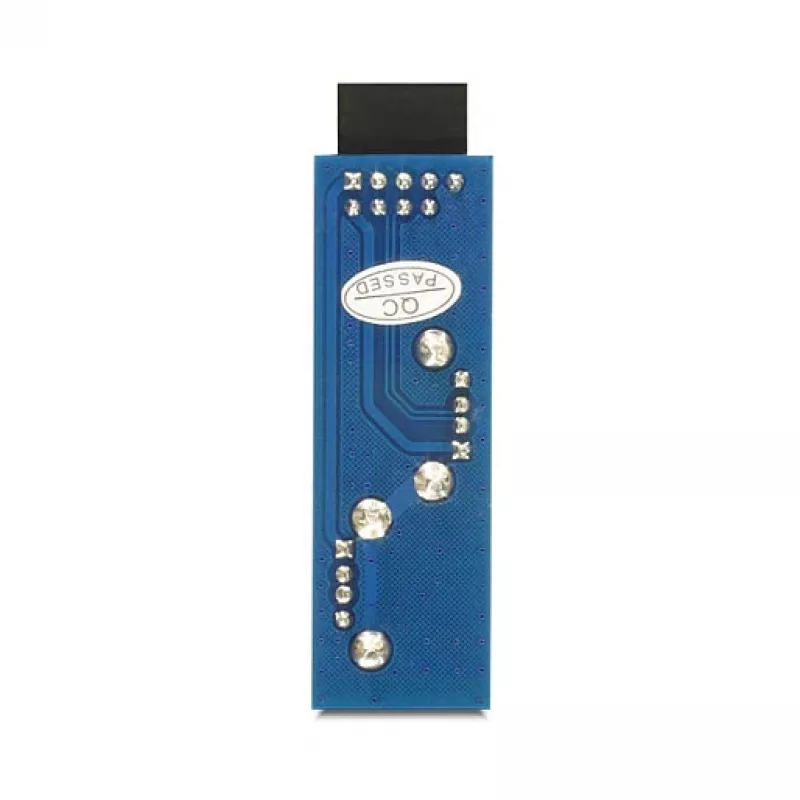

DeLOCK 9-pin 2.54 mm USB 2.0 Connector 41820

This DeLOCK 9-pin 2.54 mm USB 2.0 connector (model 41820) plugs into a free 9-pin USB header on a motherboard to add two internal USB-A ports. The adapter provides two USB 2.0-A receptacles aligned left and right depending on the motherboard layout and is available in black, blue and silver.

Advantages

The adapter uses a standard 9-pin 2.54 mm connector for direct connection to motherboard USB headers and supplies two USB 2.0-A ports for connecting devices such as USB flash drives or USB WLAN adapters. Its compact design allows internal expansion without occupying external I/O slots and the product is compatible with USB 2.0 specifications.

Suitable for

• Adding two internal USB-A ports to a desktop PC
• Connecting USB flash drives or external USB WLAN sticks internally
• Systems with an available 9-pin (2.54 mm) motherboard USB header

Key specifications

• Connector 1: 1 x 9-pin 2.54 mm (motherboard USB header)
• Connector 2: 2 x USB 2.0-A
• Standards: USB 2.0
• Colours: Black, Blue, Silver
• Manufacturer: DELOCK, MPN: 41820, EAN: 4043619418206

How to use

Power off the PC and open the case. Locate a free 9-pin (2.54 mm) USB header on the motherboard, align the connector with the header pinout and gently press it into place. Close the case, power on the system and the two internal USB-A ports will be available for use according to the motherboard's port alignment.

Recommendations

Ensure the motherboard header pinout matches the adapter's 9-pin layout before installation and avoid forcing the connector. Use the internal ports for USB 2.0 devices; high-speed USB 3.x devices will be limited to USB 2.0 transfer rates.
