DeLOCK 10 inch Patch Panel 8 port Cat.6A 1U black

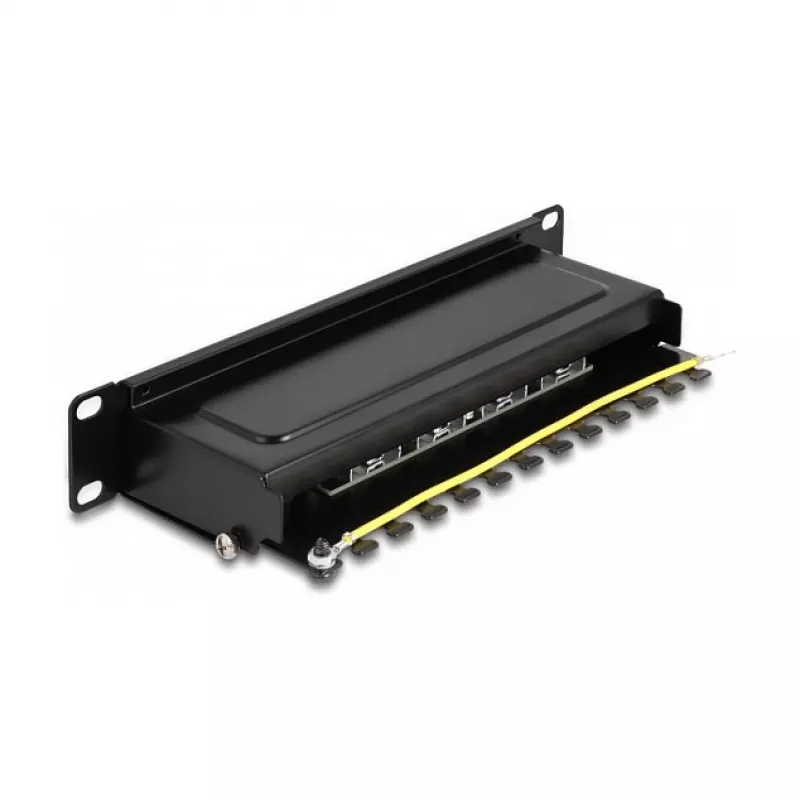

The DeLOCK 10" Patch Panel 8 port Cat.6A 1U black is a metal 1U rack-mounted patch panel designed for structured network installations. It provides eight Cat6A ports and is intended for installation in a 10" cabinet, offering a compact solution for cable termination and organization with dimensions of 254 mm (width) × 100 mm (height) × 44.5 mm (depth).

Advantages

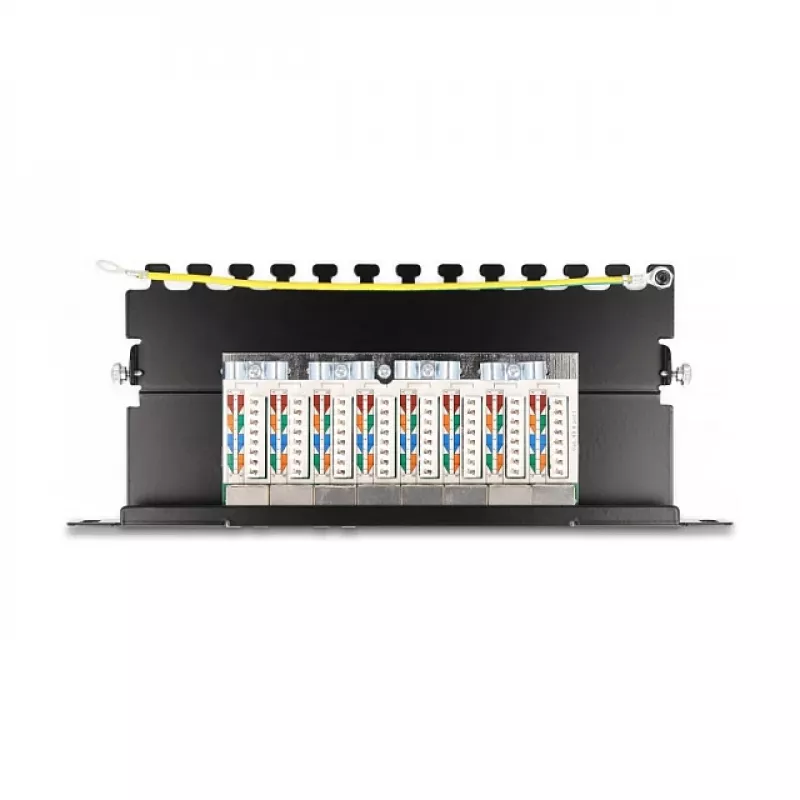

The patch panel supports Cat.6A cabling for high-performance networks and accommodates up to eight network cables terminated on LSA blocks. Its metal construction ensures durability and stable rack mounting in a 1U space. The compact dimensions allow efficient use of cabinet space and straightforward cable management when used with a punch down tool.

Suitable for

• Small to medium-sized network racks and 10" cabinets
• Cat.6A structured cabling installations
• Patch panel terminations and organised cable distribution

Key specifications

• Brand: DELOCK
• Model: 66872
• EAN: 4043619668724
• Ports: 8 × Cat.6A
• Rack unit: 1U (for 10" cabinet)
• Material: Metal
• Colour: Black
• Dimensions: 254 mm × 100 mm × 44.5 mm

How to use

Mount the patch panel into a compatible 10" cabinet using appropriate rack screws for a 1U position. Terminate each Cat.6A cable onto the LSA blocks with a punch down tool, following standard wiring schemes (T568A/T568B) as required. After termination, route and secure the cables to maintain neat cable management and avoid strain on the connections.

Recommendations

Use a suitable punch down tool for LSA termination and verify wiring continuity with a cable tester after installation. Ensure the cabinet provides adequate ventilation and grounding for reliable long-term operation.
